| Binks MACH 1 PCX HVLP SPRAY GUN (For Plural Component Catalyst Injection) |
| |
 |
| |
INTRODUCTION

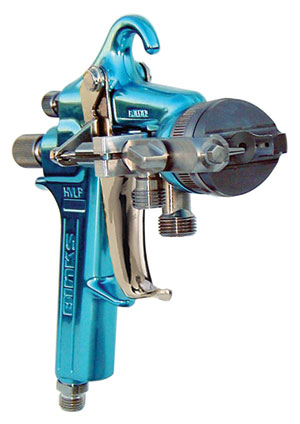

The Binks MACH PLURAL COMPONENT 1PCX HVLP Gun is the lightest top quality high performance spray gun available today. You only have to pick it up to feel the difference. It's superbly balanced forged aluminum body offers the operator extra comfort and control. All of the gun's components are machined and finished to exacting tolerances and only the best materials are used, ensuring years of peak efficiency.
The MACH 1PCX HVLP Gun is a conventional style airspray gun with special nozzles and modifications that allow it to operate at high transfer efficiencies in compliance with the "California South Coast Air Quality Management District" regulations as a "High Volume, Low Pressure airspray gun.

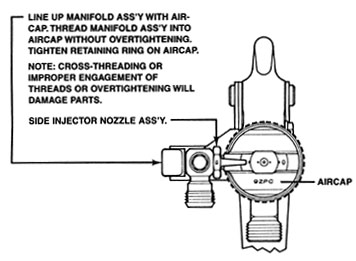

A specially designed catalyst injector device is integrated to the HVLP Gun to inject Methyl Ethyl Ketone Peroxide or other catalyst into the stream of coating material. The catalyst is injected immediately after the coating exits the fluid nozzle for even distribution across the pattern.
The air inlet passage in the gun body incorporates a venturi which limits airflow. High pressure airflow is converted to low pressure at this point. Special air and fluid nozzles enable the gun to atomize fluid at low air pressures and velocities, creating the "soft spray" effect for high transfer efficiencies. To obtain optimum performance from your new MACH 1PCX HVLP Spray Gun, read all instructions carefully.
1. Lightweight Air Nozzle
2. Fluid Inlet 3/8 NPS(m) 2A. Catalyst Inlet 1/4 NPS(m)
3. Extra Smooth Trigger Action
4. Stainless Steel Nozzle and Needle
5. Side Port Control
6. Fluid Control
7. Forged Aluminum Body
8. Air Inlet 1/4 NPS(m)
9. Catalyst Valve Assembly 316 SS |
| |
 |
| |
 |
READ THE MANUAL Before operating finishingequipment, read and understand all safety, operation and maintenance information provided in the operation manual. |
 |
INSPECT THE EQUIPMENT DAILY Inspect the equipment for worn or broken partson a daily basis. Do not operate the equipment if you are uncertain about its condition. |
 |
WEAR SAFETY GLASSES Failure to wear safety glasses with side shields
could result in serious eye injury or blindness. |
 |
NEVER MODIFY THE EQUIPMENT Do not modify the equipment unless the manufacturer provides written approval. |
 |
DE-ENERGIZE, DEPRESSURIZE, DISCONNECT AND LOCK OUT ALL POWER SOURCES DURING MAINTENANCE Failure to De-energize, disconnect and lock out
all power supplies before performing equipment
maintenance could cause serious injury or death. |
 |
KNOW WHERE AND HOW TO SHUT OFF THE EQUIPMENT IN CASE OF AN EMERGENCY |
 |
OPERATOR TRAINING All personnel must be trained before operating
finishing equipment. |
 |
PRESSURE RELIEF PROCEDURE Always follow the pressure relief procedure in the equipment instruction manual. |
 |
EQUIPMENT MISUSE HAZARD Equipment misuse can cause the equipment to rupture, malfunction, or start unexpectedly and
result in serious injury. |
 |
NOISE HAZARD You may be injured by loud noise. Hearing protection may be required when using this equipment. |
 |
KEEP EQUIPMENT GUARDS IN PLACE Do not operate the equipment if the safety
devices have been removed. |
 |
STATIC CHARGE Fluid may develop a static charge that must be dissipated through proper grounding of the equipment, objects to be sprayed and all other electrically conductive objects in the dispensing area. Improper grounding or sparks can cause a hazardous condition and result in fire, explosion or electric shock and other serious injury. |
 |
PROJECTILE HAZARD You may be injured by venting liquids or gases
that are released under pressure, or flying debris. |
 |
FIRE AND EXPLOSION HAZARD Never use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or fluids containing such solvents in equipment with aluminum wetted parts. Such use could result in a serious chemical reaction, with the possibility of explosion. Consult your fluid suppliers to ensure that the fluids being used are
compatible with aluminum parts. |
 |
PINCH POINT HAZARD Moving parts can crush and cut. Pinch points are
basically any areas where there are moving parts. |
 |
TOXIC FLUID & FUMES Hazardous fluid or toxic fumes can cause serious injury or death if splashed in the eyes or on the skin, inhaled, injected or swallowed. LEARN and KNOW the specific hazards of the fluids you are using. |
 |
AUTOMATIC EQUIPMENT Automatic equipment may start suddenly without
warning. |
 |
WEAR RESPIRATOR Toxic fumes can cause serious injury or death if
inhaled. Wear a respirator as recommended by
the fluid and solvent manufacturer’s Material
Safety Data Sheet. |
|
| |
| OPERATION AND MAINTENANCE INSTRUCTIONS FOR THE MACH 1 PCX HVLP SPRAY GUN |
| |
Your new MACH 1PCX HVLP Spray Gun is exceptionally rugged in construction and is built to stand up under hard , continuous use. However, like any other fine precision instrument, its most efficient operation depends on a knowledge of its construction, operation and maintenance. Properly handled and cared for, it will produce uniform finishing and mixing results long after other spray guns have worn out.
IMPORTANT: Before removing any components from the spray gun, shut off the air and material presssure, and bleed off excess material.
BINKS OIL AND WATER EXTRACTOR IS IMPORTANT
Achieving a fine spray finish without the use of a good oil and water extractor is virtually impossible.
A Binks Regulator/Extractor serves a double purpose. It eliminates blistering and spotting by keeping air free of oil and water, and it gives precise air pressure control at the gun. An extractor with a minimum 1/2" pipe inlet is recommended.

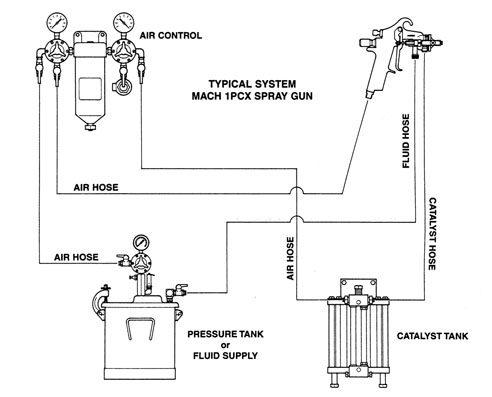

SET-UP FOR SPRAYING
CONNECTING GUN TO THE AIR HOSE
Air should be supplied by 5/16" air hose (71-1203) typical, with a 1/4" NPS(f) connection at the gun end. Hose lengths in excess of 50 ft, use 3/8" hose (71-1356) typical.
CONNECTING THE GUN TO THE MATERIAL HOSE
Fluid should be supplied by 3/8" fluid hose with 3/8" NPS(f) connection at the gun end. A 1/4" hose is recommended for use with low viscosity materials. Fluid hoses of different composition are available for special fluids.
CONNECTING THE GUN TO THE CATALYST HOSE
The catalyst should be supplied by 1/8" catalyst hose (102-3027) typical, with a 316 SS l/4" NPS(f) connections at both ends. |
| |
 |
| |
| Binks MACH 1 PCX HVLP SPRAY GUN |
| |
OPERATING THE MACH
CONTROLLING THE FAN SPRAY
The fan pattern is controlled by means of a side port control. Turning this control clockwise until it is closed will give a round spray, turning it counter-clockwise will widen the spray into a fan shape. The air cap cannot be rotated (See drawing below).
CONTROLLING THE MATERIAL FLOW
When used with a pressure tank, an increase in air pressure will increase the rate of flow. The correct fluid nozzle size should be selected for the correct material flow rate. It is not recommended to use the fluid control knob (item 13), to control resin flow because the catalyst flow will remain constant, causing over cat-alyzation of the resin.
NOTE: Feathering and changing the needle valve opening will affect the ratio of catalyst: resin and gel.
NOZZLE TYPES
Spray patterns are determined by nozzle selection and vary somewhat depending on size, angle, nozzle orifice and output.
TROUBLESHOOTING FAULTY SPRAY
Faulty spray is often caused by:
1. Foreign material in the air and/or fluid passages.
2. Viscosity too high for spraying, air supply or pressure inadequate.
3. Worn or damaged nozzle surfaces.
4. Gellation in gun head air passages.
5. Loose fluid nozzle.
6. Insufficient material available, check supply and replenish if necessary.
NOTE: Care must be exercised when cleaning with metal instruments. These parts are carefully machined and any damage to them will cause faulty spray patterns. If either the air nozzle or fluid nozzle are damaged, these parts must be replaced before perfect spray patterns can be obtained.
AIR LEAKS
1. Leaky Spindle (9). Inspect, clean or replace.
2. O-Rings (6) missing or damaged. Inspect and replace.
3. Damaged seat surface in gun body. Replace.
UNMIXED RESIN
1. Clogged filter. Remove the manifold and clean debris from the filter screen.
2. Plugged manifold. Use 102-2658 manifold cleaner to unplug.
3. Insufficient catalyst pressure. Increase pressure.
4. Loose catalyst needle nuts. Readjust, tighten.
OVER CATALYZATION
1. Material Knob (13) has been closed to reduce the flow of resin. Readjust.
2. Fluid Nozzle (2) is partially clogged and is restricting the resin flow. Clean. |
| |
 |
| |
MAINTENANCE |
| |
TO REPLACE SPINDLE ASSEMBLY (Air Valve)
Remove the Fluid Control Knob (13), Spring (10) and Needle Assembly (12). Using an Allen Head Wrench, loosen the Housing (11) until it is finger tight. Reinsert Needle (12) and finish unscrewing Housing (11). Remove Items 6 thru 12 as one piece. Replace Spindle Ass'y (9) and reinsert items 6 thru 12, as one piece, back into gun and hand-tighten Housing (11). Next, remove Needle (12) and tighten Housing (11) with Allen Head Wrench. Reinsert Needle (12), Spring (10) and Fluid Control Knob (13).
NOTE: Springs must be replaced in the same order as they were removed from gun.
NOTE: If the instructions are not followed as described, Items 12 and 13 may drop into air passages.
TO REPLACE NEEDLE SEAL AND GLAND ADAPTER IN FLUID INLET
Remove Fluid Control Knob (13) and Spring (10) and pull out Needle Ass'y (12). Unscrew Packing Nut (25) and remove Spring (24) and Seal Backup (23). Using a No. 10 X 1 1/4" coarse thread wood screw (Binks Part No. 20-6536) or a small sheet metal screw, remove the Needle Seal (22) and Gland Adapter (21). Replace Gland Adapter (21) and Needle Seal (22). Reinsert Seal Backup (23), Spring (24) and screw on Packing Nut (25) a couple of turns so it fits loosely by hand. Reassemble Needle (12), Spring (10) and Material Valve Control Knob (13). Finally, tighten Packing Nut (25) until it bottoms out on Fluid Inlet (18).
ADJUSTMENT OF MATERIAL AND CATALYST NEEDLE
The needle assembly is adjustable for lengths by means of the needle, needle cap and needle locknut. These should be adjusted so that when the trigger assembly is in contact with the spindle assembly, a movement of the spindle assembly of 1/16" minimum is required before the material needle moves. Under no circumstances should the material valve open before the air valve or catalyst valve assembly. The correct timing adjustment is: air catalyst-resin. The timing is correctly set at the factory. However, repositioning the catalyst needle nuts will affect the timing.
GUN CLEANING
Submerging in solvents is a poor practice because of the solvent residue that may cling to interior air passages. Clean solvent must be used if the gun is to be submerged.
The best practice is to remove the air nozzle and to flush solvent through the fluid passages. All nozzles may be placed in solvent for washing. The nozzle orifice and angle passageways are critical. Always wsh and rinse with a clean solvent to prevent residue accumulation in the minute holes. If using metal instruments for cleaning, use extreme caution. DO NOT gouge or distort surfaces. Use the brush supplied with the gun.
NOTE: Some air quality agencies prohibit the spraying of solvent into the atmosphere when flushing spray guns. In some areas spray guns must be cleaned in a completely enclosed gun cleaning device wiiich prevents solvent vapors from escaping to the atmosphere. Consult with your local Binks distributor or contact the closest Binks branch if you are not sure of requirements in your area. |
| |
| OPTIONS INJECTOR ASSY |
INJECTOR I.D. |
IDENTIFICATION |
| 102-2851 |
.013 |
13 |
| 102-2852 |
.016 |
16 |
| 102-2853 |
.020 |
20 |
|
| |
| ACCESSORIES |
| |
| 102-2658 |
Manifold cleaner |
| 54-3918 |
Gun wrench |
| 102-2656 |
Large O-Ring installation tool |
| 102-2657 |
Small O-Ring installation tool |
|
| |
GENERAL SPRAY INSTRUCTIONS
To reduce overspray and obtain maximum efficiency, always spray with the lowest possible fluid/air pressure. This will produce an acceptable spray pattern. Excessive atomizing air pressures can increase overspray, reduce transfer efficiency, and with some materials, atomizing air pressures should not exceed 10 PSI. See the table in the air pressure recommendation and regulatory note on page 8. For best results, use only enough presure for desired flow (1.5-2 pounds.). Higher fluid pressure may be required for heavy bodied materials, low fluid pressures will produce a narrower than normal spray pattern.

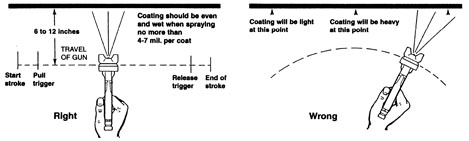

SPRAY TECHNIQUE
The first requirement for a good resultant finish is the proper handling of the gun. The gun should be held perpendicular to the surface being covered and moved parallel with it. The distance between the gun and surface should be 12 to 14 inches, depending on material and atomizing pressure. The material deposited should always be even and wet. Lap each stroke over the preceeding stroke to obtain a uniform finish. |
| |
 |
| |
| FLUID NOZZLE DESCRIPTION |
FLUID NOZZLE PART NO. |
FLUID NOZZLE ORIFICE SIZE |
COMPATIBLE AIR CAPS DESCRIPTION AND PART NO. |
COMPATIBLE NEEDLE PART NO. |
| 90 |
45-9000 |
(.030 DIA.) 0.6mm |
91 PC, 102-2682 & 92PC, 102-2681 |
54-3941 |
| 90F |
45-9002 |
(.030 DIA.) 0.6mm |
91 PC, 102-2682 & 92PC, 102-2681 |
54-4022 |
| 91 |
45-9100 |
(.040 DIA.) 1.0mm |
91 PC, 102-2682 & 92PC, 102-2681 |
54-3941 |
| 91F |
45-9102 |
(.040 DIA.) 1.0mm |
91 PC, 102-2682 & 92PC, 102-2681 |
54-4023 |
| 92 |
45-9200 |
(.046 DIA.) 1.2mm |
92PC, 102-2681 |
54-3941 |
| 92F |
45-9202 |
(.046 DIA.) 1.2mm |
92PC, 102-2681 |
54-4024 |
| 94 |
45-9400 |
(.055 DIA.) 1.4mm |
95PC, 102-2683 |
54-3941 |
| 94F |
45-9402 |
(.055 DIA.) 1.4mm |
95PC, 102-2683 |
54-4026 |
| 905 |
45-9050 |
(.089 DIA.) 2.3mm |
905PC, 102-2684 |
54-3941 |
|
| |
AIR PRESSURE REQUIREMENTS W/92PC AIR NOZZLE |
| |
| |
Side Port Control |
|
| Atomizing PSI |
Gun Inlet PSI |
Regulator PSI* |
Nozzle Atomizing Air Flow (SCFM) |
| 3 |
06.0 |
08.0 |
4.5 |
| 5 |
08.5 |
10.0 |
6.0 |
| 9 |
13.5 |
17.5 |
7.5 |
| 10 |
15.0 |
19.0 |
8.0 |
|
| |
 |
| |

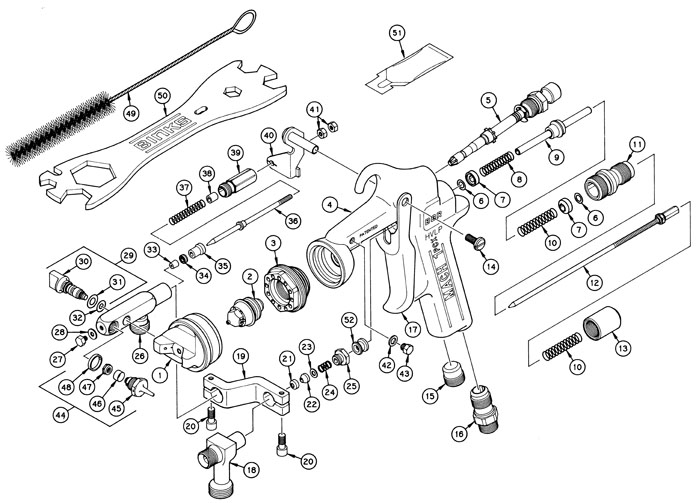

| PARTS LIST (When ordering, please specify PART NO.) |
| |
| ITEM NO. |
PART NO. |
DESCRIPTION |
QTY. |
ITEM NO. |
PART NO. |
DESCRIPTION |
QTY |
| 1 |
* |
AIR CAP ASSEMBLY |
1 |
31 |
20-6525B |
O-RING |
1 |
| 2 |
* |
FLUID NOZZLE |
1 |
32 |
20-6524H |
O-RING |
1 |
| 3 |
54-3543 |
HEAD INSERT . |
1 |
33 |
102-2715 |
CATALYST SEAT |
1 |
| 4 |
54-3922 |
MACH 1 GUN BODY |
1 |
34 |
102-647 |
"U" CUP SEAL |
1 |
| 5 |
54-3946 |
SIDE PORT CONTROL ASS'Y |
1 |
35 |
102-2716 |
FRONT BUSHING |
1 |
| 6 |
20-4615 |
O-RING |
2 |
36 |
102-2722 |
NEEDLE ASSEMBLY |
1 |
| 7 |
54-3515 |
HOUSING |
2 |
37 |
102-2717 |
SPRING |
1 |
| 8 |
54-3520 |
SPRING, Yellow |
1 |
38 |
102-2718 |
REAR BUSHING |
1 |
| 9 |
54-3512 |
SPINDLE ASSEMBLY |
1 |
39 |
102-2719 |
SPRING HOUSING |
1 |
| 10 |
54-3518 |
SPRING, Blue |
1 |
40 |
102-483 |
LEVER ASSEMBLY |
1 |
| 11 |
54-3541 |
HOUSING |
1 |
41 |
102-2728 |
NUT |
2 |
| 12 |
* |
HVLP NEEDLE ASS'Y |
1 |
42 |
54-3925 |
GASKET |
1 |
| 13 |
54-3606 |
FLUID CONTROL KNOB |
1 |
43 |
54-3928 |
PLUG, 10-32 X 3/16 Hex Hd |
1 |
| 14 |
82-126 |
TRIGGER SCREW |
1 |
44 |
▲ |
INJECTOR ASSEMBLY |
1 |
| 15 |
54-3504 |
PLUG |
1 |
45 |
▲ |
INJECTOR (part of item 44) |
1 |
| 16 |
54-768 |
AIR CONNECTION |
1 |
46 |
102-2729B |
FILTER (part of item 44) |
1 |
| 17 |
54-3547 |
TRIGGER |
1 |
47 |
102-2876 |
FILTER RETAINER |
1 |
| 18 |
54-3533 |
FLUID INLET |
1 |
48 |
102-2871 ■ |
SEAL (part of item 44) |
1 |
| 19 |
102-2709 |
"SM BRACKET |
1 |
49 |
82-469 |
GUN BRUSH |
1 |
| 20 |
20-2652 |
SCREW, 8-32 X 3/8" Soc. Hd |
2 |
50 |
54-3918 |
WRENCH |
1 |
| 21 |
54-4264● |
GLAND ADAPTER |
1 |
51 |
54-3871 |
GUNNERS MATE |
1 |
| 22 |
54-4265● |
NEEDLE SEAL |
1 |
52 |
54-3513 |
VALVE SPINDLE CAP |
1 |
| 23 |
54-4266● |
SEAL BACKUP |
1 |
53 |
102-2658 ■ |
MANIFOLD CLEANER(Not shown) |
1 |
| 24 |
54-4267● |
SPRING |
1 |
54 |
102-2656 ■ |
LARGE O-RING TOOL(Not shown) |
1 |
| 25 |
54-4263● |
PACKING NUT |
1 |
55 |
102-2657 ■ |
SMALL O-RING TOOL(Not shown) |
1 |
| 26 |
102-2874 |
BODYWELDMENT |
1 |
|
| 27 |
102-2713 |
PLUG |
1 |
| 28 |
102-2708 |
GASKET |
1 |
| 29 |
102-2872 |
FLUID MANIFOLD PLUG ASS'Y |
1 |
| 30 |
102-2873 |
FLUID MANIFOLD PLUG |
1 |
|
| |
 |
| |
| Binks oil and water extractor is important. Achieving a fine spray finish without the use of a good oil and water extractor is virtually impossible. A Binks Regulator/Extractor serves a double purpose. It eliminates blistering and spotting by keeping air free of oil and water and it gives precise air pressure control at the gun. Atomizing pressure must be set to allow for the drop in air pressure between the regulator and the spray gun. |
|
| |
| With 60 psi applied at air supply: |
| |
 |
Binks oil and water extractor is important
Achieving a fine spray finish without the use of a good oil and water extractor is virtually impossible.
A Binks Regulator/Extractor serves a double purpose. It eliminates blistering and spotting by keeping air free of oil and water and it gives precise air pressure control at the gun. Atomizing pressure must be set to allow for the drop in air pressure between the regulator and the spray gun |
|
| |
 |
Approx. 5 ½ PSI at nozzle (NOT RECOMMENDED)
Only 34 psi at gun inlet
25 feet of 1/4" I.D. hose causes a drop of 26 psi between the air supply and the gun. |
|
| |
 |
Approx. 9 PSI at nozzle(RECOMMENDED)
48psi at gun inlet 25 feet of 5/16" I.D. hose causes a drop of 12 psi between the air supply and the gun. For this reason we recommend the use of 5/16" hose. |
|
| |
| Cross section view showing comparison of inside hose diameters (actual size). |
 |
1/4 " |
 |
5/16" |
|
| |
| IMPORTANT REGULATORY NOTE |
| |
| Some Regulatory Agencies prohibit the operation of HVLP spray guns above 10 psi nozzle atomizing pressure. Users subject to this type of regulation should not exceed the gun inlet pressure indicated on the aircap and/or in these instructions. See Air Pressure Recommendations, Page 5 and General Spray Instructions, Page 5. It is recommended that the Nozzle Test Gauge (see below) be used to confirm actual nozzle operating pressure. It may also be a requirement of some Regulatory Agencies that users have this Air Nozzle Test Gauge Assembly available on site to verify that the gun is being operated within the limits of applicable rules. |
|
| |
 |
AIR NOZZLE TEST GAUGE ASSEMBLY
54-3935 for 90 Series Nozzles
54-3908 for 900 Series Nozzle
59 - 299 GAUGE |
| |
| |
| |
| |
