Pistolety lakiernicze automatyczne i ręczne BINKS TROPHY series |
| |
 |
RETUSZUJĄCE PISTOLETY NATRYSKOWE |

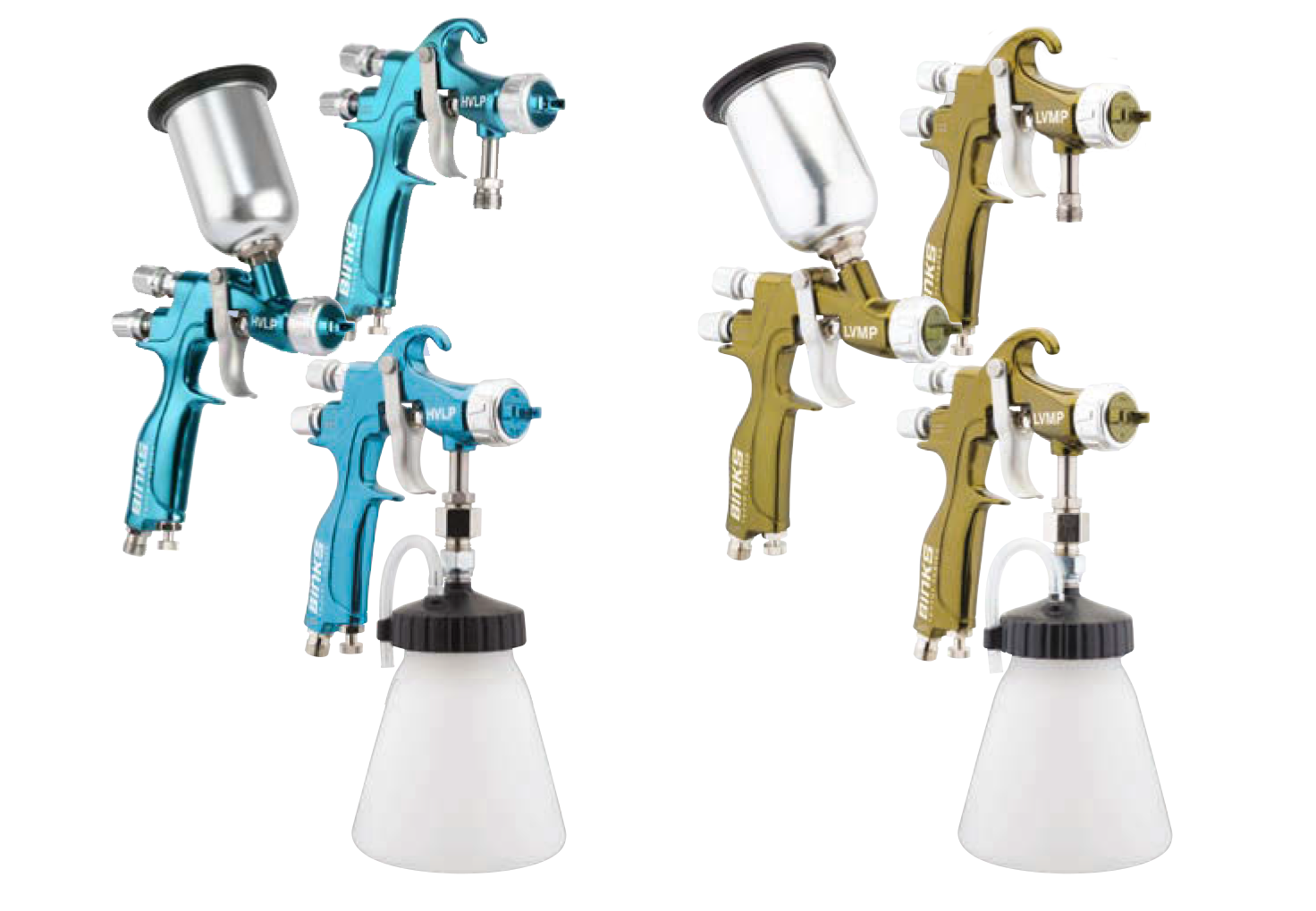

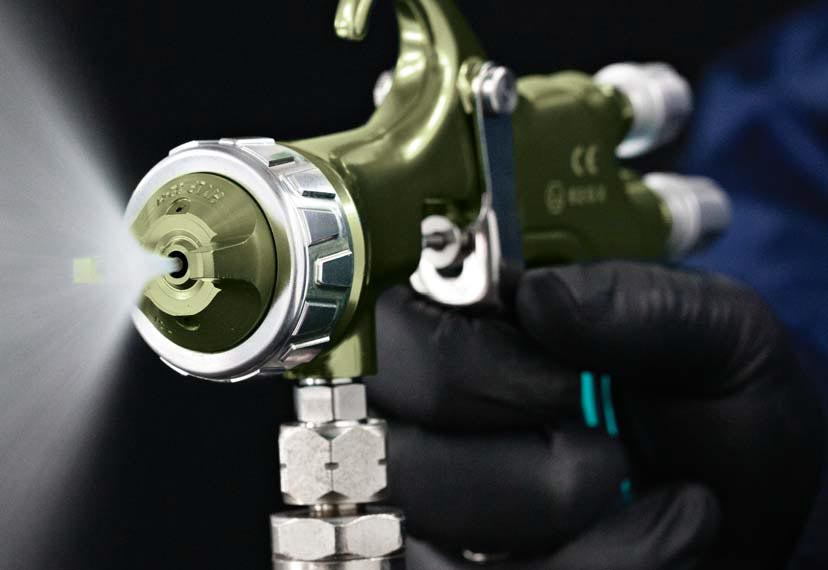

Seria retuszujących pistoletów Trophy Binks to najmniejszy i najbardziej wszechstronny pistolet na rynku. Głowice w technologii HVLP oraz LVMP zostały zoptymalizowane taka by zapewnić niezwykle dokładną kontrolę strumienia natrysku wynoszącą do 6 cali szerokości (150mm). Czy w wersji grawitacyjnej, ssącej lub ciśnieniowej, pistolet
ten umożliwia rozpylanie materiału na wszystkich małych elementach. Oprócz niewielkiego rozmiaru oraz lekkości, ergonomiczna konstrukcja wyznacza nowy standard dla pistoletów retuszujących.
|
| Typowe zastosowania: |
Umożliwia natrysk większości farb, w tym:
• Bejcy
• Materiałów epoksydowych
• Emalii
• Powłok nieprzywierających
• Kleji o niskiej lepkości |
| |
| SPECYFIKACJA PISTOLETU TROPHY |
| Maks. ciśnienie pow./mat. |
100 psi / 6.9 bar |
| Anodyzowany korpus pistoletu |
Aluminium |
| Kanał materiałowy |
Stal nierdzewna |
| Wlot materiału |
3/8" NPS / BSP(m) |
| Rozmiar wlotu powietrza |
1/4" NPS / BSP(m) |
| Waga pistoletu (ciśnieniowego) |
372 gram |
| Waga pistoletu (graw. bez kubka) |
340 gram |
| Części zwilżane (pistolet) |
Stal nierdzewna & PTFE |
| Części zwilżane (kubek graw.) |
Aluminium oraz mosiądz niklowany |
| Części zwilżane (kubek ssący) |
Polietylen oraz mosiądz niklowany |
|
| |
 |
| |
| PISTOLETY RETUSZUJĄCE |
| |
| Numer części |
Materiał iglicy |
Typ |
HVLP
|
| 1465-08HV-C1S-E |
Stal nierdzewna |
Ciśnieniowy |
| 1466-10HV-C1S-E |
Stal nierdzewna |
Grawitacyjny |
| LVMP (Trans-Tech) |
|
|
| 1465-10LV-B1S-E |
Stal nierdzewna |
Ciśnieniowy |
| 1465-12LV-B1S-E |
Stal nierdzewna |
Ciśnieniowy |
| 1466-10LV-B1S-E |
Stal nierdzewna |
Grawitacyjny |
| 1466-12LV-B1S-E |
Stal nierdzewna |
Grawitacyjny |
|
| Żólty oznacza standardowe ustawienia |
| |
| Pistolety retuszujące Trophy |
| |
| Kod głowicy |
Technologia natrysku |
SCFM |
LPM |
Typ dyszy rozmiary |
Typ powierzchni |
| B1 |
LVMP (Trans-Tech) |
7.8 @ 30 psi |
220 @ 2 bar |
0.8 mm - 1.2 mm |
Cienka |
| C1 |
HVLP |
6.5 @ 20 psi |
181 @ 1.4 bar |
0.8 mm - 1.2 mm |
Cienka |
|
| Ciśnienie na wlocie pistoletu jest mierzone na złączu wlotu przy uruchomieniu spustu pistoletu. |
| |
| Akcesoria do pistoletu TROPHY BINKS |
| |
 |

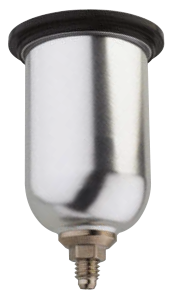

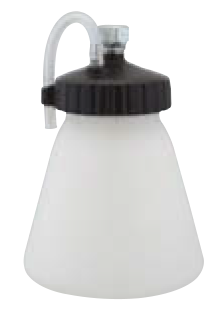

81-384 - Zestaw retuszujący z kubkiem ssącym
|
 |
54-4458 - Zestaw retuszujący z aluminiowym kubkiem grawitacyjnym |
|
| |
| START WITH CONFIDENCE. FINISH WITH A TROPHY. |
| |
| Application Versatility and Consistent Championship Performance – That’s What You |
| Can Expect From Binks Trophy Series Equipment. |
| |
| Whatever size job or part you’re finishing – whatever material you’re spraying – Binks Trophy Series spray guns provide the technology and confidence needed for most jobs and coatings. |
| |
| BINKS HAS YOU COVERED. |
| |

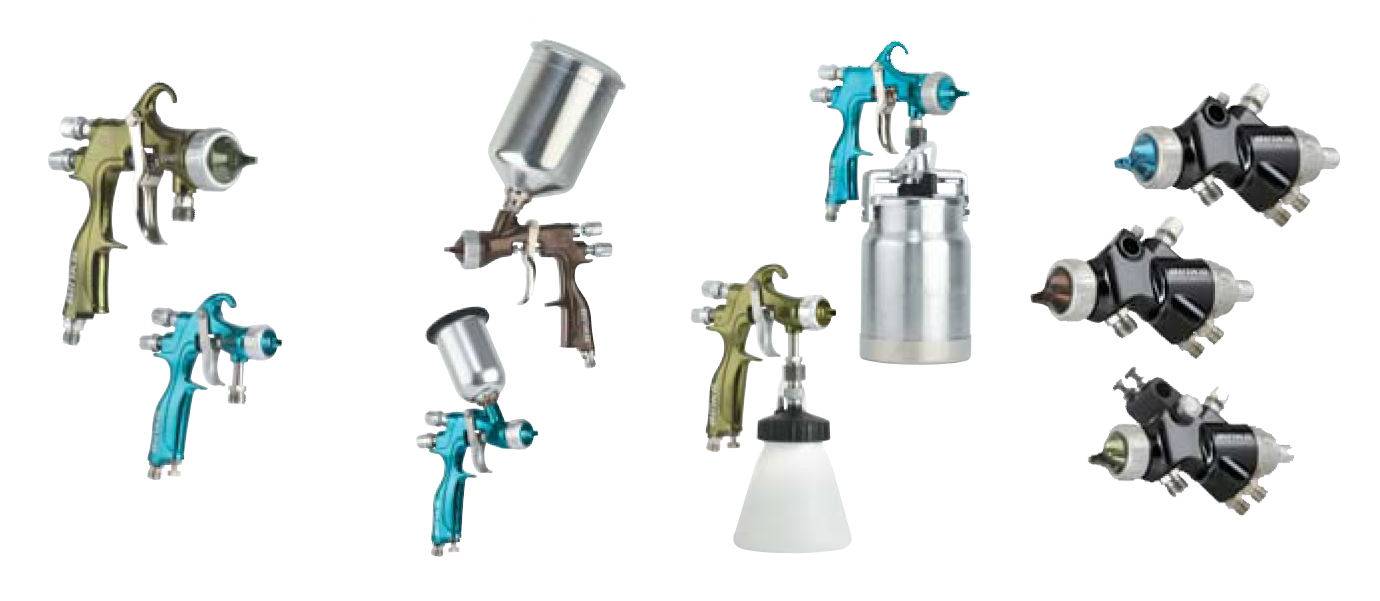

Pressure Feed Full
Size, Pressure
Feed Touch Up |
Gravity Feed Full
Size, Gravity Feed
Touch Up |
Siphon Feed
Full Size |
Automatic |
 |
|
| |
 |
Whatever size job or part you’re finishing – whatever material you’re spraying – Binks Trophy Series spray guns provide the technology and confidence needed for most jobs and coatings.
|
| |
| Whatever size job or part you’re finishing – whatever material you’re spraying – Binks Trophy Series spray guns provide the technology and confidence needed for most jobs and coatings. |
| |
| |
HVLP |
LVMP |
CONVENTIONAL |
| Transfer Efficiency |
Meets Regulatory Standards |
Equal to or better than HVLP |
Less than HVLP and LVMP |
Fluid Flow
|
Good |
Better |
Best |
| |
 |
 |
 |
Air cap CFM
|
31-H
10.5 @ 10 PSI |
22-L
11.2 @ 30 PSI |
11-C
14.2 @ 50 PSI |
32-H
15.5 @ 10 PSI |
23-L
10.6 @ 30 PSI |
12-C
12.1 @ 50 PSI |
33-H
11.0 @ 10 PSI |
B1
7.8 @ 30 PSI |
14-C
24.4 @ 50 PSI |
C1
6.4 @ 10 PSI |
|
16
7.8 @ 50 PSI |
|
PSI’s are specified |
PSI’s are specified at the gun inlet |
|
| |
 |
| |
| Fluid Nozzles and Needles Binks Trophy Series Spray Guns can be outfitted with a variety of fluid tips designed and manufactured to handle a broad range of application materials. These include: |
| |
| TUFF TIP |
Our stainless steel fluid nozzles are hardened and last 20% longer.* The stainless steel fluid nozzles are used for general purpose and a wide variety of coatings.
Size range: .5 to 2.6 (mm) |
| |
| PLASTIC |
Plastic needles are typically used for very thin materials including NGR stains.
Size range: .5 to 2.6 (mm) |
| |
| TUNGSTEN CARBIDE |
Tungsten carbide nozzles and needles are typically used for abrasive materials such as porcelain and ceramics.
Sizes: 1.4, 1.8, 2.2, 2.6 (mm)
*Based on internal testing of existing Binks and competitor stainless steel. Tested over 1 million cycles. |
| |
 |
| |

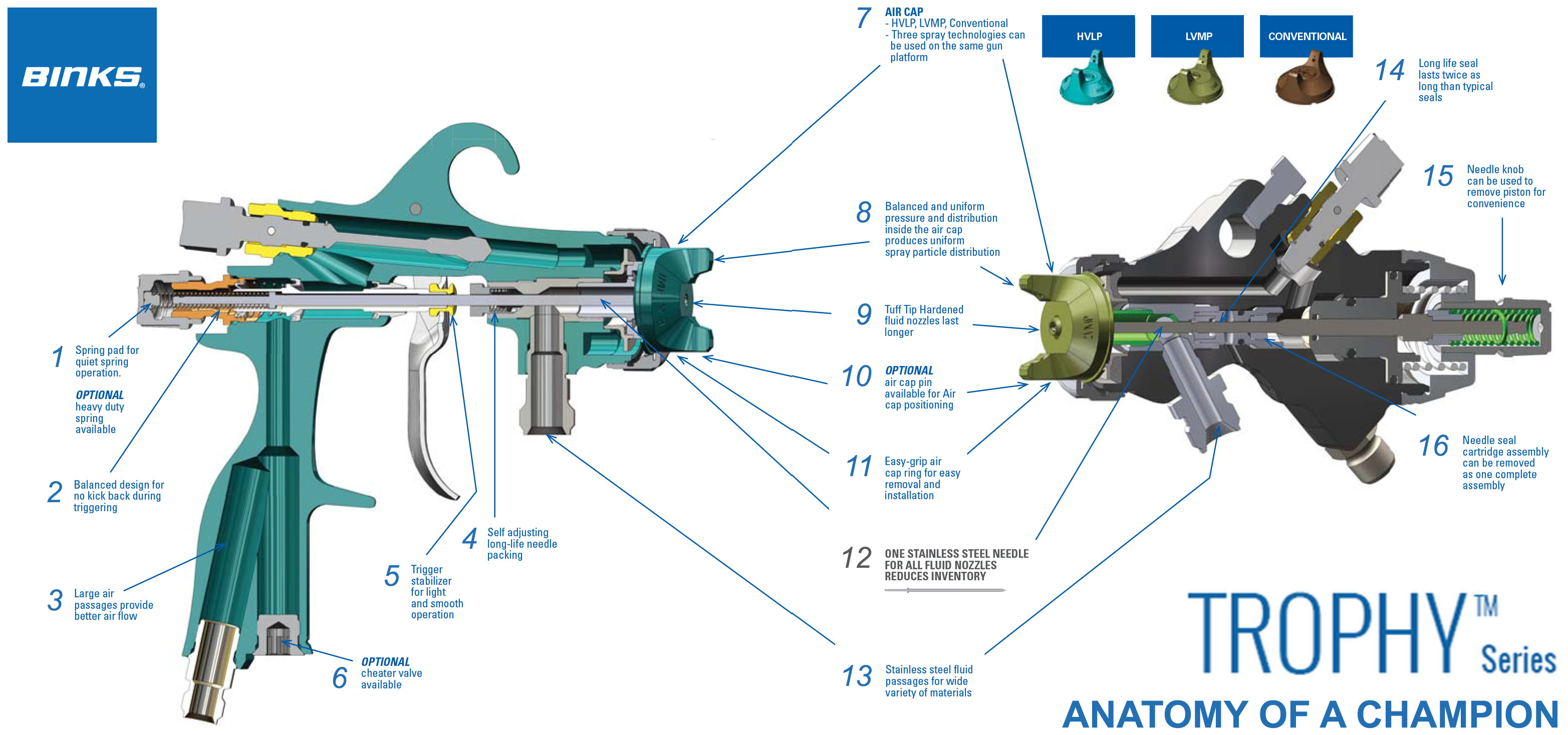

1. Spring pad for quiet spring operation. OPTIONAL heavy duty spring available
2. Balanced design for no kick back during triggering
3. Large air passages provide better air flow
4. Self adjusting long-life needle packing
5. Trigger stabilizer for light and smooth operation
6. OPTIONAL cheater valve available
7. AIR CAP
- HVLP, LVMP, Conventional
- Three spray technologies can be used on the same gun platform
8. Balanced and uniform pressure and distribution inside the air cap produces uniform spray particle distribution
9. Tuff Tip Hardened fluid nozzles last longer
10. OPTIONAL air cap pin available for Air cap positioning
11. Easy-grip air cap ring for easy removal and installation
12. ONE STAINLESS STEEL NEEDLE FOR ALL FLUID NOZZLES REDUCES INVENTORY
13. Stainless steel fluid passages for wide variety of materials
14. Long life seal lasts twice as long than typical seals
15. Needle knob can be used to remove piston for convenience
16. Needle seal cartridge assembly can be removed as one complete assembly viscosities. |
| |
| Combined with our comprehensive and compatible fluid nozzle and needles - including our hardened stainless steel Tuff Tip, plastic needle tips, and tungsten carbide – Trophy series spray equipment is fully capable of spraying the widest range of materials and viscosities. |
| |
| Why We Took Ergonomics So Seriously |
| |
 |
| |
| Binks Trophy Series Spray Guns feel different by design. They’re lighter and are easier to handle over longer periods of time. That means operators can spray for longer periods with less fatigue and injury. This can make a big difference to productivity and your bottom line. That’s why we take ergonomics so seriously. |
| |
| BINKS TROPHY SERIES GUNS ARE: |

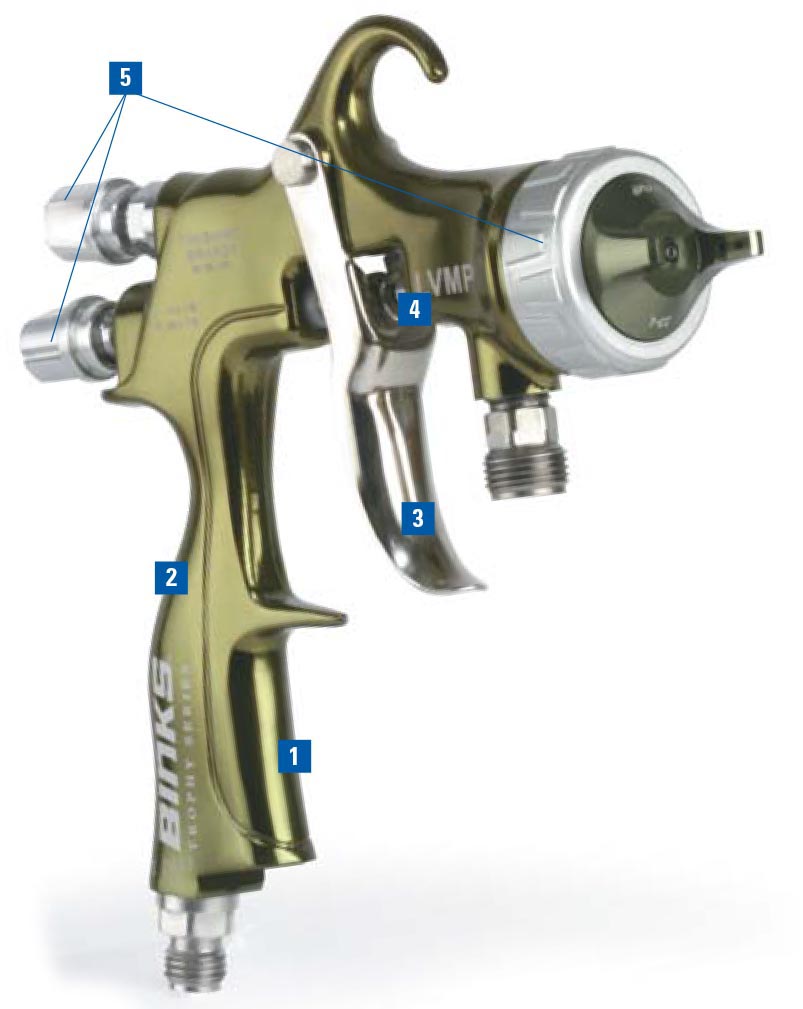

1. LIGHT WEIGHT – one of the lightest spray guns in the industry.
2. DESIGNED TO THE HAND – our gun designers tested a variety of hands and grips to come up with the ideal design for the Trophy. The form is ultimately about function and reduced stress.
3. TRIGGER PULL – the easy trigger pull action is created by the unique, built-in stabilization features.
4. NO KICK AIR VALVE – delivers the smoothest trigger pull on the market. Virtually eliminates any recoil from triggering.
5. KNOBS AND AIR CAP RINGS – all the hand adjustments have been designed and manufactured to make it nearly effortless to dial in on your settings or remove parts for maintenance or substitution. |
| |
wood to metals to ceramics and
more, Binks Trophy Series Spray
Equipment can handle your coating needs
from start to finish. |
| |
| |
 |
Binks Trophy Series Equipment provides all the utility and versatility you need to develop your production plan and execute it with complete confidence. Each gun can be configured with the appropriate needle and nozzle to accommodate the coating, size of part and type of surface to be finished.
|
| |
| Each gun can be configured with the appropriate needle and nozzle to accommodate the coating, size of part and type of surface to be finished. |
| |
| metal |
wood |
transportation |
special coatings |
 |
 |
 |
 |
| |
|
|
|
| Trophy Series Spray Guns are your go-to guns regardless of what kind of metal parts you’re painting. You’ll get high quality coating performance out of… |
Wood surfaces can be expertly finished with Trophy guns designed specifically to handle… |
Class A finishes for cars, trailers, trucks, buses, airplanes, helicopters and more are delivered with Trophy Series Spray Guns. You’ll get the atomization for optimum spraying… |
Trophy Series Spray Guns and accompanying air caps are fully capable of handling a broad array of coatings and adhesives… |
|
| |
|
|
|
- Urethanes
- Latex
- Two-component
- materials
- Epoxies |
- Toners
- Stains
- NGR Stains
- Topcoats |
- Primers
- Base Coats
- Clear Coats
- Aerospace specific coatings |
- Waterborne lacquers, UV
materials and paints
- Adhesives for furniture, packaging and automotive
applications
- High Wear enamels, ceramics, metallics, high solids |
|
| |
| COATING TYPES |
THIN (5-25 Centipoise, 15-19 sec. Zahn 2 Cup) - Wash primers, dyes, stains, solvents, water, inks, sealers, lacquers, lubricants, zinc chromates, acrylics
MEDIUM (20-70 Centipoise, 20-30 sec. Zahn 2 Cup) - Synthetic enamels, varnishes, shellacs, fillers, primers, epoxies, urethanes, lubricants, wax emulsions, enamels
HEAVY (70-160 Centipoise, 31-66 sec Zahn 2 Cup)
ADHESIVES - Water-based vinyl, glues, solvent-based neoprenes, contact cements
CERAMICS - Abrasive materials, glazes, porcelain enamel |
| |
For additional configurations, model numbers, tungsten carbide set-ups, and information, refer to the following spray gun bulletins: |
77-3026 – Trophy Pressure Feed & Siphon Feed
77-3027 – Trophy Gravity Feed
77-3042 - Trophy Touch-Up Pressure Feed
77-3043 – Trophy Touch-Up Gravity Feed
77-3049 - Trophy Automatic |
| |
| ATOMIZATION TECHNOLOGIES |
| |
● Air Pressure is less than 10 psi at the air cap. Meets USA standards and regulatory requirements
● Provides equal to or greater transfer efficiency at higher air pressures than HVLP
● Can spray at any air pressure. Good for viscous materials |
| |
| GUN TYPE |
SPRAY GUN TECHNOLOGY |
COATING TYPES |
NEEDLE MATERIAL |
TIP SIZE |
AIR CAP |
ORDER NUMBER |
|
Full Size Gravity
|
LVMP ● |
Thin / Medium |
Stainless |
1.4 mm (.055) |
23-L |
2466-14LV-23SG |
| LVMP ● |
Medium / Heavy |
Stainless |
1.8 mm (.070) |
23-L |
2466-18LV-23SG |
| HVLP ● |
Thin / Medium |
Stainless |
1.2 mm (.047) |
32-H |
2466-12HV-32SG |
| HVLP ● |
Thin / Medium |
Stainless |
1.4 mm (.055) |
32-H |
2466-14HV-32SG |
| HVLP ● |
Medium / Heavy |
Stainless |
1.8 mm (.070) |
32-H |
2466-18HV-32SG |
Full Size Pressure
|
LVMP ● |
Thin / Medium |
Stainless |
1.2 mm (.047) |
23-L |
2465-12LV-23S0 |
| LVMP ● |
Thin / Medium |
Stainless |
1.4 mm (.055) |
23-L |
2465-14LV-23S0 |
| LVMP ● |
Thin / Medium |
Stainless |
1.8 mm (.070) |
23-L |
2465-18LV-23SS |
| HVLP ● |
Thin |
Stainless |
1.0 mm (.040) |
33-H |
2465-10HV-33S0 |
| HVLP ● |
Thin / Medium |
Stainless |
1.2 mm (.047) |
32-H |
2465-12HV-32S0 |
| HVLP ● |
Thin / Medium |
Stainless |
1.4 mm (.055) |
32-H |
2465-14HV-32S0 |
| HVLP ● |
Medium / Heavy |
Stainless |
1.8 mm (.070) |
32-H |
2465-18HV-32S0 |
| HVLP ● |
Thin / Medium |
Stainless |
1.8 mm (.070) |
32-H |
2465-18HV-32SS |
| Conventional ● |
Thin/Medium/Mold Release/Non-Stick |
Stainless |
1.4 mm (.055) |
11-C |
2465-14CN-11S0 |
| Conventional ● |
Medium / Heavy |
Stainless |
1.8 mm (.070) |
11-C |
2465-18CN-11S0 |
| Full Size Siphon |
Conventional ● |
Thin/Medium/Adhesives/Non-Stick |
Stainless |
1.8 mm (.070) |
12-C |
2465-18CN-12SS |
| Touch Up Gravity |
LVMP ● |
Thin |
Stainless |
1.0 mm (.040) |
B1 |
1466-10LV-B1S |
| Touch Up Gravity |
LVMP ● |
Thin / Medium |
Stainless |
1.2 mm(.047) |
B1 |
1466-12LV-B1S |
| Touch Up Gravity |
HVLP ● |
Thin |
Stainless |
1.0 mm (.040) |
C1 |
1466-10HV-C1S |
| Touch Up Gravity |
HVLP ● |
Thin / Medium |
Stainless |
1.2 mm(.047) |
C1 |
1466-12HV-C1S |
| Touch Up Pressure |
HVLP ● |
Thin |
Stainless |
1.0 mm (.040) |
C1 |
1465-10HV-C1S |
| Touch Up Pressure |
HVLP ● |
Thin / Medium |
Stainless |
1.2 mm (.047) |
C1 |
1465-12HV-C1S |
| Automatic |
HVLP ● |
Thin |
Stainless |
.85 mm (.034) |
33-H |
3465-85HV-33S0 |
| Automatic |
HVLP ● |
Thin |
Plastic |
.85 mm (.034) |
31-H |
3465-85HV-31P0 |
| Automatic |
HVLP ● |
Thin |
Stainless |
1.0 mm (.040) |
33-H |
3465-10HV-33S0 |
| Automatic |
HVLP ● |
Thin |
Plastic |
1.0 mm (.040) |
31-H |
3465-10HV-31P0 |
| Automatic |
HVLP ● |
Thin / Medium |
Stainless |
1.2 mm(.047) |
32-H |
3465-12HV-32S0 |
| Automatic |
HVLP ● |
Thin / Medium |
Plastic |
1.2 mm(.047) |
31-H |
3465-12HV-31P0 |
| Automatic |
HVLP ● |
Thin / Medium |
Stainless |
1.4 mm (.055) |
32-H |
3465-14HV-32S0 |
| Automatic |
HVLP ● |
Thin / Medium |
Plastic |
1.4 mm (.055) |
31-H |
3465-14HV-31P0 |
| Automatic |
HVLP ● |
Medium |
Stainless |
1.6 mm (.063) |
32-H |
3465-16HV-32S0 |
| Automatic |
HVLP ● |
Medium / Heavy |
Stainless |
1.8 mm (.070) |
32-H |
3465-18HV-32S0 |
| Automatic |
LVMP ● |
Thin |
Stainless |
.85 mm (.034) |
22-L |
3465-85LV-22S0 |
| Automatic |
LVMP ● |
Thin |
Stainless |
1.0 mm (.040) |
22-L |
3465-10LV-22S0 |
| Automatic |
LVMP ● |
Thin / Medium |
Stainless |
1.2 mm(.047) |
23-L |
3465-12LV-23S0 |
| Automatic |
LVMP ● |
Thin / Medium |
Stainless |
1.4 mm (.055) |
23-L |
3465-14LV-23S0 |
| Automatic |
LVMP ● |
Medium |
Stainless |
1.6 mm (.063) |
23-L |
3465-16LV-23S0 |
| Automatic |
Conventional ● |
Thin |
Stainless |
1.0 mm (.040) |
11-C |
3465-10CN-11S0 |
| Automatic |
Conventional ● |
Thin / Medium |
Stainless |
1.2 mm(.047) |
11-C |
3465-12CN-11S0 |
| Automatic |
Conventional ● |
Thin / Medium |
Stainless |
1.4 mm (.055) |
11-C |
3465-14CN-11S0 |
| Automatic |
Conventional ● |
Medium / Heavy |
Stainless |
1.8 mm (.070) |
11-C |
3465-18CN-11S0 |
| Automatic |
Conventional ● |
Heavy |
Stainless |
2.0 mm (.079) |
14-C |
3465-20CN-14S0 |
| Automatic |
Conventional ● |
Heavy |
Stainless |
2.2 mm (.087) |
14-C |
3465-22CN-14S0 |
|
| |
| SPRAY GUN OUTFITS |
| |
| Includes: |
2465-14HV-32S0 (Trophy HVLP Spray Gun), 83C-220 (2 Gal zinc plated tank w/ 2 regulators) 71-1203 (15' Air Hose Assembly 5/16" ID), 71-31101 (25' Ergoflex Air Hose 3/8" ID), 71-3383 (25' Fluid Hose Assembly 1/4" ID)
Order Number - 98-3156 |
| |
2465-14LV-23S0 (Trophy LVMP Spray Gun), 83C-220 (2 Gal zinc plated tank w/ 2 regulators) 71-1203 (15' Air Hose Assembly 5/16" ID), 71-31101 (25' Ergoflex Air Hose 3/8" ID), 71-3383 (25' Fluid Hose Assembly 1/4" ID)
Order Number - 98-3157 |
| |
  |
| |
| A wide variety of spray guns, accessories, high and low pressure material handling pumps, pressure tanks and paint circulating systems. |
| |
| |
| |
