Binks F200 & F400 Flow - Guns |

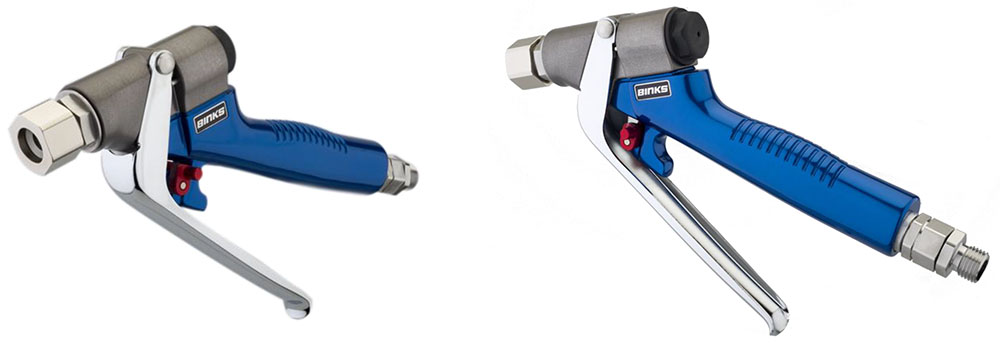

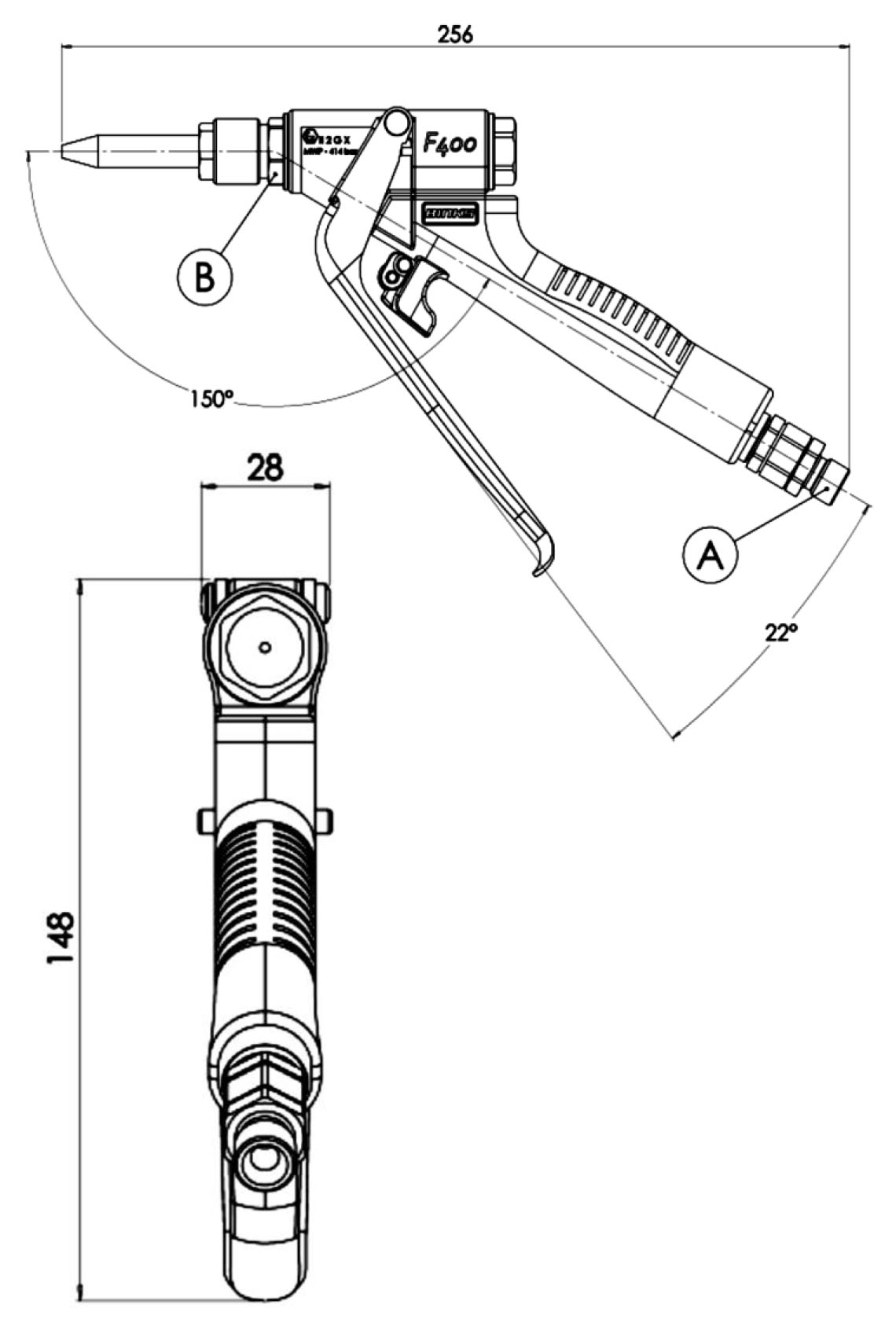

Advanced, Light-weight Pistol Grip Flow-Guns |
| |
 |
| |

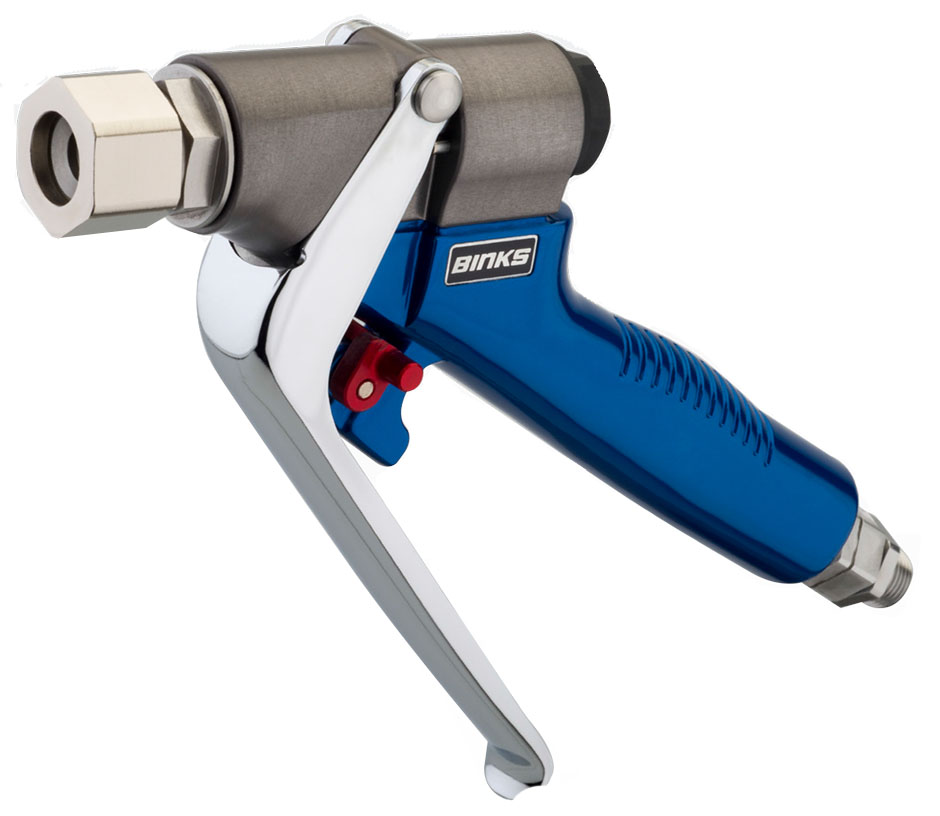

| The Binks F200 & F400 are advanced light-weight, pistol grip flow-guns for the extrusion of sealants, mastics, putties and adhesives. The F200 is an ultra-light-weight gun for multiple applications up to 4,000 psi (275 Bar), while the high-pressure F400 is for applications using pressures of up to 6000 psi (414 Bar).The adaptable nozzle connection options, available on both guns, allows existing nozzle tools to ft onto the Binks guns. |
| |
 |
| |

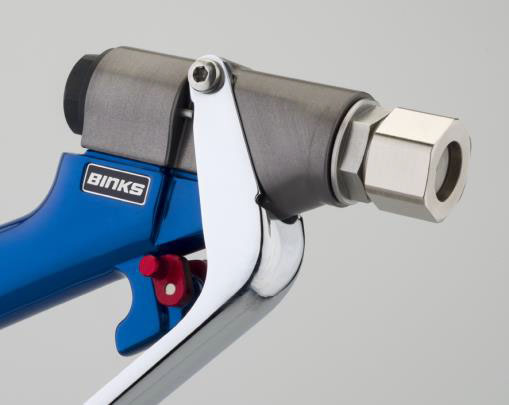

Light-weight precision control flow-guns with easy-pull triggers for reduced operator fatigue
Adaptable nozzle connection kits to ft most common nozzle tools
Durable metal body construction in aluminium and stainless steel for long working life
Longlife Tungsten Carbide Fluid Needle and Seat with extended packing life
Safe to use with ‘no-fnger-trap’ trigger and easy to operate trigger lock
Critical moving parts are enclosed in the gun head to guard against contamination.
CE Compliant |
| |
| MARKETS AND APPLICATIONS |
| |
• Automotive and transport
• General Industrial
• Furniture and window production
• Marine |
| |
Binks F200 & F400 Flow-Guns |
| Advanced, Light-weight Pistol Grip Flow-Guns |
| |
| HOW TO ORDER YOUR FLOW GUN |
| |
1. Choose your Gun Model
2. Choose your Fluid Nozzle Adaptor
3. Choose your Fluid Inlet |
| |
| 1. CHOOSE YOUR GUN MODEL |
| |
| Model |
Max Fluid Pressure |
Part No. |
| F200 |
4000psi (276 Bar) |
FG12XY00 |
| F400 |
6000psi (414 Bar) |
FG14XY00 |
|
| |
X = Fluid Nozzle (2)
Y = Fluid Inlet (3)
|
| |
| 2. CHOOSE YOUR FLUID NOZZLE ADAPTOR (X) |
| |
| Nozzle Type |
Ref No. (X) |
Example Gun Part No. |
| Binks G3/8” BSPP |
1 |
FG121Y00 |
| 3/4” UNF |
2 |
FG122Y00 |
| M18 x 1.5 |
3 |
FG123Y00 |
|
| |
| CONSTRUCTION MATERIALS |
| |
| Gun head and |
F200 |
Anodized Aluminum |
| Fluid Passageways |
F400 |
Stainless Steel |
| Gun Handle |
|
Anodized Aluminum |
| Fluid Needle and Seat |
|
Tungsten Carbide |
Seals
|
|
Polyethylene |
|
Fluoroelastomer (FKM) |
| Weight (with G 3/8” BSP |
F200 |
430g (0.95lbs) |
nozzle kit)
|
F400
|
610g (1.34lbs) |
|
| |
| ACCESSORIES |
| |
| Part No |
Description |
| FG300011 |
Nozzle spigot to suit Binks nozzle adaptor for nozzles with 1/8” NPT threads |
| 104170 |
1/4” NPSM Z-Swivel 8000 psi (550 Bar) |
| 104171 |
G1/4” BSP Z-Swivel 8000 psi (550 Bar) |
| 107906 |
High Pressure Regulator 5000 psi (345 Bar) |
| 107908 |
Back Pressure Regulator 5000 psi (345 Bar) |
|
| A full range of high pressure hoses are also available. Visit our website for further information. |
 |

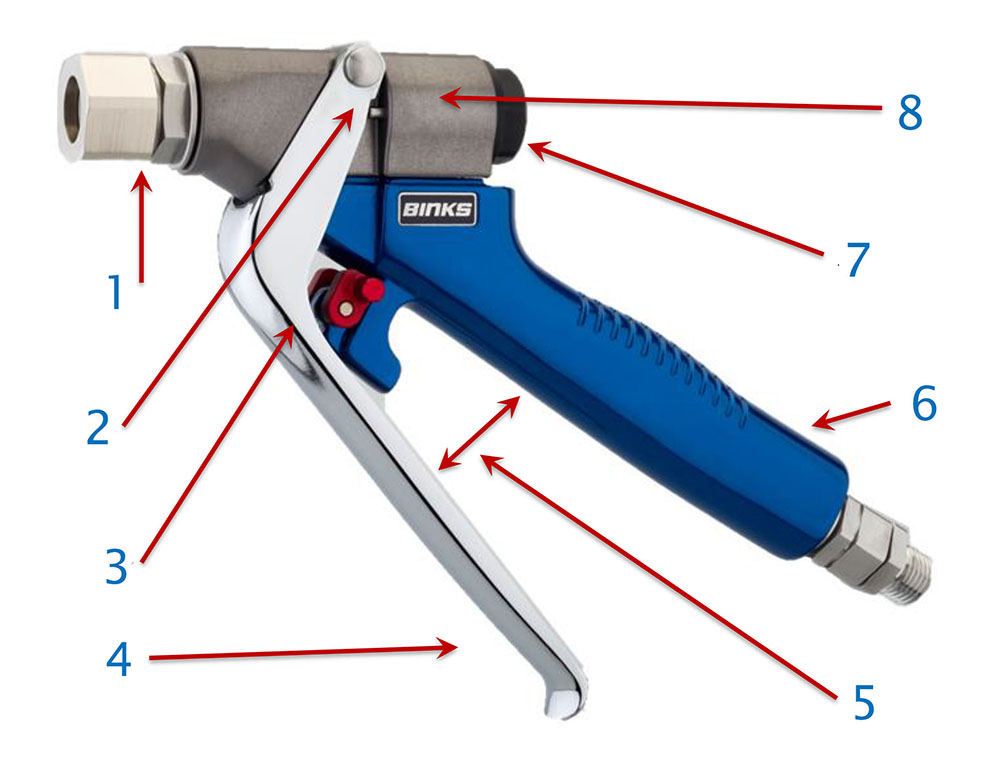

| 1.Adaptable Fluid Nozzle Connections allow for the use of most common nozzles and existing tooling. 2.Recessed, non-clogging trigger pins activate internal flow mechanism. 3.Easy to operate trigger lock with ‘no-fnger-trap’ guard. 4.Easy to control ‘lite-squeeze’ trigger 5.Adjustable trigger pull distance. 6.F200 light-weight – only 430g (0.95lbs). Durable forged aluminium handle. 7.Easy access to internal mechanism for fast cleaning and maintenance. 8.Enclosed mechanism guards against contamination. |
| |
| |
Connector |
Ref No. (Y) |
Example Gun Part No. |

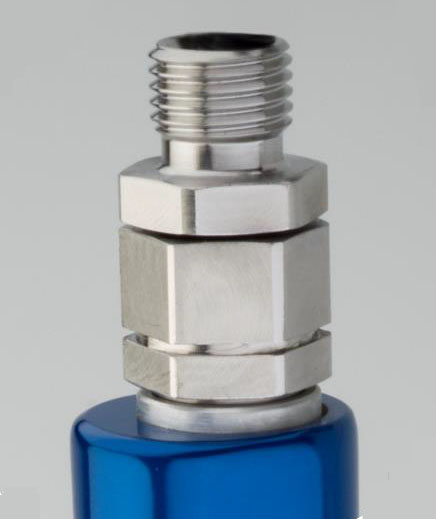

| ‘Zero Leak’ Smooth Twist, In-line Swivel Connector |
 |
G1/4” BSPP/NPSM - Male |
2 |
FG12X200 |
| 1/4” NPT - Male |
7 |
FG12X700 |
| Standard Fixed In-line Connector |
 |
G1/4” BSPP/NPSM - Male |
1 |
FG12X100 |
| 1/4” NPT - Male |
6 |
FG12X600 |

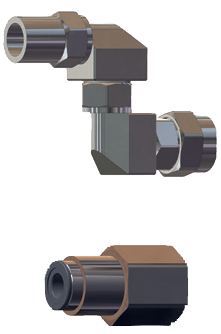

| Specialist Inlets |
 |
Z-Swivel G1/4” BSPP - Male |
3 |
FG12X300 |
| Z-Swivel 1/4” NPSM - Male |
4 |
FG12X400 |
| Straight Adaptor 1/4” NPT - Female |
5 |
FG12X500 |
|
| |
| For further technical information refer to the Binks F200 & F400 Flow-Guns Service Bulletin. Not all variants / models available in all countries. |
| |
F200 & F400 |
Flow Guns for the extrusion of sealants, mastics, putties and adhesives. |
| |
 |
| |
F200, 276 bar / 4000 psi, Anodised Aluminium, Ultra light-weight – only 430g,(0.95lbs).
F400, 214 bar / 6000 psi, Stainless Steel, 610g (1.34lbs), Light Trigger Pull. |
| |

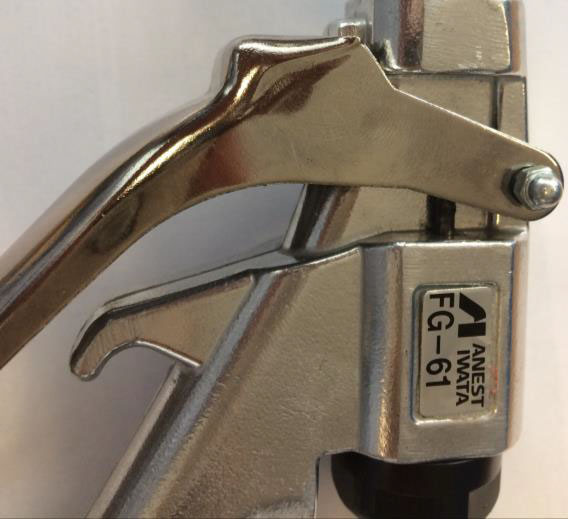

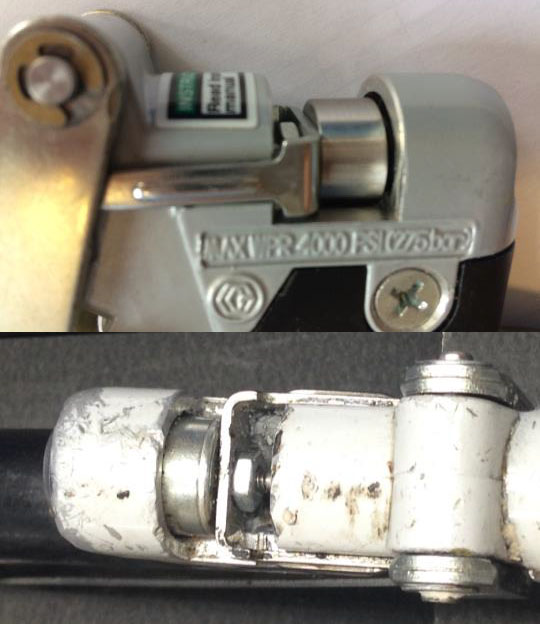

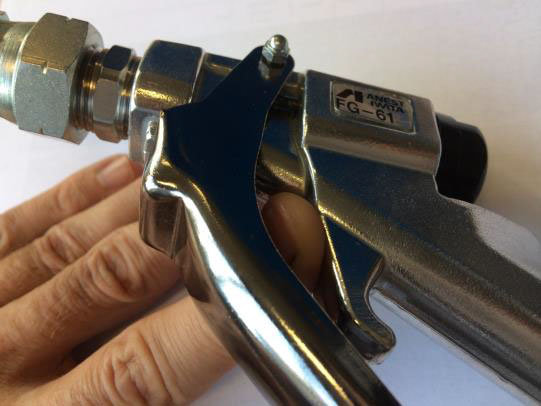

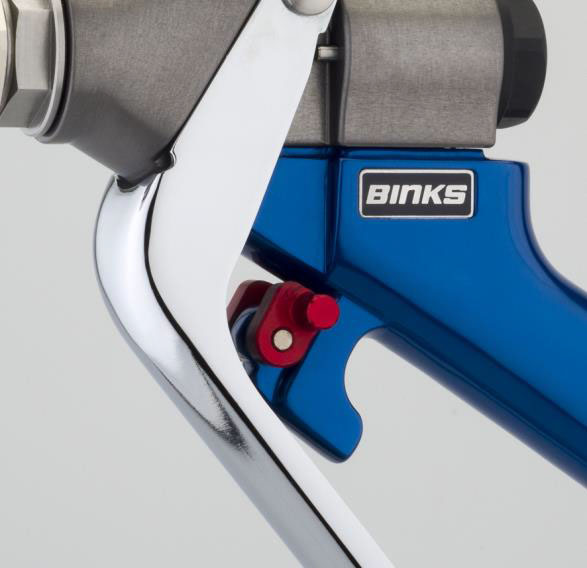

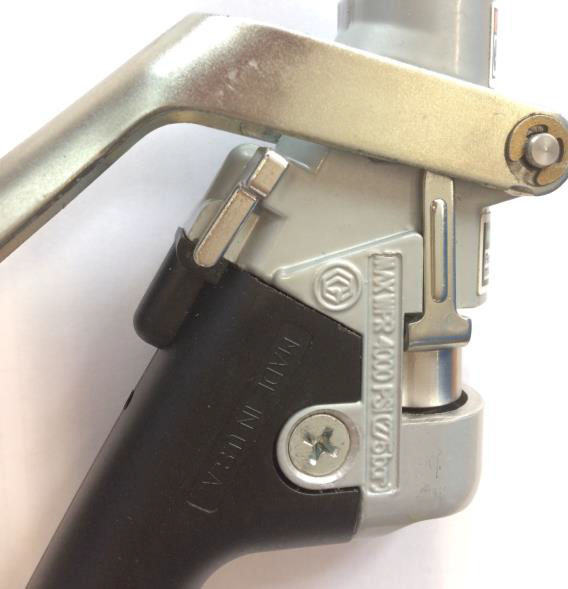

| Competitor Comparison - Trigger Lock |
| |
 |
 |
 |
Binks F200/F400 has
a lightweight quick
action trigger lock with integrated gun rest. |
Competitor I – The gun has no
trigger
lock but
does
have a gun rest. |
Competitor G has a quick action
trigger lock but it is easily broken in
the field and often removed. No gun rest. |
|
| |

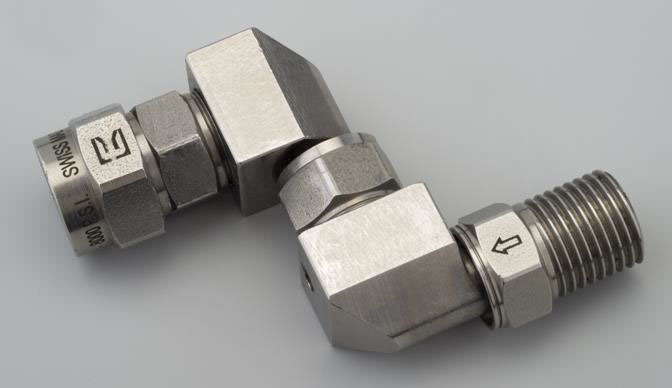

Competitor Comparison - Swivel Assembly |
| |
 |
 |
 |

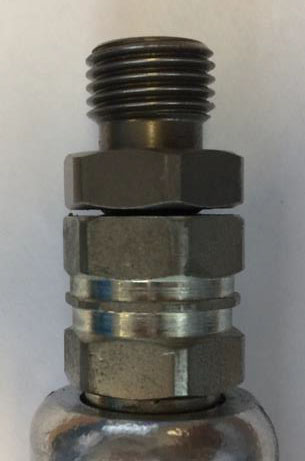

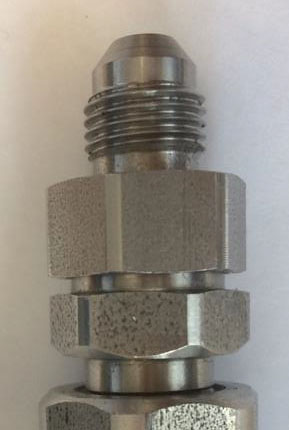

| The F200/F400 has a lightweight inline swivel action with ¼” universal thread or NPT (Z-Swivel or no swivel also available). Zero leaks when tested with oil across pressure range |
Competitor I has in-line
swivel but found to leak at
low pressure with oil.
|
Competitor G has an in-line swivel but it leaked across pressure range when tested with oil. Tightening it up to reduce leak made it too stiff to swivel effectively. |
|
| |
| Competitor Comparison - Seals |
| |
 |
 |
 |

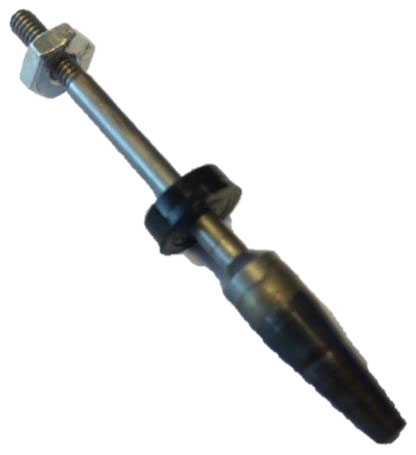

The F200/F400 flow gun uses the same UHMWPE seal, which is
usedin the proven and successful AA4400 gun. The seal is
squashed around a Ø2mm carbide needle with a carbide
ball and seat. This means it is extremely hard and resistant to wear.
The seal is easy to remove and clean and requires very little maintenance. |
Competitor I’s flow gun uses a PTFE U-Cup seal with fluoroelastomer energiser. The seal adjusts for wear with a series of disc springs and a chevron brass washer arrangement. This makes it very expensive and not very easy to clean. The needle is steel with a carbide ball and seat.
|
Competitor G’s flow gun uses a U-Cup seal with fluoroelastomer energiser. The seal / needle assembly is difficult to remove and is easily contaminated. The needle is steel with a carbide tapered end. Its surface finish is poor. Unlike Binks or Competitor I, the needle has to be removed from the front, meaning the nozzle has to be removed first. |
|
| |
| Competitor Comparison - Safe Design |
| |
 |
 |
 |
| F200/F400 – Finger traps removed and all moving parts are completely enclosed. |
Competitor I – Large gap behind trigger could trap fingers.
|
Competitor G – Moving parts are not enclosed meaning they are vulnerable to contamination and could become trapping points. |
|
| |

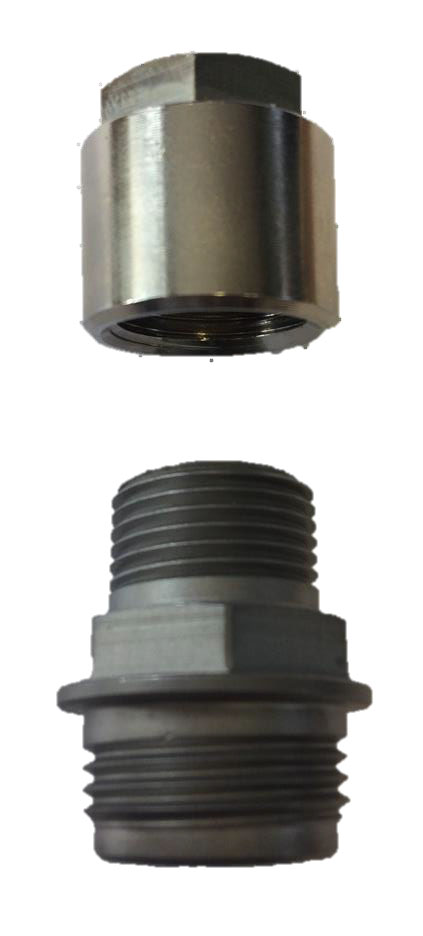

| Choose to use the Binks G3/8” BSPP nozzle size or select the size used by Competitor I or G to reuse existing tools. |
| |
 |
 |
 |
| Binks – 3/8” BSPP |
Comp. G – ¾” UNF
|
Comp. I – M18 x 1.5 |
|
| |
| Accessories |
| |
 |
 |
 |

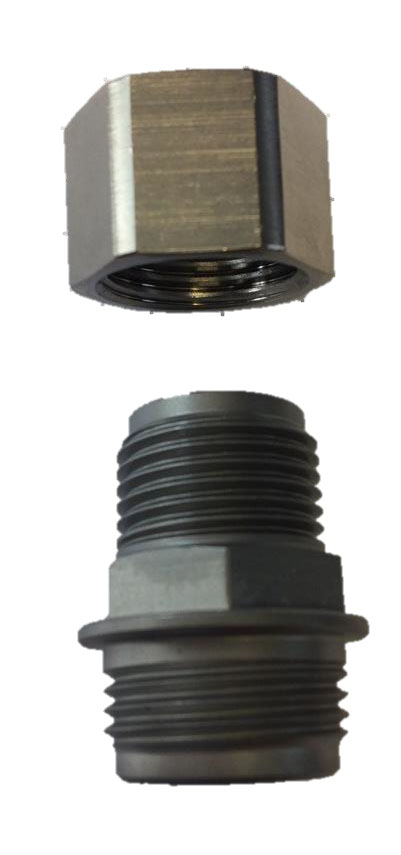

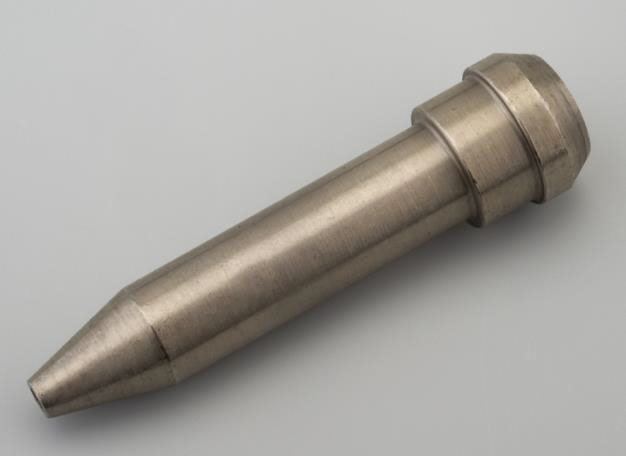

Existing palm grip flow gun nozzle will fit on to Binks nozzle adaptor. Supplied as standard when
ordering the Binks Nozzle connection. |

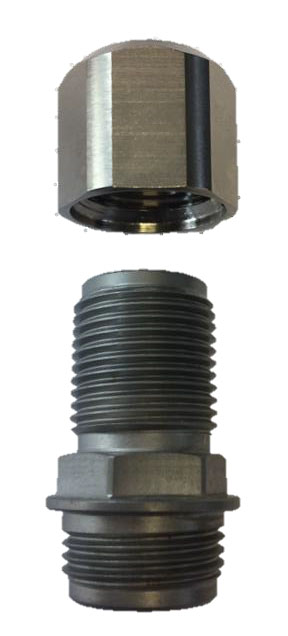

1/8” NPT adaptor (FG300011) for custom
madenozzles will fit on to
Binks nozzle adaptor.
|
Z-Swivel ¼” BSPP or NPSM
550 bar / 8000psi |
|
| |
| Specifications |
| |
| Fluid inlet Pressure |
| Max Fluid Input Pressure |
F200 |
276 bar [4000 psi] |
| F400 |
414 bar [6000 psi] |
| Environmental |
Ambient Operating Temperature
|
0-40°C Nominal [0-104°F] |
| Materials of Construction |
Gun Body and Fluid Passageways
|
F200 |
Anodised Aluminium |
| F400 |
17-4 Stainless Steel |
Gun Handle
|
Anodised Aluminium |
Fluid Needle and Seat Construction
|
Tungsten Carbide |
Seals
|
Polyethylene |
| Fluoroelastomer [FKM] |
| Connections |
Fluid Inlet Options
|
Straight Adaptor G1/4” BSPP / NPSM Universal Thread Male |
| Straight Adaptor 1/4” NPT Thread Male Or Female |
| Straight Swivel With G1/4” BSPP / NPSM Universal Or 1/4” NPT Thread Male |
| Z-Swivel G1/4” BSPP or 1/4” NPSM |
Fluid Nozzle Adaptor Options
|
G3/8” BSPP Male |
| 3/4” UNF Male / 1/4” NPT Female |
| M18 x 1.5 Male |
| Weight |
| With Nozzle |
F200 |
430g [0.95 lbs] |
| F400 |
610g [1.34 lbs] |
|
| |
 |
| |
| |
