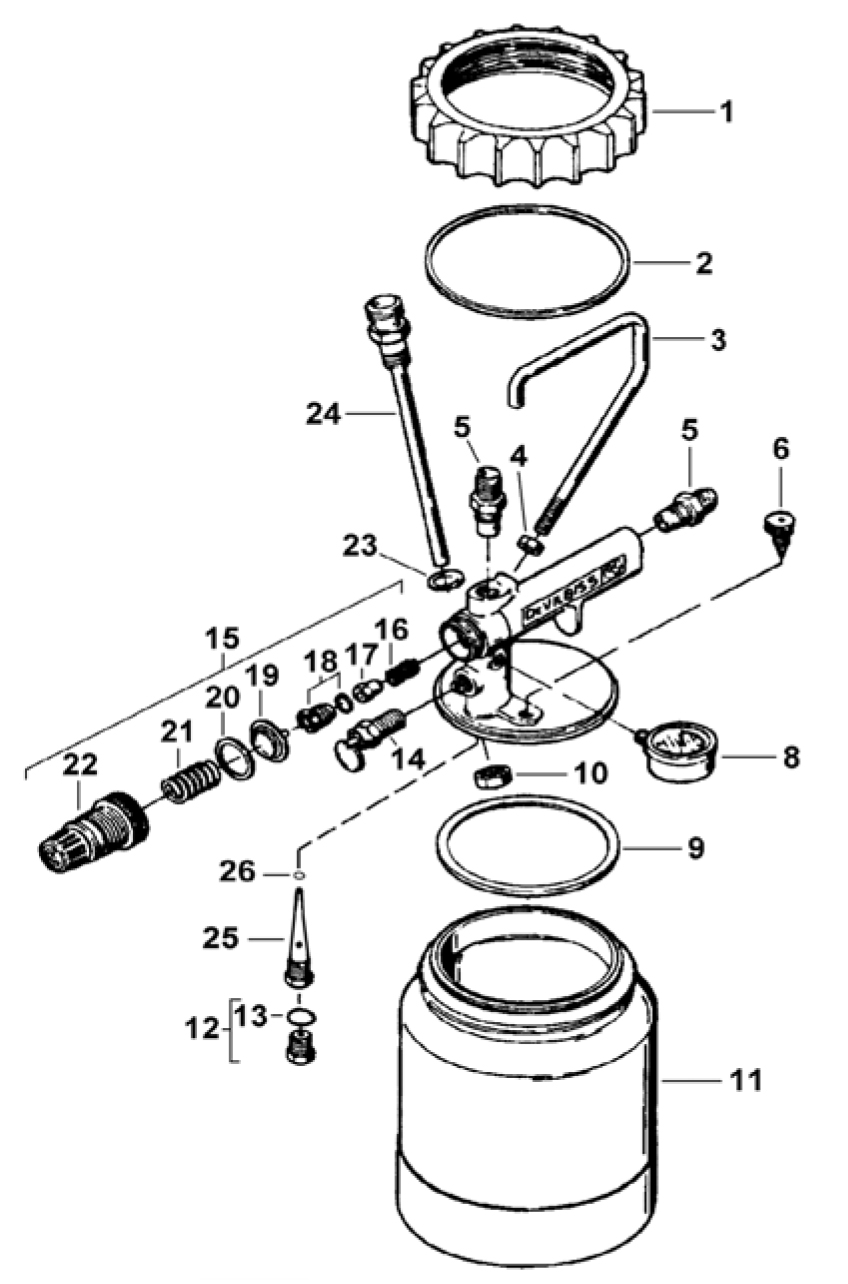

KB-522 Zbiorniki ciśnieniowe

części binks

Ref. Part no. Description
1 KB-64 Retaining ring
2 KB-81-K5 Slip ring (Pack of 5)
3 KB-74 Handle
4 SS-656-CD Nut
5 JGA-158 Air inlet adaptor
6 KB-66 Pressure relief valve
8 GA-355 Air pressure gauge
9 KB-80-K5 Seal (Pack of 5)
10 MBD-11-K5 Nut (Pack of 5)
11 KB-422 Cup 2 l
12 KB-432-K3 Check valve assembly (Pack of 3)
13 KB-85-K5 Gasket (Pack of 5)
14 TIA-4355 Safety valve
15 KB-428-1 Regulator assembly
16 * Spring
17 * Valve
18 * Valve seat with seal
19 * Diaphragm
20 * Slip ring
21 (in Pos. 15) Spring
22 (in Pos. 15) Bonnet
23 KB-60-K6 Gasket (Pack of 6)
24 KK-4997 Fluid tube assembly R 3/8˝
25 KB-444 Check valve
26 KB-101-K5 Seal (Pack of 5)

pasek-binks

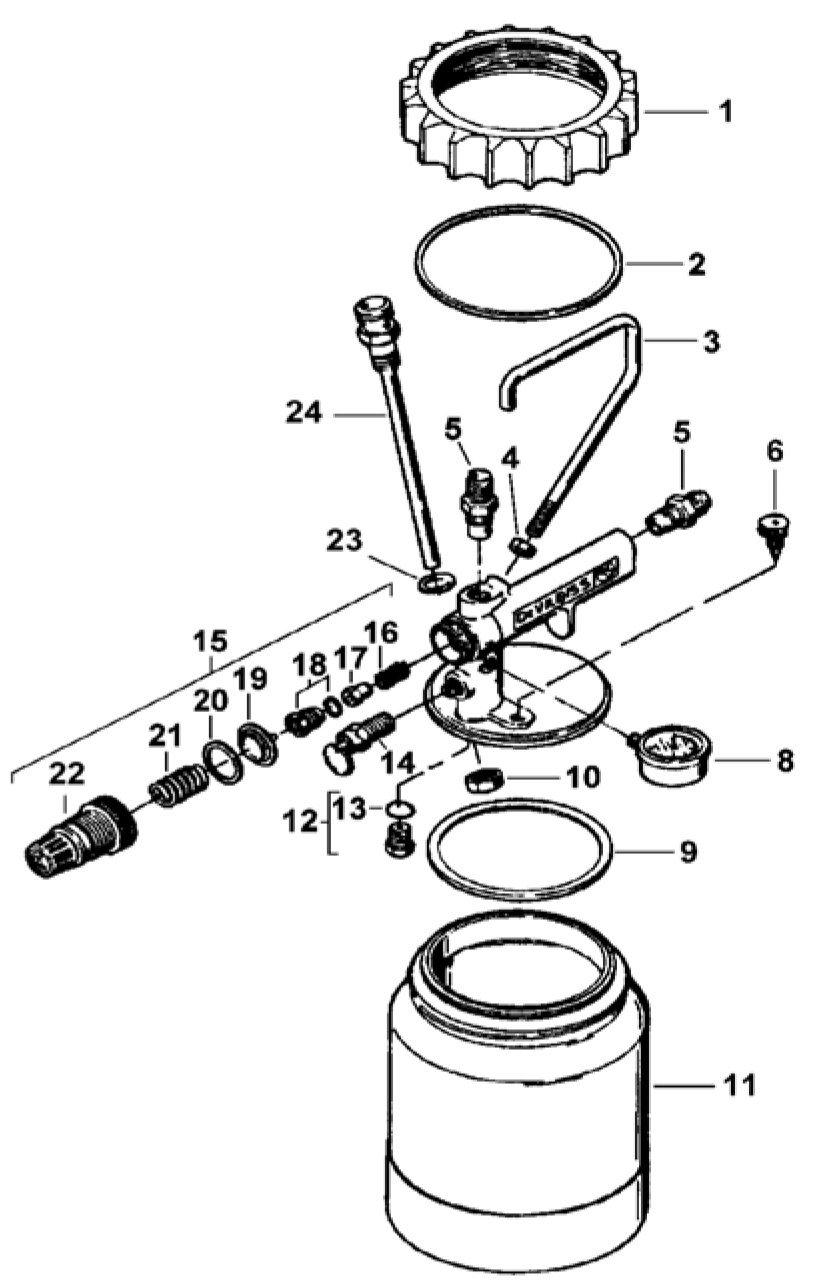

KB-522-SS Zbiorniki ciśnieniowe

czesci binks

Ref. Part no. Description
1 KB-64 Retaining ring
2 KB-81-K5 Slip ring (Pack of 5)
3 KB-74 Handle
4 SS-656-CD Nut
5 JGA-158 Air inlet adaptor
6 KB-66 Pressure relief valve
8 GA-355 Air pressure gauge
9 KB-80-K5 Seal (Pack of 5)
10 KB-97-K2 Nut (Pack of 2)
11 KB-442 Cup 2 l
12 KB-432-K3 Check valve assembly (Pack of 3)
13 KB-85-K5 Gasket (Pack of 5)
14 TIA-4355 Safety valve
15 KB-428-1 Regulator assembly
16 * Spring
17 * Valve
18 * Valve seat with seal
19 * Diaphragm
20 * Slip ring
21 (in Pos. 15) Spring
22 (in Pos. 15) Bonnet
23 KB-60-K6 Gasket (Pack of 6)
24 KK-4996 Fluid tube assembly R 3/8˝

pasek binks

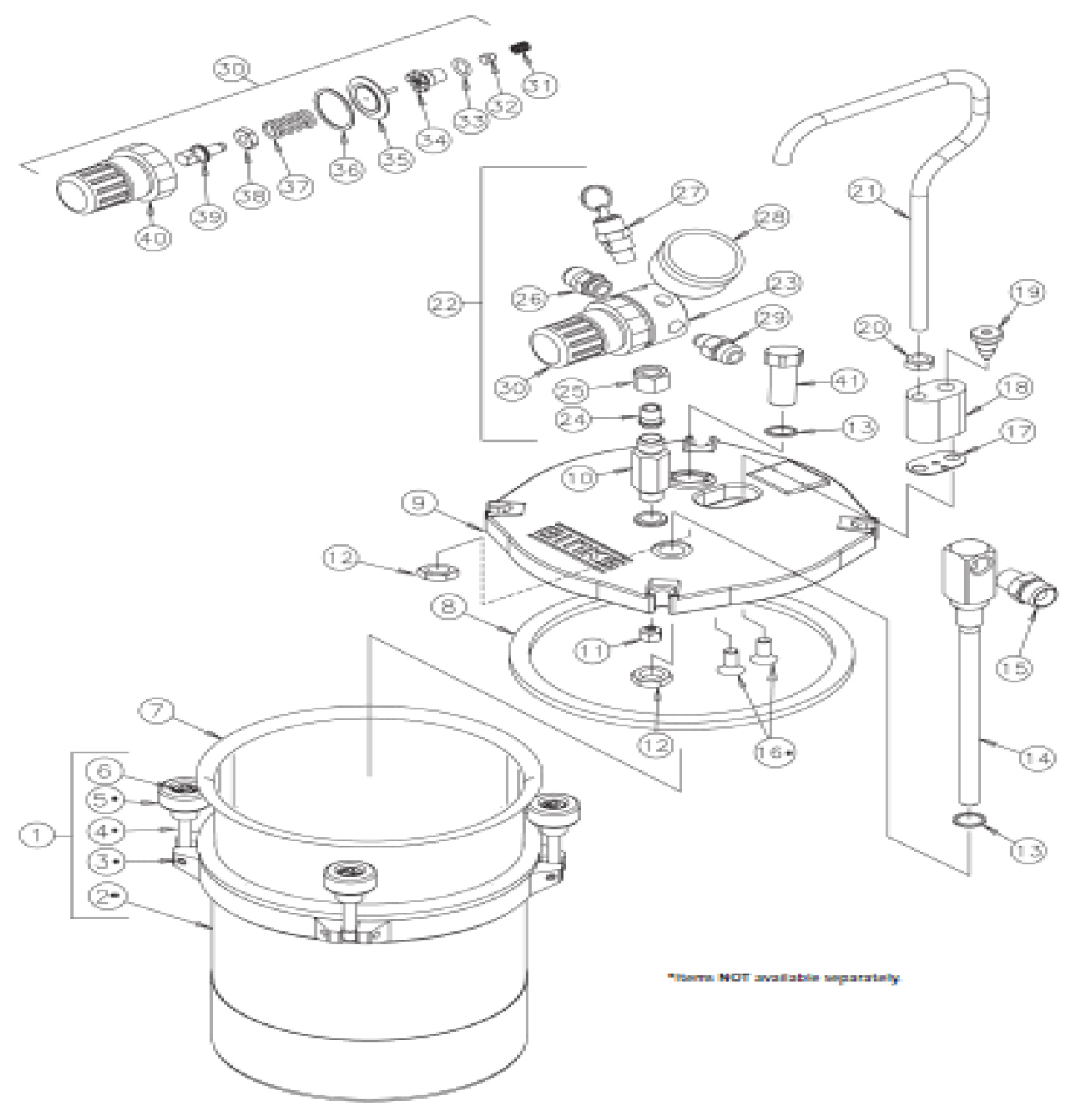

80-600 Stedi-Grip - Zbiorniki ciśnieniowe

pasek binks

Ref. Part no. Description
1 80-375 2 QT canister assembly
2 80-376 2 QT canister sub assembly
3 20-4870 Spirol pin
4 80-381 Canister knob swivel
5 80-380 Canister knob
6 80-382 Retaining ring
7 80-355 Disposable liner
8 80-392 Cover machining
9 80-602 Lid gasket
10 80-606 Check valve assembly
11 80-610 Diffuser
12 80-389 Fluid tube nut
13 80-388 Fluid tube seal
14 80-613 Fluid tube assembly
15 83-2484 DM nipple, 1/4 NPT x 3/8 NPS
16 20-6582 Screw
17 80-373 Handle gasket
18 80-604 Manifold
19 80-12 Relief valve
20 20-353-1 Jam nut, 5/16-18
21 80-605 Handle
22 85-449 Regulator Assembly
23 85-436 Regulator Body
24 72-104 Tail piece
Ref. Part no. Description
25 72-93 Swivel nut, 1/4” NPS
26 54-308 Air connection
27 TIA-4326 Safety valve
28 59-299 Gauge, 15 PSI
29 71-28 DM Nipple, 1/8 NPT x 1/4 NPS
30 85-437 Regulator kit 15 PSI
31
Valve spring
32
Valve, PTFE
33
O-ring
34
Valve seat
35
Diaphragm
36
Valve spring
37
Regulator spring
38
Nut
39
Stem
40
Bonnet
41 80-616 Top outlet plug

pasek binks

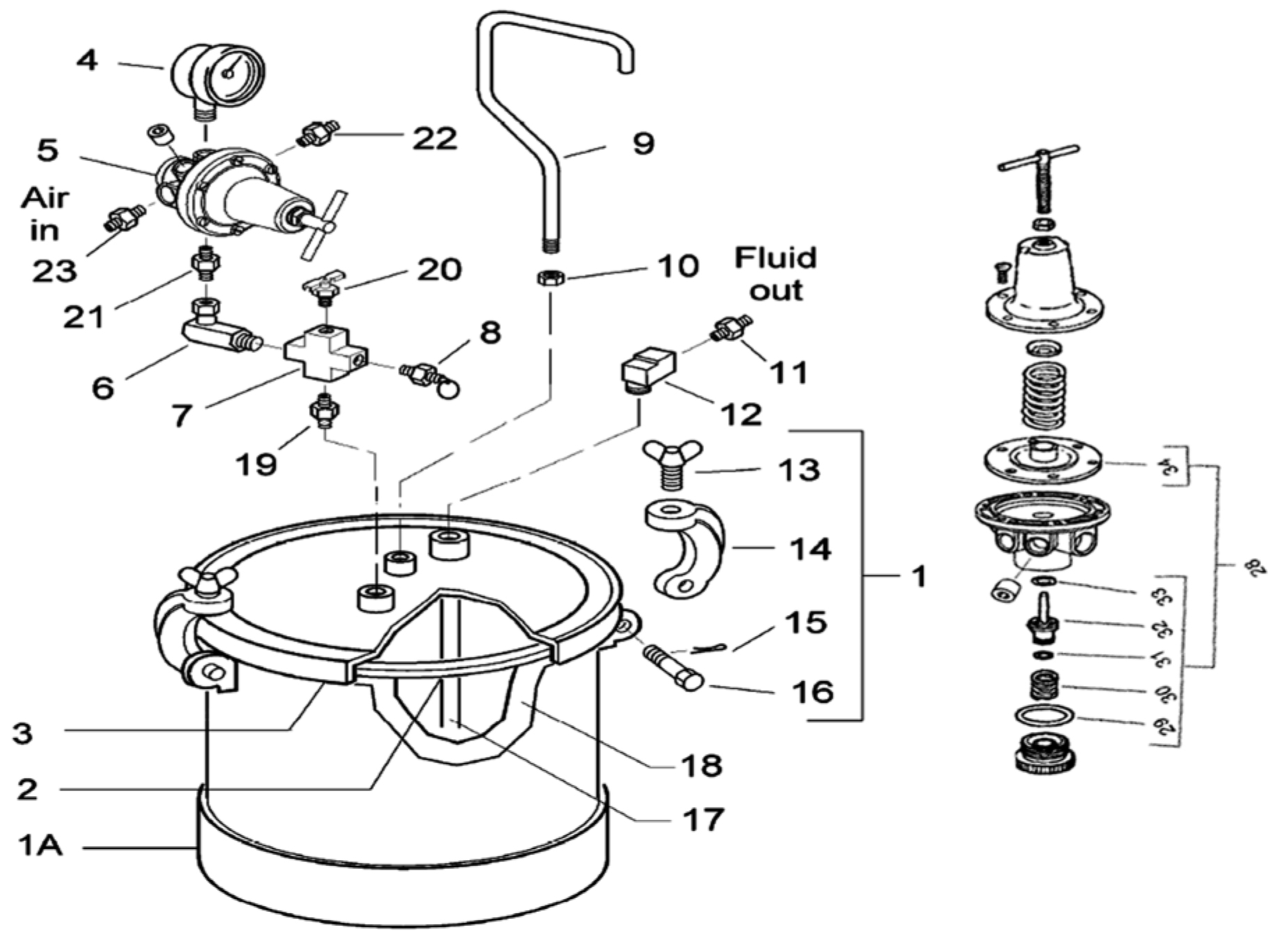

83C-210 10L/2.8 gal tank (Galvanized)

binks

Ref. Part no. Description
1 PT-423 Tank Assy. Kit (Pos. 1a,13, 14, 15 + 16, Pack of 4)
1A PT-420 Tank Shell
2 PT-33-1 Cover seal, Santoprene
3 PT-425 Cover, galvanized
4 83-2727 Pressure gauge
5 HAR-511 Pressure regulator
6 SSP-30-ZN Elbow 90°, 1” NPS (IG/AG)
7
Cross piece
8 TIA-5080-CE Safety valve 5.5 bar
9 PT-32 Handle
10
Nut
11 AD-11 Double nipple 3/8” NPT

2101007 Double nipple 3/8’ NPT (M) x 3/8’ BPS (M)
12 SSP-1939 Elbow 90°, 3/8’ NPT (IG/AG)
13
Thumb screw (in Pos. 1 included)
14
Bracket (in Pos. 1 included)
15
Securing pin (in Pos. 1 included)
16
Hinge pin (in Pos. 1 included)
17 PT-31 Material tube
18 PT-78-K10 Disposable liner (Pack of 10)

PT-78-K60 Disposable liner (Pack of 60)
Ref. Part no. Description
19 SSP-462-ZN Double nipple, 1” NPT (AG)
20 SS-2707 Air pressure relief valve
21 83-4233 Double nipple

H-2008 Nipple 1” NPT X 1/4 NPS
22 2101004 Nipple 1” NPT X 1/4 BSP

83-4233 Nipple 3/8” NPT X 1/4 NPS
23 2101005 Nipple 3/8” NPT X 1/4 NPS
28 KK-4977 Repair kit pressure regulator
29
O-ring
30
Spring
31
O-ring
32
Valve
33
O-ring
34
Diaphragm compl.

pasek binks

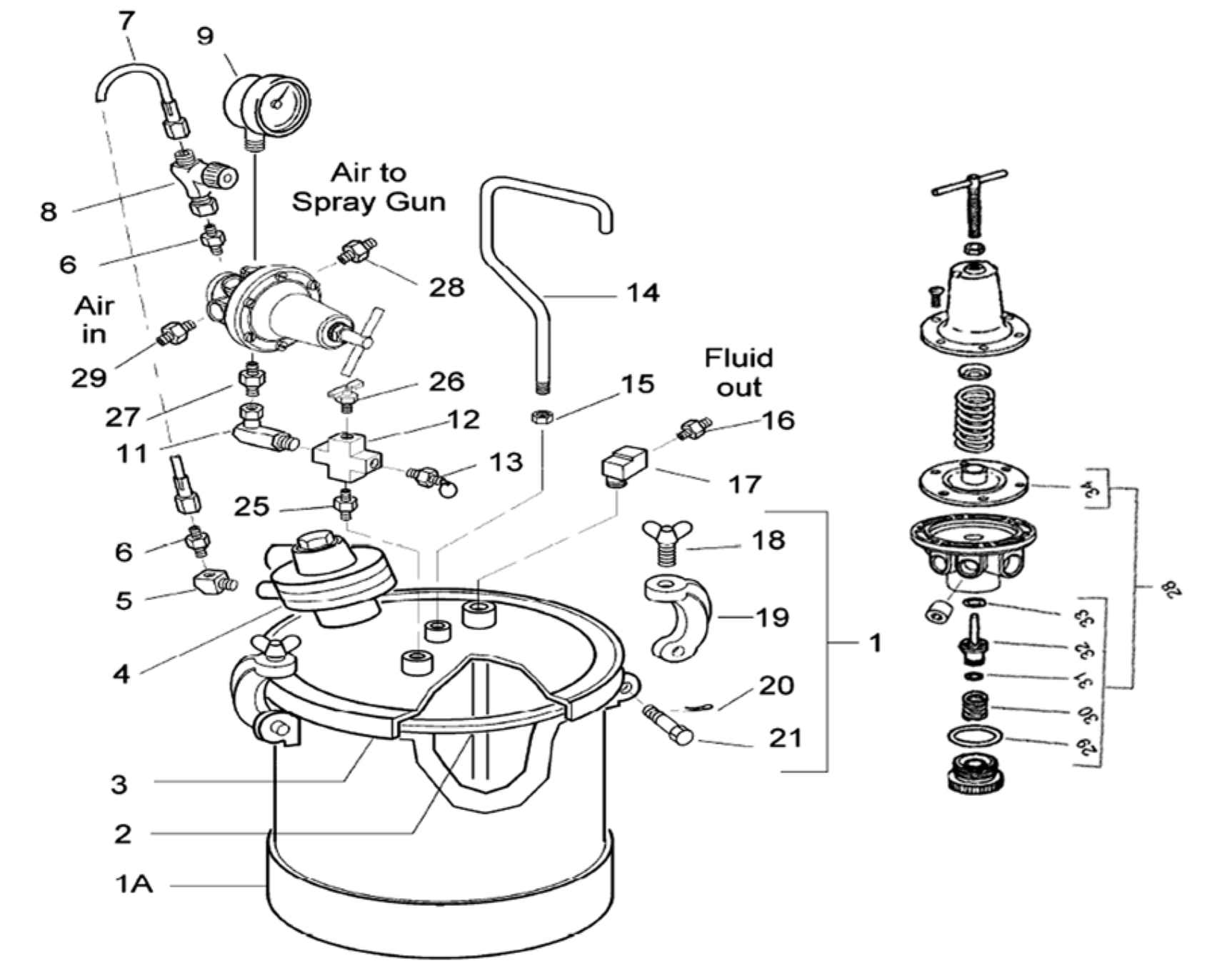

83Z-211 10L/2.8 gal tank (Stainless steel lid and st st fluid passages)

binks częsci

Ref. Part no. Description
1 PT-423 Screw, bracket and holder (Pack of 4)
1A PT-420 Containers
2 PT-33-1 Lid gasket, Santoprene
3 PT-421 Lid, stainless steel
4 PT-427-CE Agitator drive
5*
Elbow, 1/4"
6 H-2008 Nipple 1” NPT X 1/4 NPS
7 HA-57011 Hose assembly
8 HAV-500-1 Air adjusting valve, 1/4" NPS
9 83-2727 Pressure gauge
10 HAR-511 Pressure regulator
11 SSP-30-ZN Elbow 90°, 1” NPS (IG/AG)
12
Cross piece
13 TIA-5080-CE Safety valve 5.5 bar
14 PT-32 Handle
15
Nut 3/8"
16 SSP-459 Double nipple 3/8’ NPT (M) x 3/8’ NPT (M)
17 CT-1164 Double nipple 3/8” NPT (M) x 3/8” BSP (M)

SSP-1939 Elbow 90°, 3/8’ NPT (IG/AG)
18
Thumb screw (in Pos. 1 included)
19
Yoke assembly(in Pos. 1 included)
20
Securing pin (in Pos. 1 included)
21
Hinge pin (in Pos. 1 included)
22 QMS-9-1 Fluid tube stainless steel
Ref. Part no. Description
23 PT-78-K10 Disposable liner (Pack of 10)

PT-78-K60 Disposable liner (Pack of 60)
25 SSP-462-ZN Double nipple, 1” NPT (AG)
26 SS-2707 Air pressure relief valve
27 83-4233 Double nipple
28 H-2008 Nipple 1” NPT X 1/4 NPS

2101004 Nipple 1” NPT X 1/4 BSP
29 83-4233 Nipple 3/8” NPT X 1/4 NPS

2101005 Nipple 3/8” NPT X 1/4 NPS
28 KK-4977 Repair kit Pressure regulator
29
O-ring
30
Spring
31
O-ring
32
Valve
33
O-ring
34
Diaphragm compl.

pasek binks

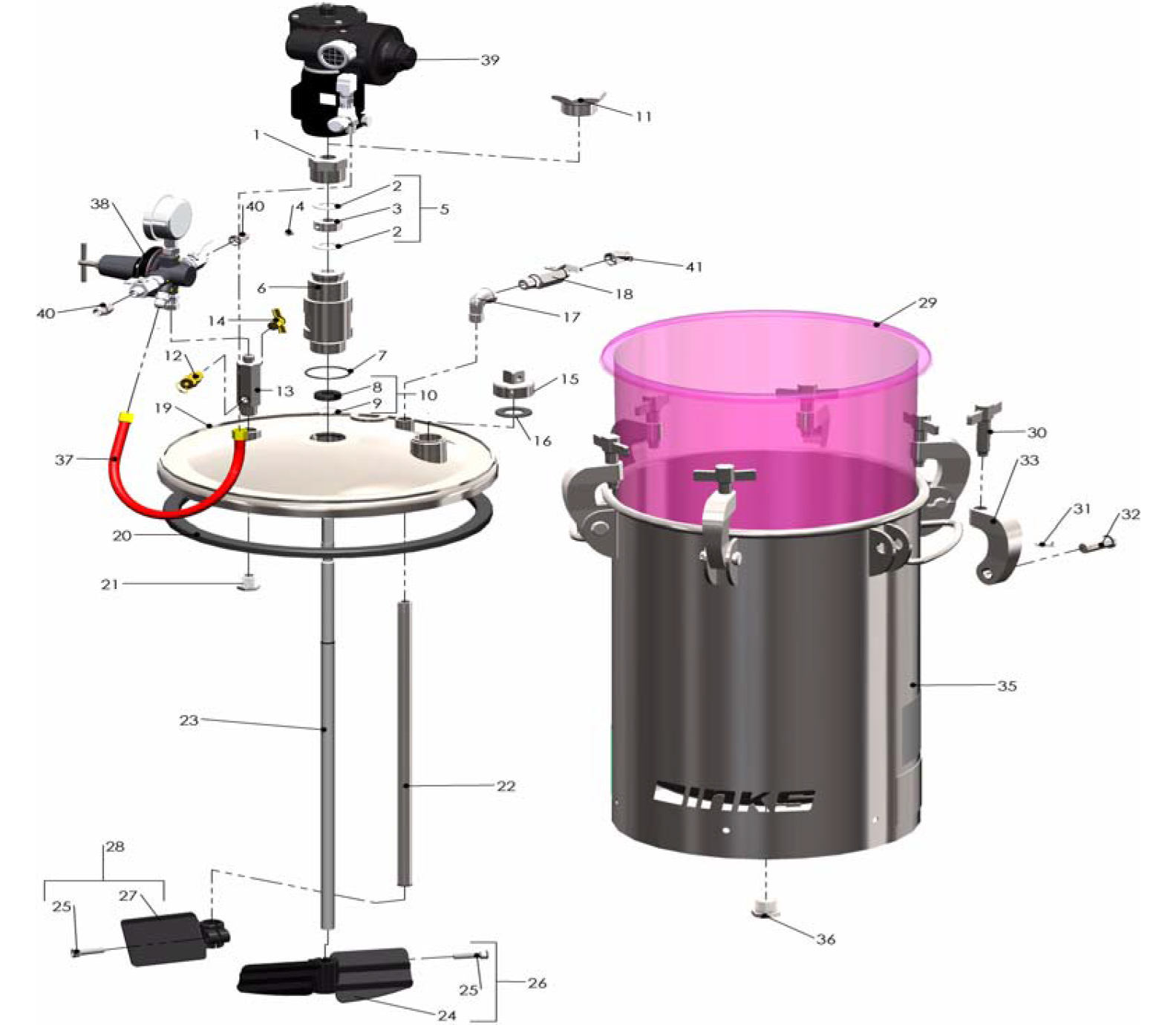

183G-1013 40L/11.8 gal tank (Galvanized)

binks części

Ref. Part no. Description
1 QMS-46 Retaining Nut
2 QMG-85 Thrust Washer
3
Thrust Collar
4
Set Screw (5/16-18 x 3/8)
5 QMS-447 Thrust Collar Kit (inc 4 & 5)
6 QMG-409 Bearing Assy-Plain Steel
7 SSG-8184-K2 O-ring (Pack of 2)
8
Shaft Seal
9
Internal Retaining Ring
10 KK-5042 Shaft seal kit
11 QMG-19 Plug (Non-agitated Models Only)
12 TIA-4110-CE Safety Valve Assy 110 psi
13 QMG-21 Air manifold
14 SS-2707 Air relief valve
15 83-524-K Fill Port Cap (inc Item 16)
16 83-1207-K5 Fill Port Cap Gasket
17
Street Elbow, 3/8-18 NPT (Brass)
18 VA-540 Ball Valve, 3/8 NPS Outlet
19 QMG-402-1 Tank Lid
20 QM-1458-1 Tank Gasket
21
Plug, 1/2-14 NPT (Plated Steel)
22 QMG-33 Fluid Tube
23 QMG-29 Agitator Shaft
24
Agitator Paddle
25
Soc Head Cap Screw, 5/16-18 x 1-1/4, S.S
26 QMS-444-CE Agitator Paddle Kit (inc 24 & 24)
27
Stationery Paddle
28 QMS-455-CE Stationery Paddle Kit (inc 25 & 27)
Ref. Part no. Description
29 PTL-412-K8 Disposable Tank Liner, 10-Gal
30 QM-1352-CE Thumb Screw (See item 34)
31 SSN-2404-ZN Cotter Pin, 1/8” Dia. x 1” LG. (See item 34)
32 QMG-38-CE Clevis Pin (See item 34)
33 QMG-9-CE Clamp (See item 34)
35 QMG-510-1 Tank & Lug Assy, 10 Gal
36
Bottom Plug
37 HA-57011 Air Hose Assy (incl with item 39)
38 85-470 Air Control - Non Agitated Tanks

85-471 Air Control - With Agitators
39 QS-5012-CE Air Motor/Gearbox Drive
40 CT-453 1/4 inch NPSM to 1 inch BSP adapter (only with BSP models sup plied)
41 CT-454 3/8 inch NPSM to 3/8 inch BSP adapter (only with BSP models supplied)

KK-4977 Regulator Repair kit

pasek binks
części binks

Ref. Part no. Description

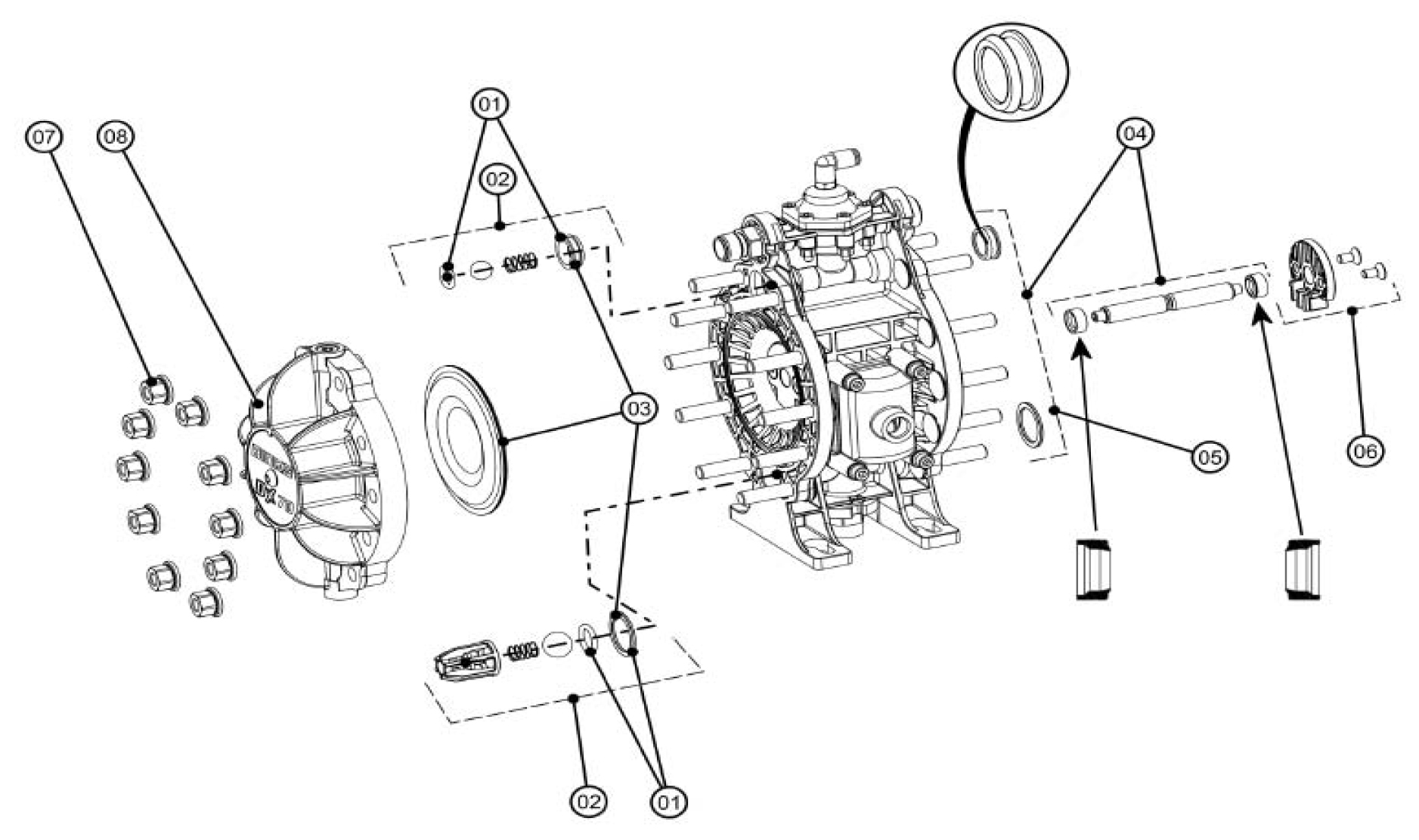

1 DXK-1 Check valve seal kit x 4
2 DXK-2 Check valve kit x 4
3 DXK-3 Diaphragm kit x 2
4 DXK-4 Shaft & seal kit
5 DXK-5 End cap seal kit x 2
6 DXK-6 Caps & screws x 2
7 DXK-7 End cap nuts x 10
8 DXK-8 End cap

pasek binks

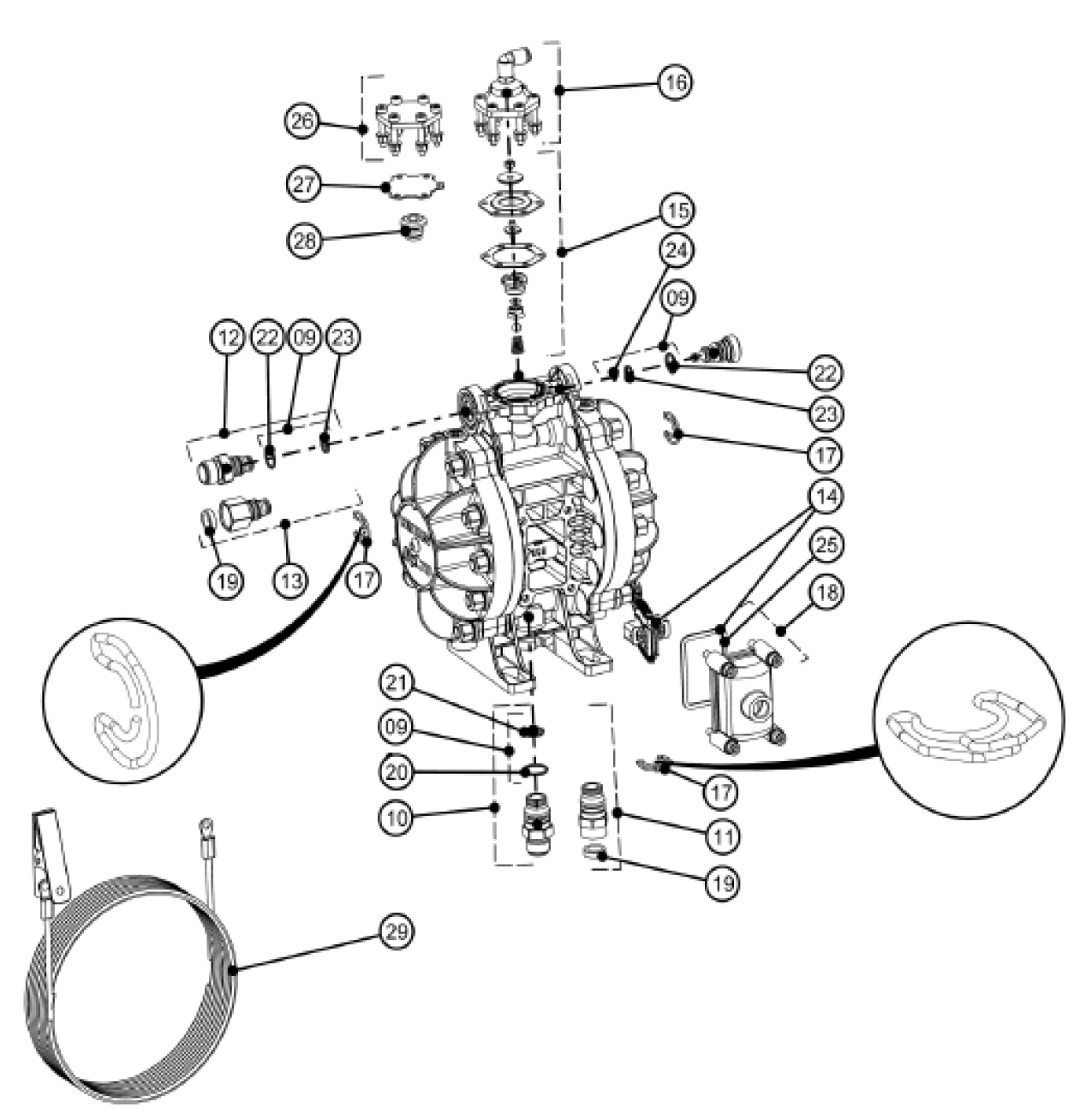

DX70 Bare Pump

binks części

Ref. Part no. Description
9 DXK-9 Inlet, outlet & plug connector seal kit
10 DXK-10 Male inlet connector kit
11 DXK-11 Female inlet connector kit
12 DXK-12 Male outlet connector kit
13 DXK-13 Female outlet connector kit
14 DXK-14 Air valve kit
15 DXK-15 Fluid regulator kit
16 DXK-16 Regulator cap & screws
17 DXK-17 Inlet (x 2) & outlet (x 2) clips
18 DXK-18 Cover, seal & screws
19 DXK-19 Female inlet/outlet thread seal x 4
20 DXK-20 O-ring x 5
21 DXK-21 O-ring x 5
22 DXK-22 O-ring x 5
23 DXK-23 O-ring x 5
24 DXK-24 O-ring x 5
25 DXK-25 Gasket x 4
26 DXK-26* Blanking plate & screws
27 DXK-27* Blanking gasket x 4
28 DXK-28* Insert
29 0114-011798 Grounding cable 4m

pasek binks

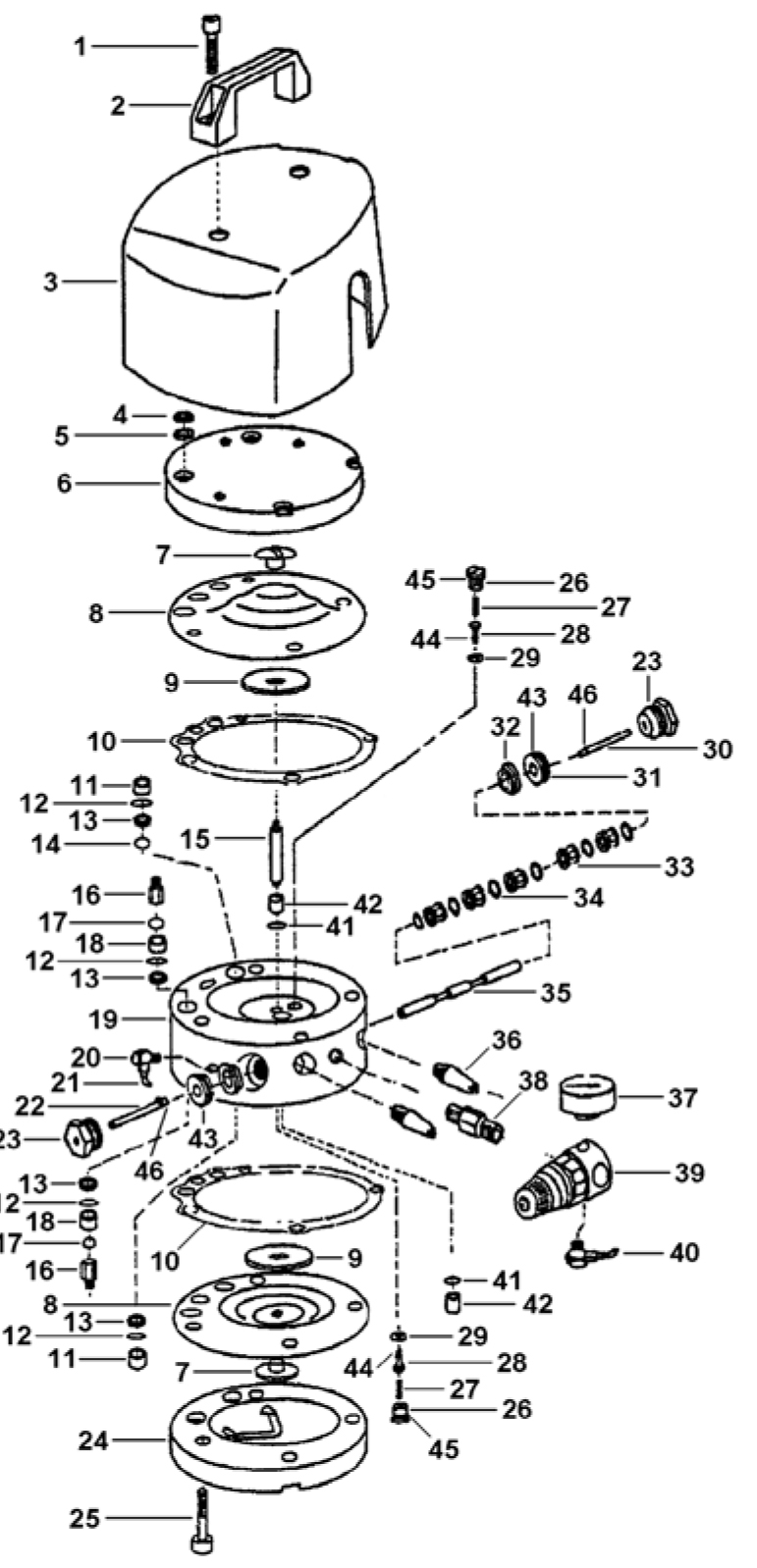

Binks DVP-510 (standard/solvent paints)

binks części

Ref. Part no. Repair Kit Description
1 SSF-3153-ZN
Cap screw
2 ZZ-1617-D
Handle
3 DVP-22
Plastic cover
4 SSF-8151
Nut
5 ZZ-1660-D
Disc spring
6 DVP-131
Top plate
7 DVP-220 B Retainig nut
8 DVP-406 B Diaphragm
9 DVP-221 B Pressure plate
10 DVP-114 A/B/ Gasket
11 DVP-79
Bushing
12 DVP-3 C O-ring
13 DVP-76 C Ceramic valve seat
14 DVP-82 C Ball 16 mm PTFE

DVP-86 C Ball 16 mm PU
15 DVP-222 B Pin
16 DVP-75
Stud
17 DVP-84 C Ball 14 mm PTFE

DVP-85 C Ball 14 mm PU
Ref. Part no. Repair Kit Description
18 DVP-136-H C Bushing
19 DVP-83-AN
Body
20 SSP-6462
Swivel elbow
21 S-1817
Nylon tube
22 DVP-5 F Manual restart
23 DVP-9-W F Distributor nut
24 DVP-130-AN
Bottom plate
25 SSF-3152
Cap screw
26 DVP-28 E Retaining nut
27 DVP-13 E Spring
28 DVP-55 E Reverse
29 LUX-32 E O-ring
30 DVP-8 F Manual restart stem with snap ring
31 DVP-46 F Air valve piston
32 DVP-6 F Sleeve nut
33 DVP-10 F Cylinder
34 ZZ-1604-D F O-ring
35 DVP-11 F Slide valve
36 DVP-17
Air muffler
37 DVP-31
Manometer
38 DVP-20
Double nipple
39 DVP-30
Pressure regulator
40 DVP-35
Swivel elbow
41 SSG-8174 B O-ring
42 DVP-125 B Bushing
43 DVP-45 F Quad ring
44 DVP-33 E Quad ring
45 SS-2393 E O-ring
46 ZZ-1609-D
Grounding ring

Akcesoria

MSG-21 Air Inlet universal1/4˝
DVP-52-1 Bypass valve
DVP-37 Cover
DVP-2-W Intake tube
41-2661 Filter strainer 1/2” (Stainless steel)
SS-10-D Screw
DVP-50 Wall holder
DVP-41 Suction hose assy.
DVP-154-A Material filter 144 mµ

Zestaw naprawczy

B KK-4630 Diaphragms and stud kit
C KK-4631 Fluid valve kit (standard)
E KK-4633 Reverse control switch
F KK-4634 Pneumatic distributor kit

pasek binks

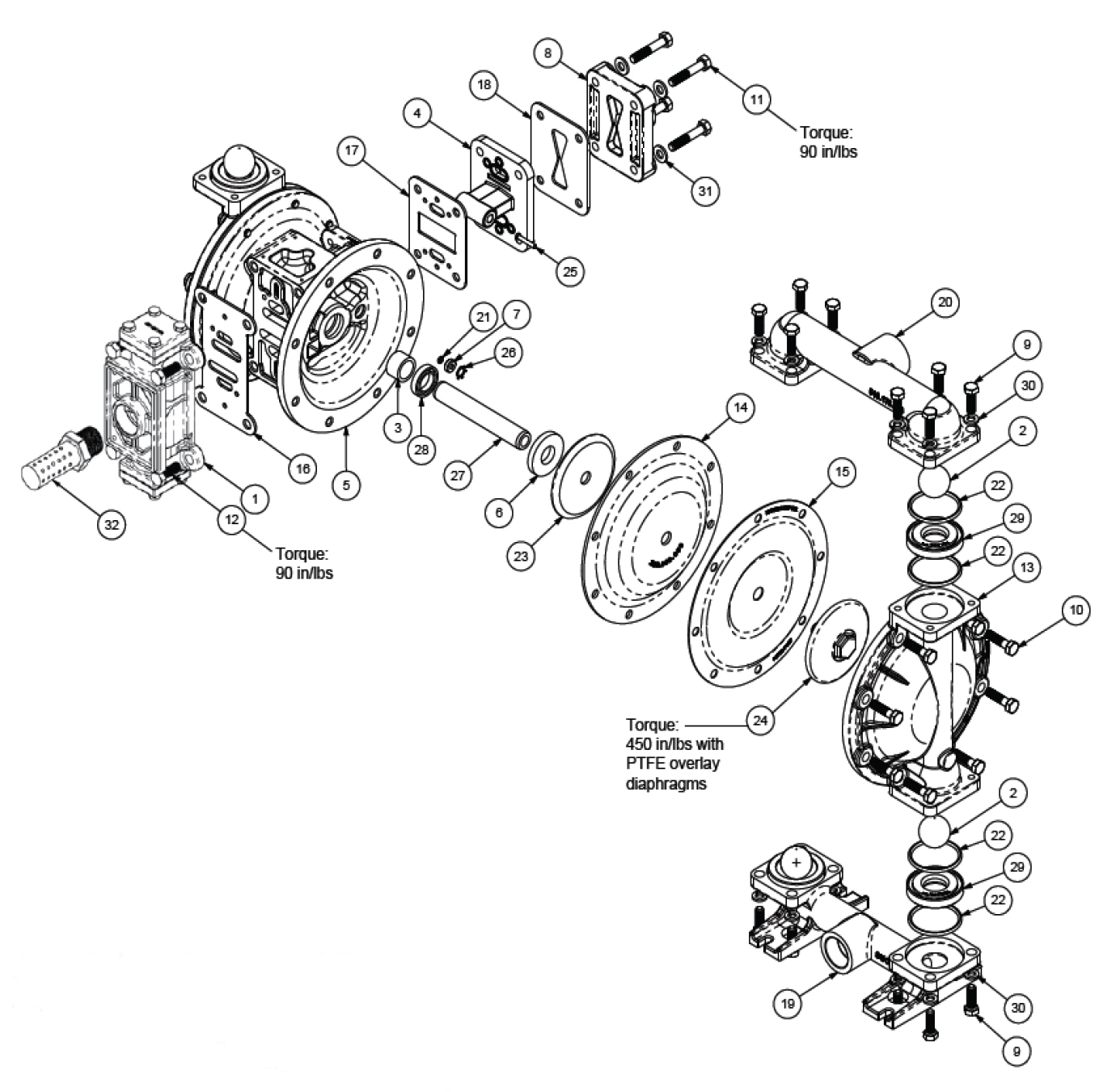

41-818820/41-818822 1” Transfer Pumps

binks - części
Ref. Description
1 Air valve assembly
2-3 Check ball
4 Pilot valve assmebly
5 Intermediate
6-1 Bumper
7-1 Bushing
8 Air inlet assembly cap
9 Hex HD 5/16-18 x 1.00 cap screw
10 Hex HD 5/16-18 x 1.25 cap screw
11 Hex HD 5/16-18 x 1.75 cap screw
12 Hex HD 3/8-16 x 1.00 cap screw
13 Outer chamber
14-2 Diaphragm
15-2 Overlay diaphragm
16-1 Air valve gasket
17-1 Pilot valve gasket
18-1 Air inlet cap gasket
19 Suction manifold

Suction manifold (1” BSP tapered)
20 Discharge manifold

Discharge manifold (1” BSP tapered)
Ref. Description
21-1 O-ring
22-2-3 O-ring
23 Inner diaphragm plate
24 Outer diaphragm assembly plate
25 Actuator pin
26-1 Retaining ring
27 Diaphragm rod
28-1 U-cup seal
29-3 Check ball seat
30 5/16 Lock washer
31 5/16 Flat washer
32 Metal muffler
-1 Items contained within 41-718850 air motor repair kit
-2 Items contained within 41-718853 diaphragm kit
-3 Items contained within 41-718854 ball and seat kit
pasek binks

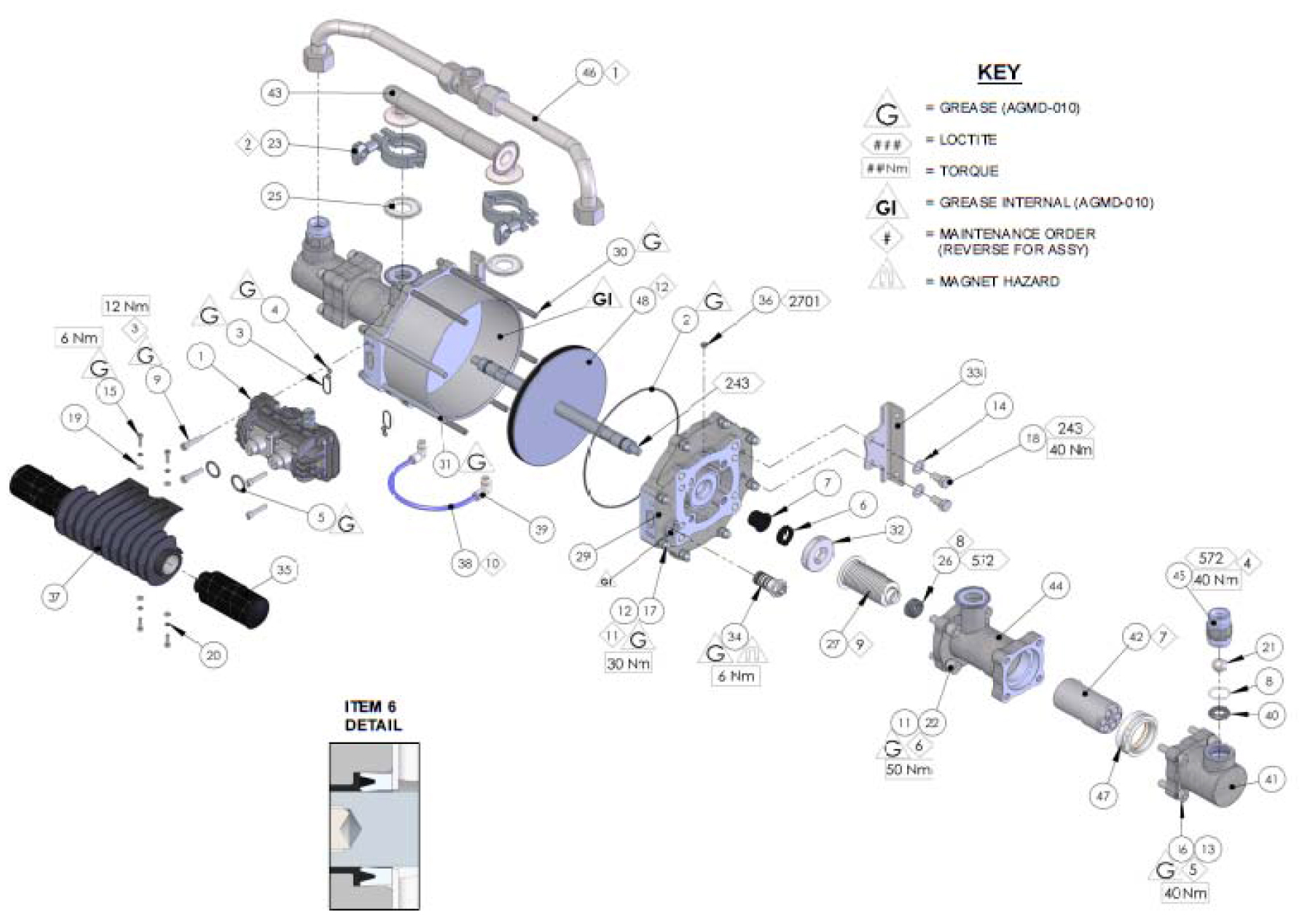

Maple 7/15 Pump

binks częśco

Ref. Part no. Description
1 0115-010102 Air valve assembly
2 161992 O 117.5 x 2.62 Viton o-ring
3 161993 O 20.35 x 1.78 Viton o-ring
4 161994 O 4.47 x 1.78 O-ring
5 161995 O 19.5 x 3.00 O-ring
6 162703 Shaft seal
7 162704 Shaft bearing
8 162746 O 25 x 1.6 O-ring PTFE
9 163920 M6 x 30 Cap HD screw
10 164838 No 2 x 4.75 rivet
11 165044 M12 Spring washer st st
12 165108 M8 Spring washer
13 165123 O 10 Spring washer st st
14 165135 M10 plain washer st st
15 165528 M4 x 16 Cap HD screw (st st)
16 165948 M10 x 40 Cap HD screw (st st)
17 165963 M8 Dome nut
18 165965 M10 x 16 Hex head set screw (st st)
19 165970 M4 Plain washer (st st)
20 165971 O 4 Spring washer (st st)
21 171714 3/4 Ball 440C
22 177009 M12 x 35 Cap head screw
23 192009 1 & 1 1/2 Sanitary clamp
24 192147 Nameplate
25 192206 1 Sanitary gasket PTFE
26 192374 Retaining nut
27 192579 Knifed bellows
28 192757 Maple cylinder
Ref. Part no. Description
29 192758 End plate
30 192761 Cylinder stud
31 192762 Cylinder stud long
32 192763 Bellows spacer
33 192764 Pump bracket
34 192765 Pilot spool assembly

192773 Pilot spool O-ring
35 192777 1” Muffler
36 192799 Vent plug
37 192812 Exhaust adapter
38 192814 Bellows leak hose
39 192815 1/8R - 6mm plus in elbow
40 193190 Outlet seat
41 193225 Outlet cylinder
42 193357 Piston assembly
43 193360 Inlet manifold
44 193361 Inlet cyclinder
45 193367 Outlet check
46 193419 Outlet manifold assembly
47 193195 Piston seal
48
Air motor piston assembly

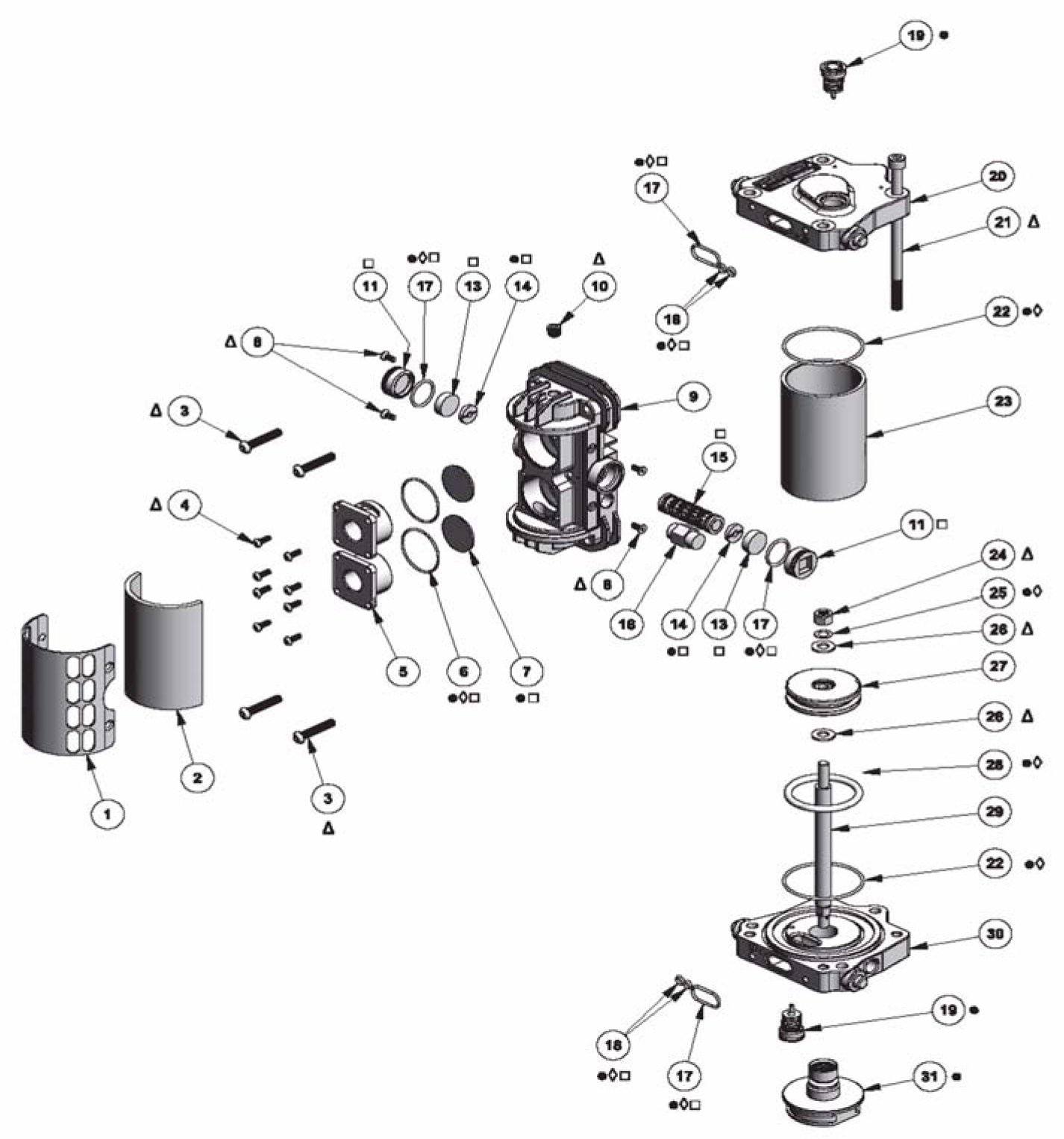

pasek binks
AX55S Use with MX12/05 & MX 4/12

części binks

Ref. Part no. Description Qty Kit
1 0115-010023 Exhaust Cover Screen 1
2 0115-010022 Exhaust Cover 1
3 0115-010026 Button Head Cap Screw 4 D
4 0115-010073 Button Head Cap Screw 8 D
5 0115-010019 Quick Exhaust Valve Cage 2
6 0115-010021 O-ring 2 A/B/C
7 0115-010020 Diaphragm 2 A/C
8 0115-010024 Flat Head Counter Sunk Cap Screw 4
9 0115-010097 Valve Block Assembly 1
10 0115-010107 Pipe Plug 1 D
11 0115-010018 Valve Block End Cap 2 C
13 0115-010017 Magnet 2 C
14 0115-010016 Bumper 2 A/C
15 0115-010015 Spool And Sleeve Assembly 1 C
16 0114-014774 Safety Valve 1
17 0115-010049 O-ring 4 A/B/C
18 0115-010051 O-ring 4 A/B/C
19 0115-010037 Poppet Assembly 2 A
20 0115-010004 Upper End Cap Machining 1
21 0115-010029 Socket Head Cap Screw 4 D
22 0115-010086 Cylinder Seal, 55mm 2 A/B
23 0115-010007 Cylinder, 55mm 1
24 0115-010096 Locknut 1 D
25 0115-010036 Sealing Ring 1 A/B
26 0115-010035 Flat Washer 2 D
27 0115-010085 Piston, 55mm 1
28 0114-010025 Piston Seal,55mm 1 A/B
29 0115-010034 Motor Rod 1
30 0115-010006 Lower End Cap Machining 1
31 0115-010657 Motor Rod Cartridge Assembly 1 B

Zestaw naprawczy

A 0115-010216 Seal Kit
B 0115-010214 Repair Kit
C 0115-010226 Air Motor Valve Repair Kit
D 0115-010213 Hardware Kit

pasek binks

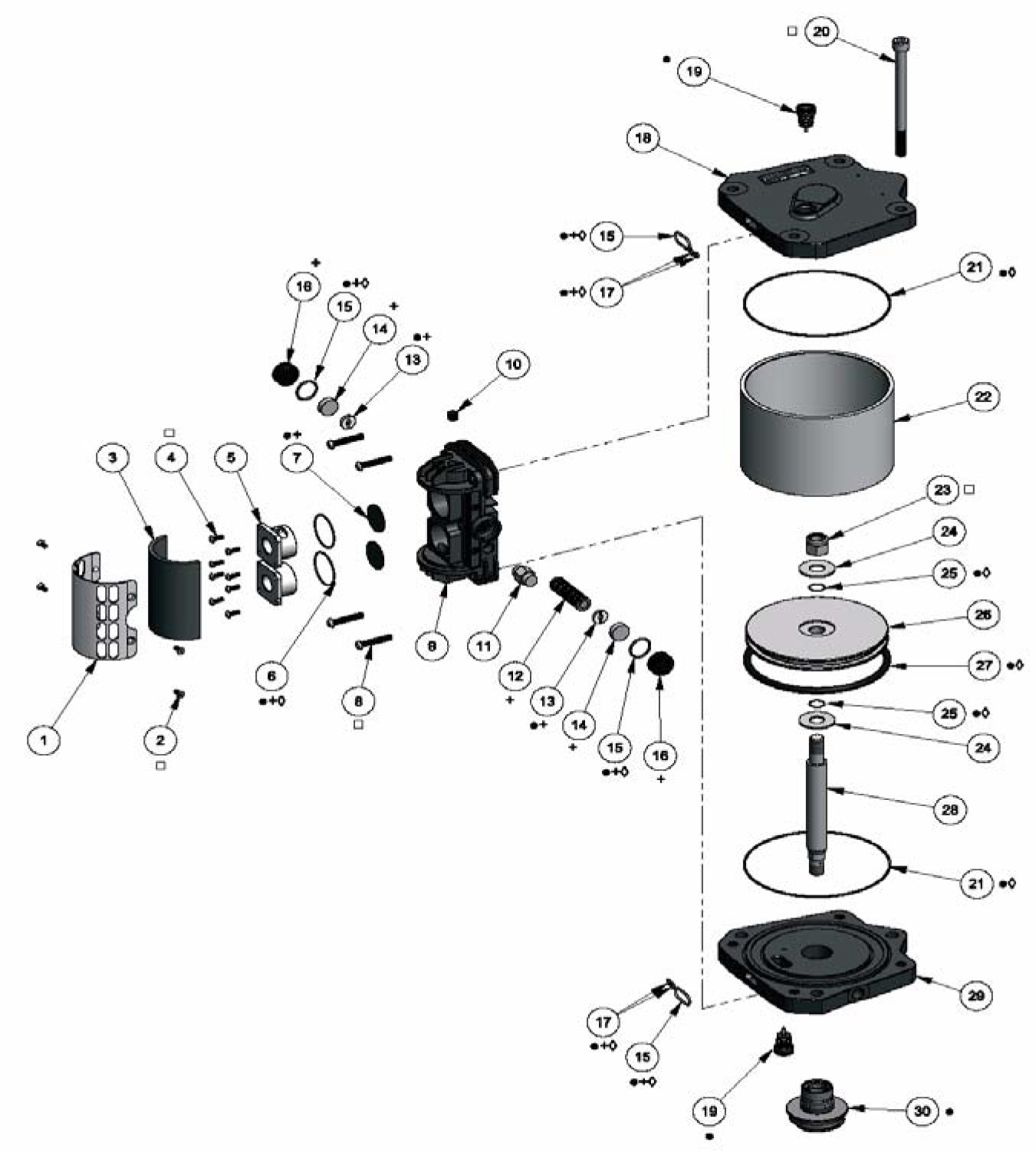

AX140 Use with MX12/31

części binks

Ref. Part no. Description Qty Kit
1 0115-010023 Exhaust Cover Screen 1
2 0115-010024 Flat Head Counter Sunk Cap Screw 4 D
3 0115-010022 Exhaust Cover 4
4 0115-010073 Button Head Cap Screw 8 D
5 0115-010019 Quick Exhaust Valve Cage 2
6 0115-010021 O-ring 2 A/B/C
7 0115-010020 Diaphragm 2 A/B
8 0115-010026 Button Head Cap Screw 4 D
9 0115-010097 Valve Block Assembly 1
10 0115-010107 Pipe Plug 1 D
11 0114-014774 Safety Valve 1
12 0115-010015 Spool And Sleeve Assembly 1 B
13 0115-010016 Bumper 2 A/B
14 0115-010017 Magnet 2 B
15 0115-010049 O-ring 4 A/B/C
16 0114-010018 Valve Block End Cap 2 B
17 0115-010051 O-ring 4 A/B/C
18 0115-010117 Upper End Cap Machining 1
19 0115-010037 Poppet Assembly 2 A
Ref. Part no. Description Qty Kit
20 0115-010124 Allen Head Cap Screw 4
21 0115-010133 O-ring 2 A/C
22 0115-010116 AX140 Cylinder 1
23 0115-010127 Locknut 1 D
24 0115-010131 Washer 2
25 0115-010132 O-ring 2 A/C
26 0115-010128 AX140 Piston 1
27 0115-010129 O-ring 1 A/C
28 0115-010130 AX140 Motor Rod 1
29 0115-010119 Lower End Cap Machining 2
30 0115-010651 Motor Rod Cartridge Assembly 1 A

Zestaw naprawczy

A 0115-010301 Repair Kit
B 0115-010226 Valve Repair kit
C 0115-010302 Seak Kit
D 0115-010300 Hardware Kit

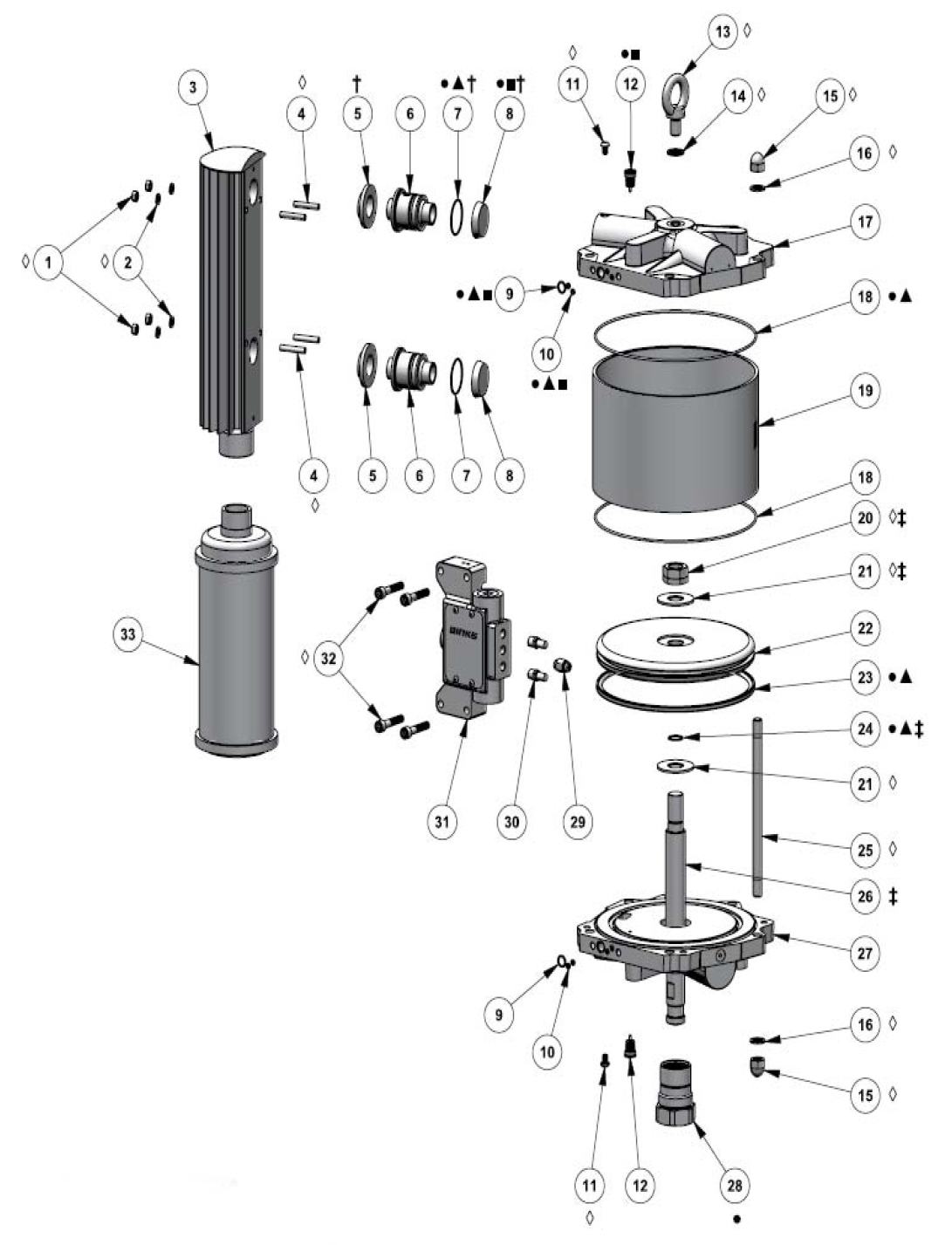

pasek binks
AX260L Use with MX35/35, MX35/60 & MX30/70

binks częsci

ef. Part no. Description Qty Kit
1 192049 M8 Hex nut s.s 4 D
2 165108 M8 Lockwasher s.s 4 D
3 193159 Exhaust manifold assembly 1
4 165994 M8 x 44 stud s.s 4 D
5 193363 Exhaust gasket 2 E
6 193320 Qev cap 2
7 162765 O-ring 2 x 46 2 A/B/E
8 0115-010463 Qev piston 2 A/C/E
9 162766 O-ring 2 x 13 2 A/B/C
10 0115-010051 O-ring 2 x 4 1 A/B/C
11 166000 M8 x 12mm button head screw s.s 2 D
12 0115-010037 Poppet assembly 2 A/C
13 192441 M16 eye bolt 1 D
14 165100 M16 lockwasher s.s 1 D
15 165981 M14 x 2 dome nut s.s 10 D
16 165982 M14 lockwasher 10 D
17 0115-010404 Upper end cap 1
18 162768 O-ring 2 x 261 2 A/B
19 0115-010341 Cylinder 1
20 0115-010348 M24 locknut 1 D/E/F
21 0115-010475 Piston washer 2 D/E/F
22 0115-010346 Piston 1 A/B
23 0115-010351 Glyde ring 1
24 0115-010049 O-ring 2 x 20 1 A/B/F
25 193150 Tie rod 5 D
26 193321 Motor rod 1 F
Ref. Part no. Description Qty Kit
27 0115-010405 Lower end cap 1
28 192849 Motor rod cartridge assembly 1 A
29 0114-014716 Pressure relief valve 72 psi (5 bar) - AX260L-5 1

193538 Pressure relief valve 87 psi (6 bar) - AX260L-6 1

193539 Pressure relief valve 101 psi (7 bar) - AX260L-7 1

0114-014774 Pressure relief valve 116 psi (8 bar) - AX260L-8 1
30 0115-010443 Valve muffler 2
31 0115-010471 Main valve assembly 1
32 165567 M10 x 50 socket head cap screw s.s 4 D
33 192509 Silencer 1
34 165990 M8 x 55 socket head cap screw s.s 4 C/D
35 0115-010456 Manifold 1
36 0115-010460 Gasket 1 A/B/C
37 0115-010425 Valve block end cap 2 C
38 162767 O-ring 2 x 30 2 A/B/C
39 0115-010428 Magnet 2 C
40 0115-010427 Bumper 2 C
41 0115-010431 Spacer 2 C
42 0115-010424 Spool and sleeve assembly 1 C
43 0115-010454 Valve block 1

Zestaw naprawczy

A 250645 Seal kit
B 250648 Cylinder seal kit
C 250649 Valve repair kit
D 250650 Hardware kit
E 250651 Exhaust seal kit
F 250652 Motor rod kit

pasek binks

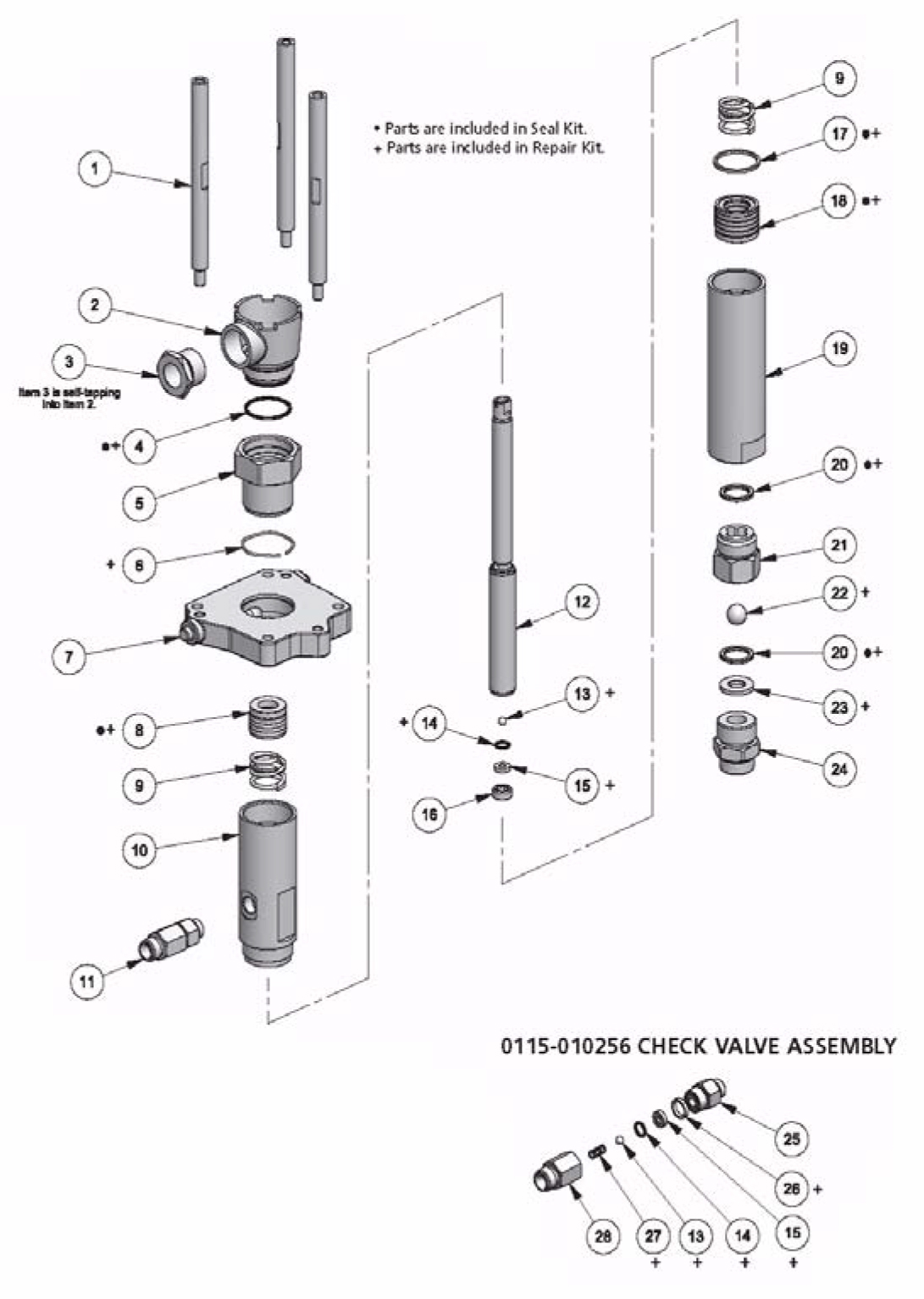

FX4 Use with MX4/12 & MX4/32

części binks

Ref. Part no. Description Qty Kit
1 0115-010646 Pump Tie Rod 3
2 0115-010059 Solvent Cup 1
3 0115-010060 Sight Gauge 1
4 0115-010061 Solvent Cup Seal 1 D/R
5 0115-010062 Packing Adapter 1
6 0115-010058 Wavo Spring 1 R
7 0115-010204 Adapter Plate Machining 1
8 0115-010171 Upper Packing Set (PTFE/Leather) 1 D/R
opt. 0115-010175 Upper Packing Set (PTFE/UHMW) 1 D/R
opt. 0115-010206 Upper Packing Set (PTFE) 1 D/R
9 0115-010111 Packing Spring 2
10 0115-010055 Upper Pump Tube 1
11 0115-010256 Check Valve Assembly 1
12 0115-010063 Pump Rod (Hard Chrome) 1
13 0114-014745 Upper Ball, 6mm 2 R
14 0115-010065 Rod Seat Seal 2 R
15 0115-010066 Rod Seat 2 R
16 0115-010067 Rod Seat Nut 1
17 0115-010064 Lower Pump Tube Seal 1 D/R
18 0115-010173 Lower Packing Set (PTFE/Leather) 1 D/R
opt. 0115-01077 Lower Packing Set (PTFE/UHMW) 1 D/R
opt. 0115-010207 Lower Packing Set (PTFE) 1 D/R
Ref. Part no. Description Qty Kit
19 0115-010056 Lower Pump Tube 1
20 0115-010068 Lower Seat Seal 2 D/R
21 0115-010057 Lower Ball Cage 1
22 0114-014237 Lower Ball, 15mm 1 R
23 0115-010069 Lower Seat 1 R
24 0115-010070 Seat Retainer 1
25 0115-010258 Fluid Outlet Fitting 1
26 0115-010259 Check Seal 1 R
27 0115-010087 Valve Spring 1 R
28 0115-010257 Check Valve Housing 1
29 0115-010099 Rod Clip (Not Shown) 1 R

Zestaw naprawczy

D 0115-010221 Seal Kit (PTFE/Leather)
D 0115-010223 Seal Kit (PTFE)
D 0115-010225 Seal Kit (PTFE/UHMW)
R 0115-010222 Repair Kit (PTFE/Leather)
R 0115-010224 Repair Kit (PTFE)
R 0115-010388 Repair Kit (PTFE/UHMW)

pasek binks
FX12 Use with MX12/05, MX12/12 and MX12/31)

Ref. Part no. Description Qty Kit
1 0115-010232 Solvent Cup 1
2 0115-010294 Sight Glass 1
3 0115-010231 O-ring 1 D/R
4 0115-010141 Upper Packing Retainer 1
5 0115-010205 Pump Adapter Plate 1
6 0115-010143 Pump Tube Seal 2 D/R
7 0115-010261 Upper Packing Set (PTFE/Leather) 1 D/R
opt. 0115-010263 Upper Packing Set (PTFE) 1 D/R
opt. 0115-010265 Upper Packing Set (PTFE/UHMW) 1 D/R
8 0115-010152 Packing Spring 2
9 0115-010137 Upper Pump Tube 1
10 0115-010269 Check Valve Assembly 1
11 0115-010142 Pump Rod (Hard Chrome) 1
12 0114-014022 Upper Ball (10mm) 2 R
13 0115-010144 Upper Seat Seal 3 D/R
14 0115-010145 Upper Seat 2 R
15 0115-010146 Upper Seat Retainer 1
16 0115-010262 Lower Packing Set (PTFE/Leather) 1 D/R
opt. 0115-010264 Lower Packing Set (PTFE) 1 D/R
opt. 0115-010266 Lower Packing Set (PTFE/UHMW) 1 D/R
17 0115-010138 Lower Pump Tube 1
18 0115-010140 Lower Ball Cage Seal 1 D/R
Ref. Part no. Description Qty Kit
19 0115-010139 Lower Ball Cage 1
20 0114-014025 18mm Ball 1 R
21 0115-010147 Lower Seat Seal 1 D/R
22 0115-010148 Lower Seat 1 R
23 0115-010149 Fluid Inlet Fitting 1
24 0115-010258 Fluid Outlet Fitting 1
25 0115-010270 Check Valve Spring 1 R
26 0115-010271 Check Valve Housing 1

Zestaw naprawczy

R 0115-010307 Repair Kit (PTFE/Leather)
R 0115-010309 Repair Kit (PTFE)
R 0115-010387 Repair Kit (PTFE/UHMW)
D 0115-010306 Seal Kit (PTFE/Leather
D 0115-010308 Seal Kit (PTFE)
D 0115-010303 Seal Kit (PTFE/UHMW)

pasek binks

części binks

Ref. Part no. Description Qty Kit
1 193295 Packing nut 1
2 162773 O-ring O57mm 1 All
3 193298 Packing spacer - spring load only 1
4 193296 FX220 upper packing assembly (UHMW) 1 4/9

193303 FX220 upper packing assembly (PTFE) 1 3/8

193308 FX220 upper packing assembly (PTFE/Leather) 1 1/6

193313 FX220 upper packing assembly (UHMW/PTFE) 1 2/7

193770 FX220 upper packing assembly (UHMW/Leather) 1 5/10

193502 FX190 upper packing assembly (UHMW/PTFE) 1 14/19

193505 FX190 upper packing assembly (PTFE) 1 13/18

193506 FX190 upper packing assembly (PTFE/Leather) 1 11/16

193507 FX190 upper packing assembly (UHMW) 1 12/17

193772 FX190 upper packing assembly (UHMW/Leather) 1 15/20
5a 193299 Packing loader- spring load only 1
5b 193301 Packing loader - Manual adj. only 1
6 41-28038 Packing spring - 1 for manual adj. 2
7 193326 Upper housing - carbon steel 1

193285 Upper housing - st st 1
8 193294 FX220 lower packing assembly (UHMW) 1 4/9

193305 FX220 lower packing assembly (PTFE) 1 3/8

193310 FX220 lower packing assembly (PTFE/Leather) 1 1/6

193314 FX220 lower packing assembly (UHMW/PTFE) 1 2/7

193771 FX220 lower packing assembly (UHMW/Leather) 1 5/10
Ref. Part no. Description Qty Kit
8 193501 FX190 lower packing assembly (UHMW/PTFE) 1 14/19

193503 FX190 lower packing assembly (PTFE) 1 13/18

193504 FX190 lower packing assembly (PTFE/Leather) 1 11/16

193508 FX190 lower packing assembly (UHMW) 1 12/17

193773 FX190 lower packing assembly (UHMW/Leather) 1 15/20
9 193287 FX220 pump rod 1

193500 FX190 pump rod 1
10 162770 O-ring O27mm 1 All
11 171790 3/4” ball 1 6-10,16-20
12 193288 3/4” ball seat 1 6-10,16-20
13 193289 Seat retainer 1
14 162772 O-ring O62mm 1 All
15 193327 Lower housing - carbon steel 1

193286 Lower housing - st st 1
16 165097 Wasger 4
17 165369 Hex headcap screw 4
18 191791 1-1/2” ball 1 6-10,16-20
19 162771 O-ring O45mm 2 1-9,11-14, 16-19
20 193290 1-1/2” seat assembly 1 6-10,16-19
21a 193334 Fluid inlet (knock off) 1

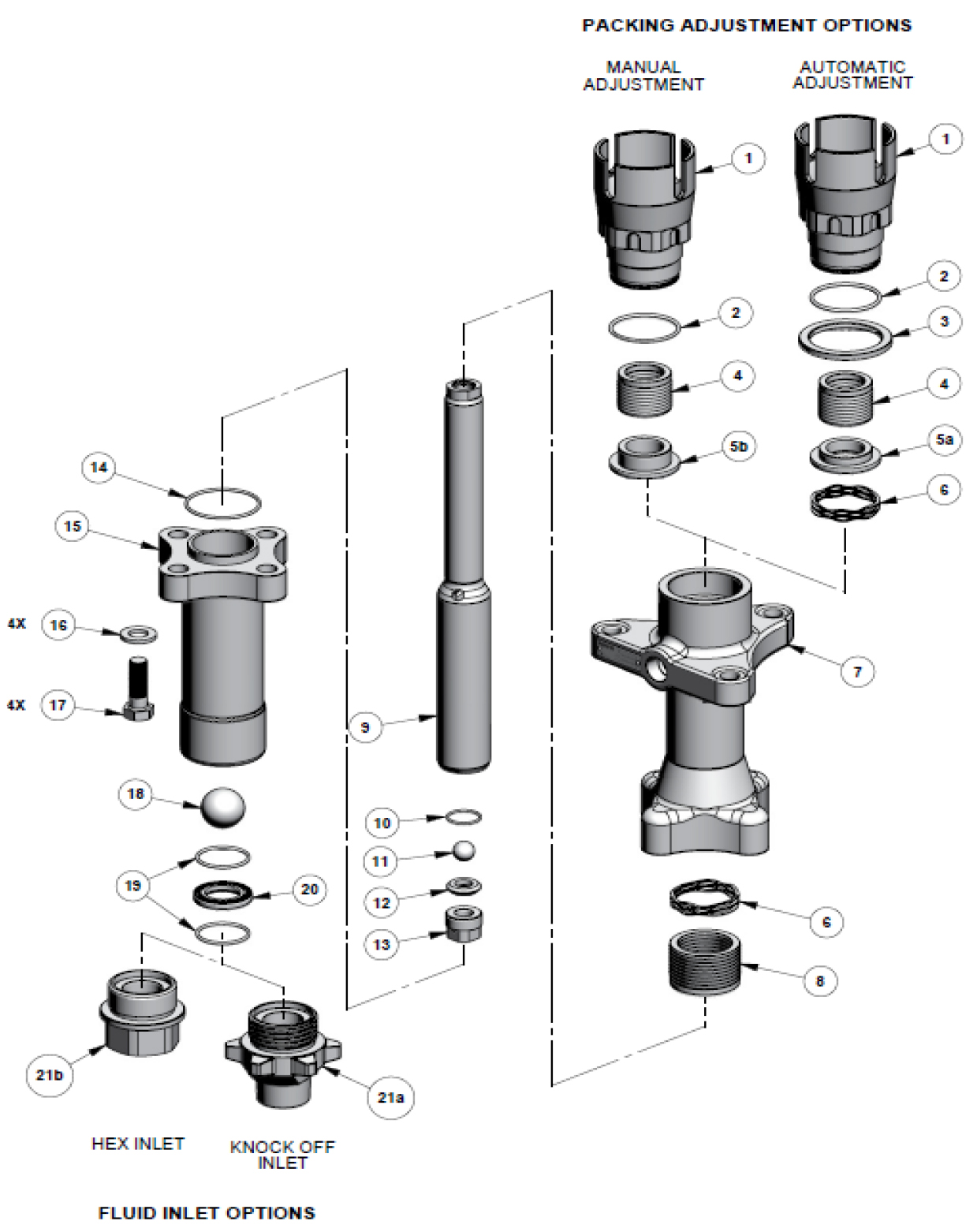

21b 193468 Fluid inet (hex) 1

pasek binks

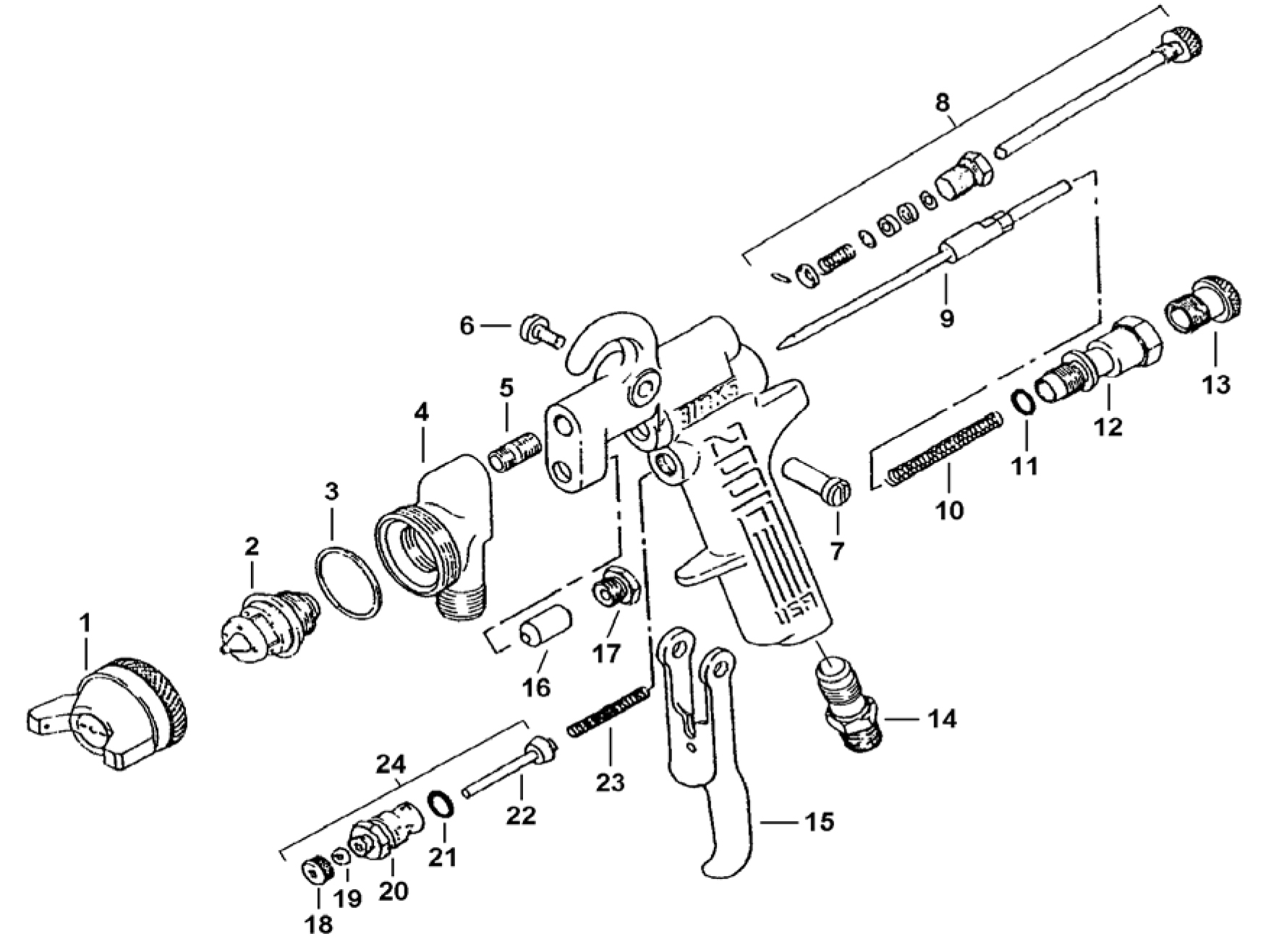

Pistolet lakierniczy ręczny BINKS 2001 S

części binks Pistolet lakierniczy ręczny BINKS 2001 S

Ref. Part no. Description
1 46-6002 Air cap 63PB
2 45-6601 Nozzle 1.2 mm
3 54-918-5 Seal
4
Gun head
5 54-710 Screw
6 82-126-5 Screw
7 54-1020 Pin
8 54-3347 Jet regulator
9 47-56310 Material needle 563A
10 54-1347-5 Spring
11 20-5285-5 O-ring (Pack of 5)
12 54-1013 Body
13 54-1007 Adjusting screw
14 54-768 Air inlet 1/4"
15 54-1050 Trigger
16 2-28-5 Needle packing
17 56-164 Packing screw
18 82-135-5 Nut
19 82-158-5 Packing (Pack of 5)
20 54-1010 Air valve body
21 20-3757 O-ring
22
Air valve cone
23 54-750-5 Spring
24 54-1236 Air valve, compl.

Akcesoria

6-229 Repair kit

Repair kit packing
54-1780 Jet regulator

Pencil/fan jet
54-4133 Cleaning paintbrush
82-469 Cleaning brush
5-476 Gun spanner
6-428 Gun oil (75 ml)

pasek binks

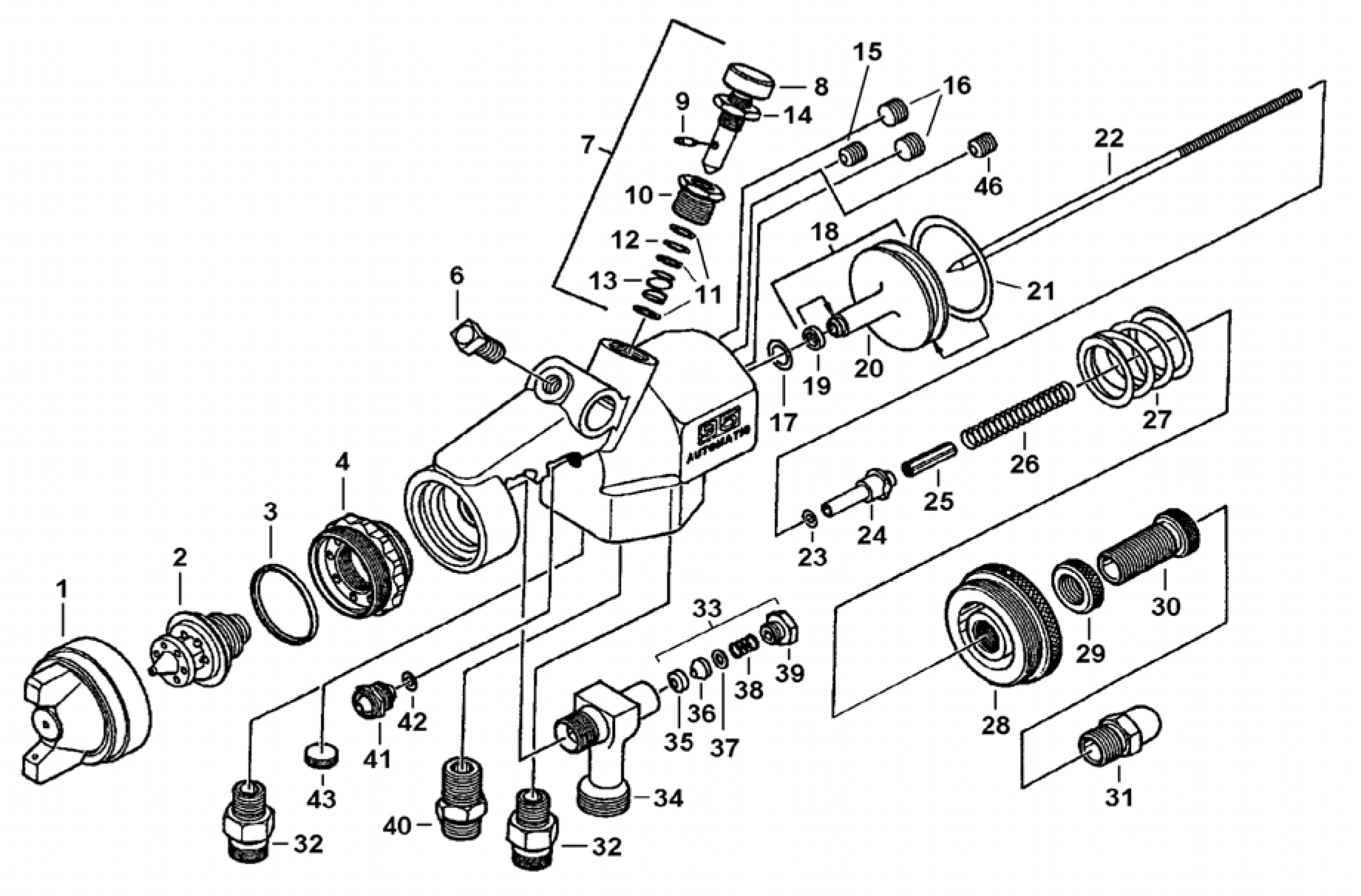

Pistolet automatyczny 95A BINKS

części binks

Ref. Part no. Description
1 46-6002 Air cap 63PB
2 45-6321 Nozzle 1.2 mm
3 54-918-5 Seal
4 54-4215 Head insert
6 20-1359 Screw
7 54-3720 Jet regulator
8 54-3721 Spindle
9 31-258 Locking pin
10 31-256 Insert
11 31-259 Disc
12 20-3620-5 O-ring
13 31-241 Spring
14
Nut
15 20-5589 Plug
16 20-5692 Plug
17 20-5286 O-ring
18 54-3706 Piston unit
19 54-3729 O-ring
20 54-3722 Piston
21 20-4511 O-ring
22 47-763 Needle 763A
23 20-3515-5 O-ring
24 54-3713 Needle body
25 54-3709 Lock nut
26 54-3719 Spring
27 54-3707 Spring
28 54-3708 End cap
Ref. Part no. Description
29 54-3732 Lock nut
30 54-3731 Control knob
31 54-3715 Needle cap
32 71-28 Air inlet 1/4" NPS
33 54-4261 Packing, compl.
34 54-4210 Material inlet
35 54-4264 Packing
36 54-4265 Needle seal
37 54-4266 Disc
38 54-4267 Spring
39 54-4263 Packing screw
40 57-13 Nipple 1/4" NPS
41 54-3716 Air valve
42 20-3859-5 O-ring
43 20-2287-1 Plug
46 20-2141 Screw

Akcesoria

54-4225 Repair kit packing
54-3980 Repair kit
54-4213 Gun spanner
82-469 Cleaning brush
06-428 Gun oil (75 ml)
54-380 Gun holder
54-3691 Gun cover (Pack of 20)

pasek binks

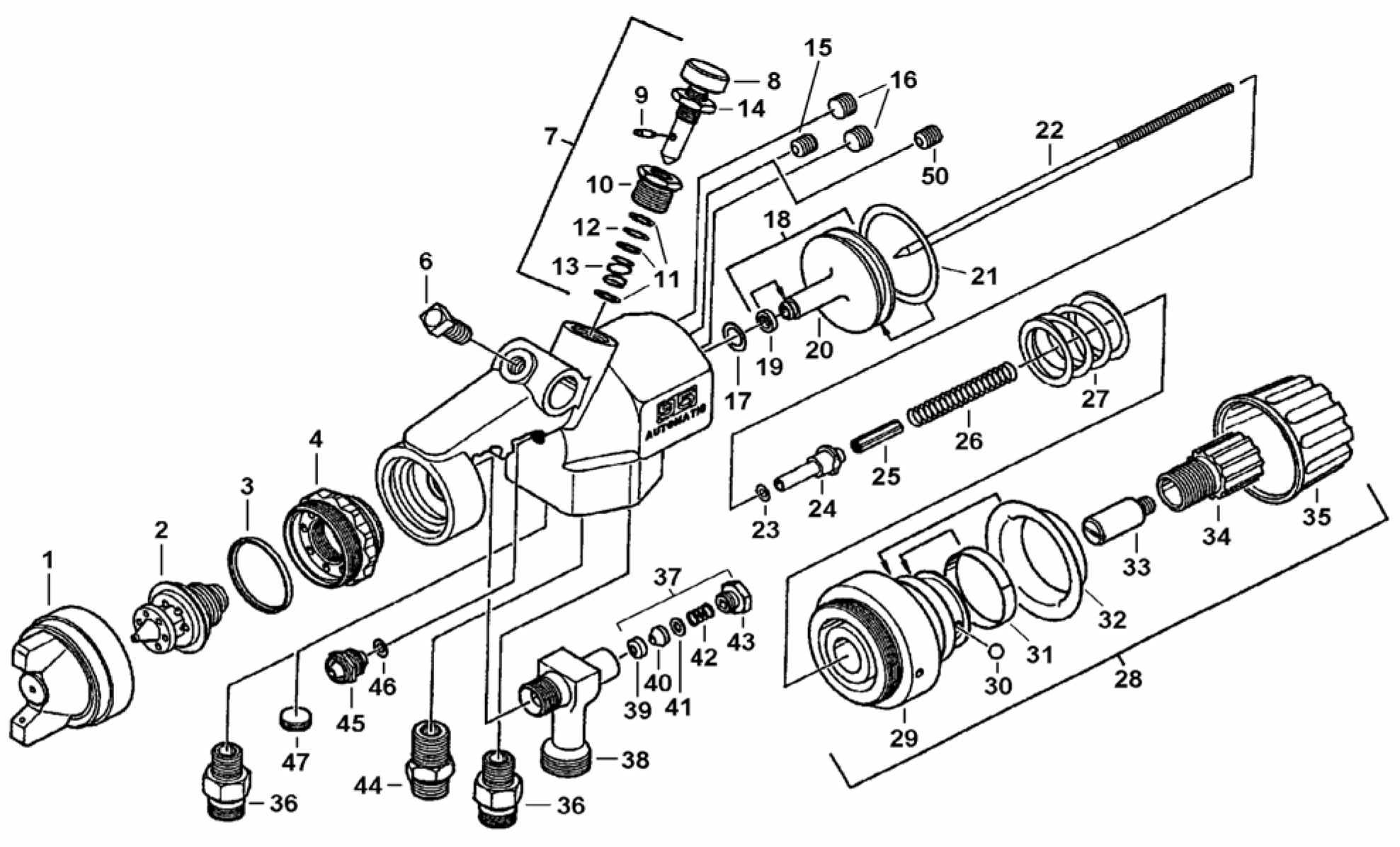

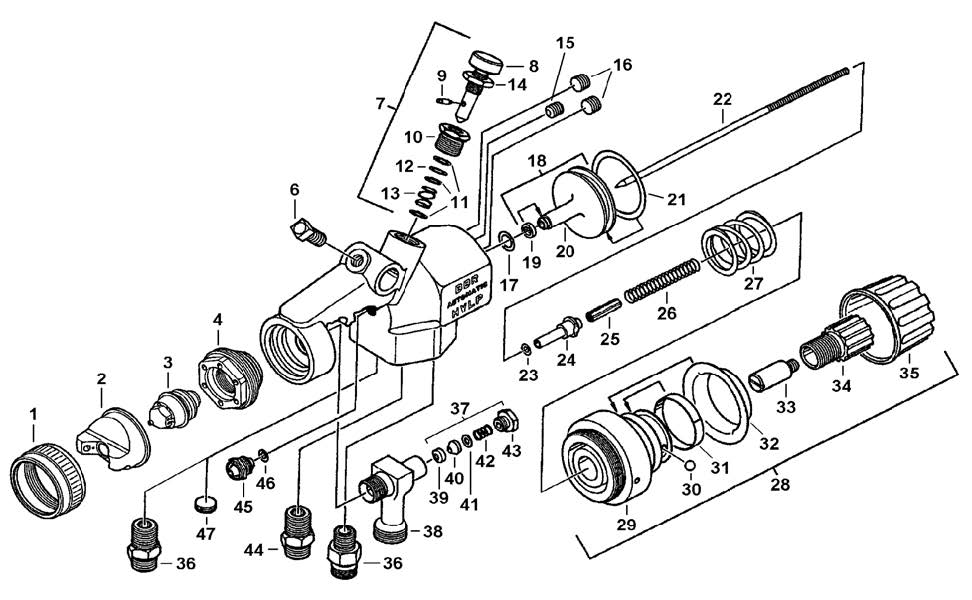

Pistolet automatyczny 95AR BINKS

części binks

Ref. Part no. Description
1 46-6002 Air cap 63PB
2
Nozzle 1.2 mm
3 54-918-5 Seal
4 54-4215 Head insert
6 20-1359 Screw
7 54-3720 Jet regulator
8 54-3721 Spindle
9 31-258 Locking pin
10 31-256 Insert
11 31-259 Disc
12 20-3620-5 O-ring
13 31-241 Spring
14
Nut
15 20-5589 Plug
16 20-5692 Plug
17 20-5286 O-ring
18 54-3706 Piston unit
19 54-3729 O-ring
20 54-3722 Piston
21 20-4511 O-ring
22 47-763 Needle 763A
23 20-3515-5 O-ring
24 54-3713 Needle body
25 54-3709 Lock nut
26 54-1697-5 Spring
27 54-1876 Spring
28 54-3582 Adjusting unit
29
Housing
30 20-2183 Ball
Ref. Part no. Description
31 54-1878 Spring
32 54-1870 Indicator ring
33 54-3583 Screw
34
Ratchet
35
Adjusting cap
36 71-28 Air inlet 1/4" NPS
37 54-4261 Packing, compl.
38 54-4210 Material inlet
39 54-4264 Packing
40 54-4265 Needle seal
41 54-4266 Disc
42 54-4267 Spring
43 54-4263 Packing screw
44 57-13 Nipple 1/4" NPS
45 54-3716 Air valve
46 20-3859-5 O-ring
47 20-2287-1 Plug
50 20-2141 Screw

Akcesoria

54-4225 Repair kit packing
54-3579 Repair kit
54-4213 Gun spanner
82-469 Cleaning brush
6-428 Gun oil (75 ml)
54-380 Gun holder
54-3691 Gun cover (Pack of 20)

pasek binks

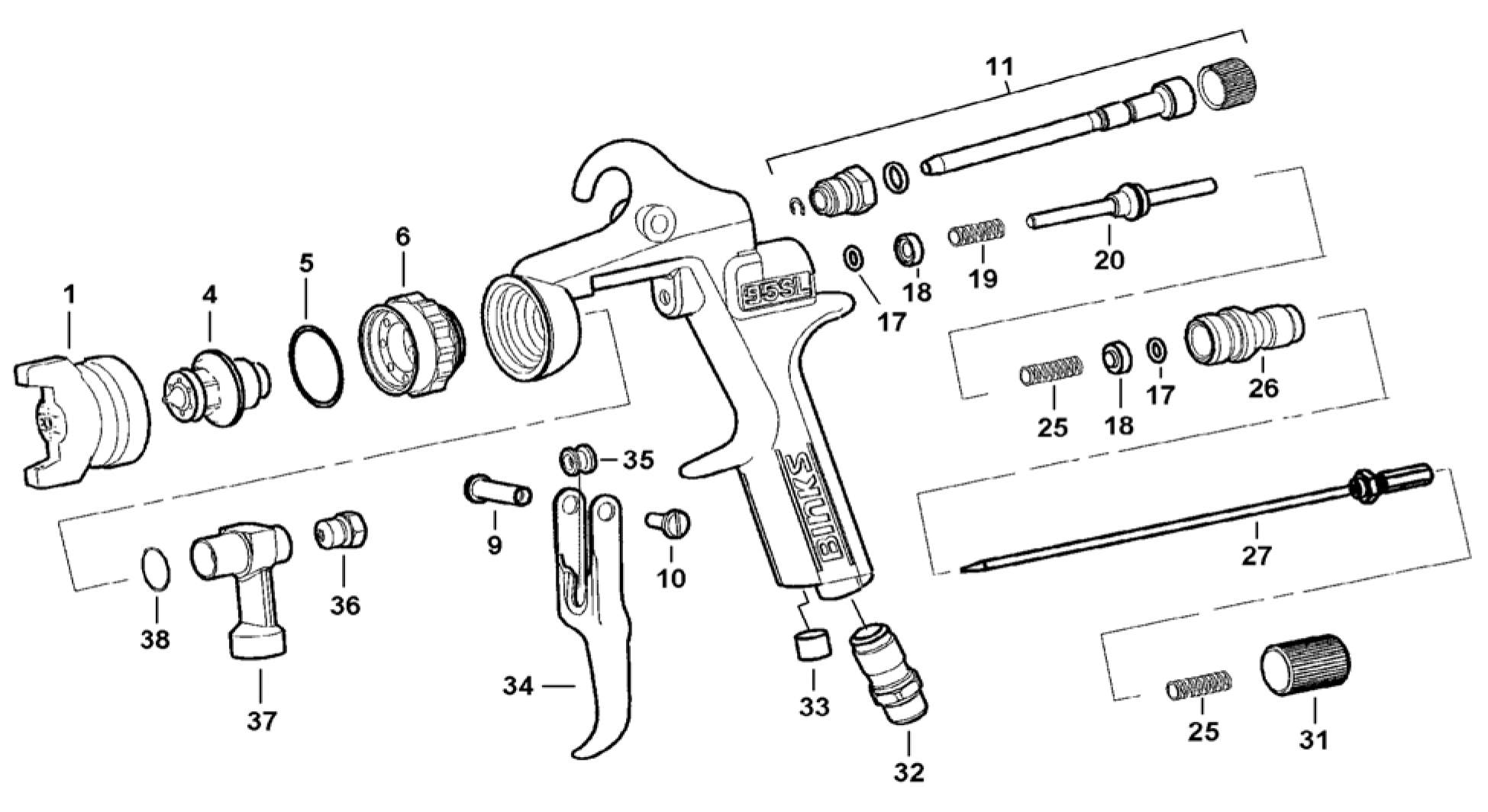

Pistolet ręczny lakierniczy 95SL BINKS

części binks

Ref. Part no. Description
1 46-6002 Air cap 63PB
4 45-6321 Nozzle 1.2 mm
5 54-918-5 Seal
6 54-4215 Head insert
9
Pin
10
Screw
11 54-4557 Jet regulator
17 20-4615-5 O-ring
18 54-3515 Seal retainer housing
19 54-3520 Spring
20 54-3512 Spindle unit
25 54-3518 Spring
26 54-3541 Housing
27 47-86310 Needle 863A
31
Adjusting screw
Ref. Part no. Description
32 54-768 Air inlet 1/4"
33
Plug
34 54-3986 Trigger
35 54-3513 Valve cap
36 54-4370 Packing screw
37 54-4553 Material inlet 3/8" NPS
38 54-3592 Seal

Akcesoria

54-4559 Repair kit
54-4133 Cleaning paintbrush
82-469 Cleaning brush
54-4213 Gun spanner
6-428 Gun oil (75 ml)

pasek binks

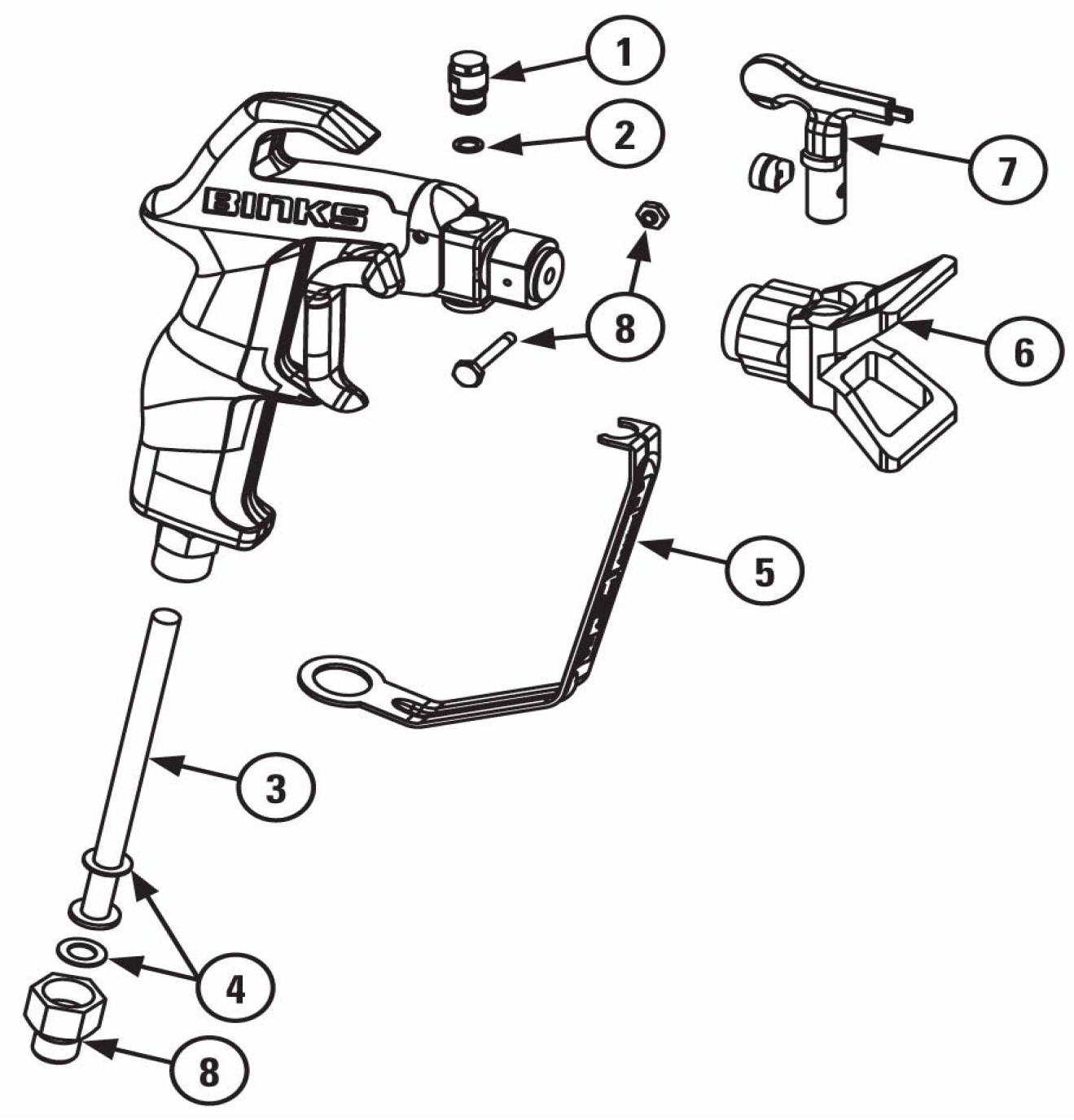

Pistolet lakierniczy ręczny BINKS A3500 (Airless)

części binks

Ref. Part no. Description
1 1108-3575 Valve Cartridge
2 54-5711-K5 Valve Seat Kit
3 54-5730-K5 Fluid Filter 60 Mesh Kit (Qty: 5)

54-5731-K5 Fluid Filter 100 Mesh Kit (Qty: 5)
4 54-5709-K10 Filter Seal Kit (Qty: 10)
5 54-5721 Trigger Guard
6 1108-35B Safety Tip Guard - 3500 psi

1108-35F Flat Tip Guard - 3500 psi
7 9-XXX-35 Spray Twist Tip - 3500 psi (see table)

9-XXXF-35 Spray Flat Tip - 3500 psi (see table)
8 54-5760 Airless Gun Repair Kit (Screw, Nut, Filter Adapter)

Akcesoria

72-2332 Swivel Adaptor 1/4” M x 1/4” F
72-2333 Swivel Adaptor 3/8” M x 1/4” F
52-5203 10” Airless Tip Extension 3500 PSI
52-5204 15” Airless Tip Extension 3500 PSI
52-5205 20” Airless Tip Extension 3500 PSI
52-5206 30” Airless Tip Extension 3500 PSI
52-5207 Airless Swivel Head

pasek binks

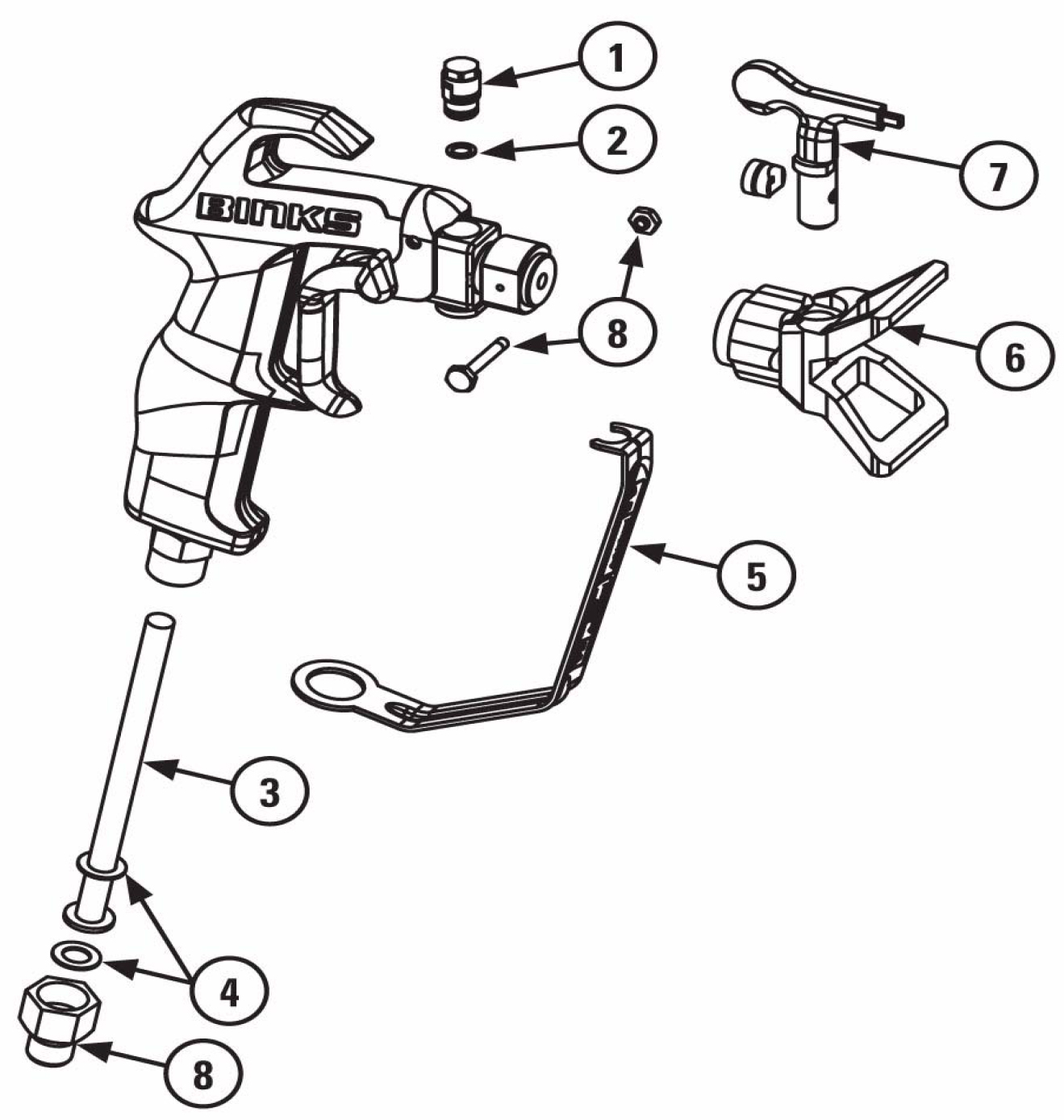

Pistolet lakierniczy ręczny BINKS A7500 (Airless)

części binks

Ref. Part no. Description
1 1108-3575 Valve Cartridge
2 54-5711-K5 Valve Seat Kit
3 54-5730-K5 Fluid Filter 60 Mesh Kit (Qty: 5)

54-5731-K5 Fluid Filter 100 Mesh Kit (Qty: 5)
4 54-5709-K10 Filter Seal Kit (Qty: 10)
5 54-5721 Trigger Guard
6 1108-75B Safety Tip Guard - 7500 psi
7 9-XXX-75 Spray Twist Tip - 7500 psi (see table)
8 54-5760 Airless Gun Repair Kit (Screw, Nut, Inlet Fitting

Akcesoria

72-2332 Swivel Adaptor 1/4” M x 1/4” F
72-2333 Swivel Adaptor 3/8” M x 1/4” F
52-5208 36” Airless Tip Extension 7500 PSI
52-5209 60” Airless Tip Extension 7500 PSI
52-5207 Airless Swivel Head

pasek binks

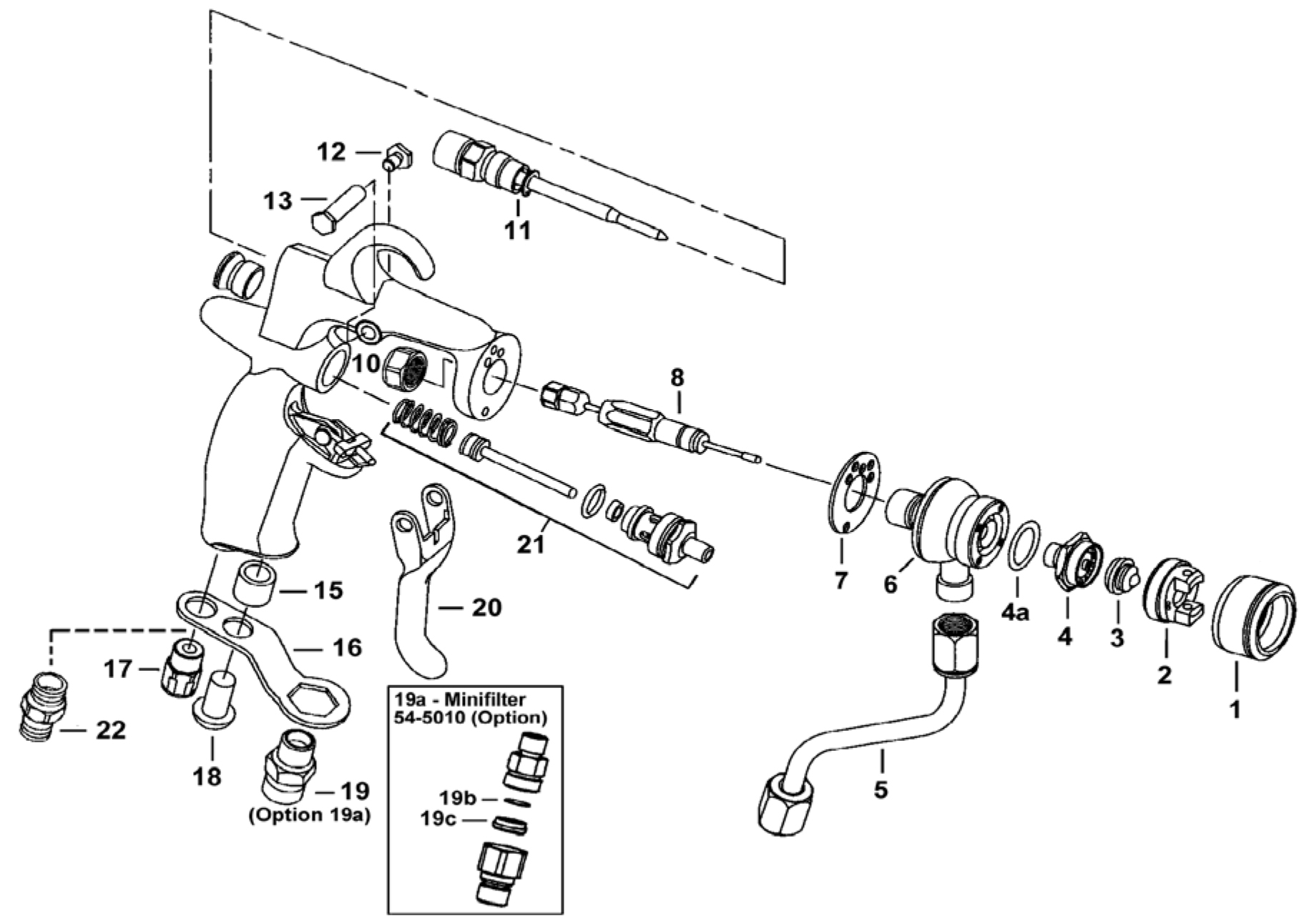

Pistolet lakierniczy ręczny BINKS AA1500

części binks

Ref. Part no. Description
1 54-4955 Retaining ring
2 54-4980 Air cap AA2

54-4978 Air cap AA4
3
Nozzle 0.46 mm
4 54-4926 Pre-atomiser standard

54-4960 Pre-atomiser hard metal
4a 20-6037-K10 O-ring (Pack of 10)
5
Material tube
6 54-4906 Gun head
7 54-4923 Seal
8 54-5446 Material needle with packing
10 54-4925 Nut
11 54-4977 Jet regulating valve
12 54-4939 Screw
13 54-4938 Trigger spindle
15 54-4947 Spacer sleeve
16 54-4943 Bracket
17 54-4975 Plug-in hose connection
18
Screw
19 54-4944 Connection nipple
20 54-4937 Trigger
21 54-4909 Air valve
22 71-28 Double nipple(included in scope of delivery as alternative to Pos. 17)

Akcesoria

19a 54-4725 Material filter, small 100 mesh
19c
Seal (Pack of 5)


Material filter, large 100 mesh with swivel joint

71-220-2 H.P. swivel joint with filter housing 1/4" NPS

7720-01-K3 Disc filter insert fine, 127µ

7720-02 Disc filter insert coarse, 230µ

54-4970 Repair kit (Pos. 4,4a,7,8,10,21)

54-4994 Cleaning kit

30.05.428 Gun oil (75 ml)


Test pressure gauge AA2


Test pressure gauge AA4

pasek binks
Pistolet lakierniczy ręczny BINKS AA4000 (AAA)

części binks

Ref. Part no. Description

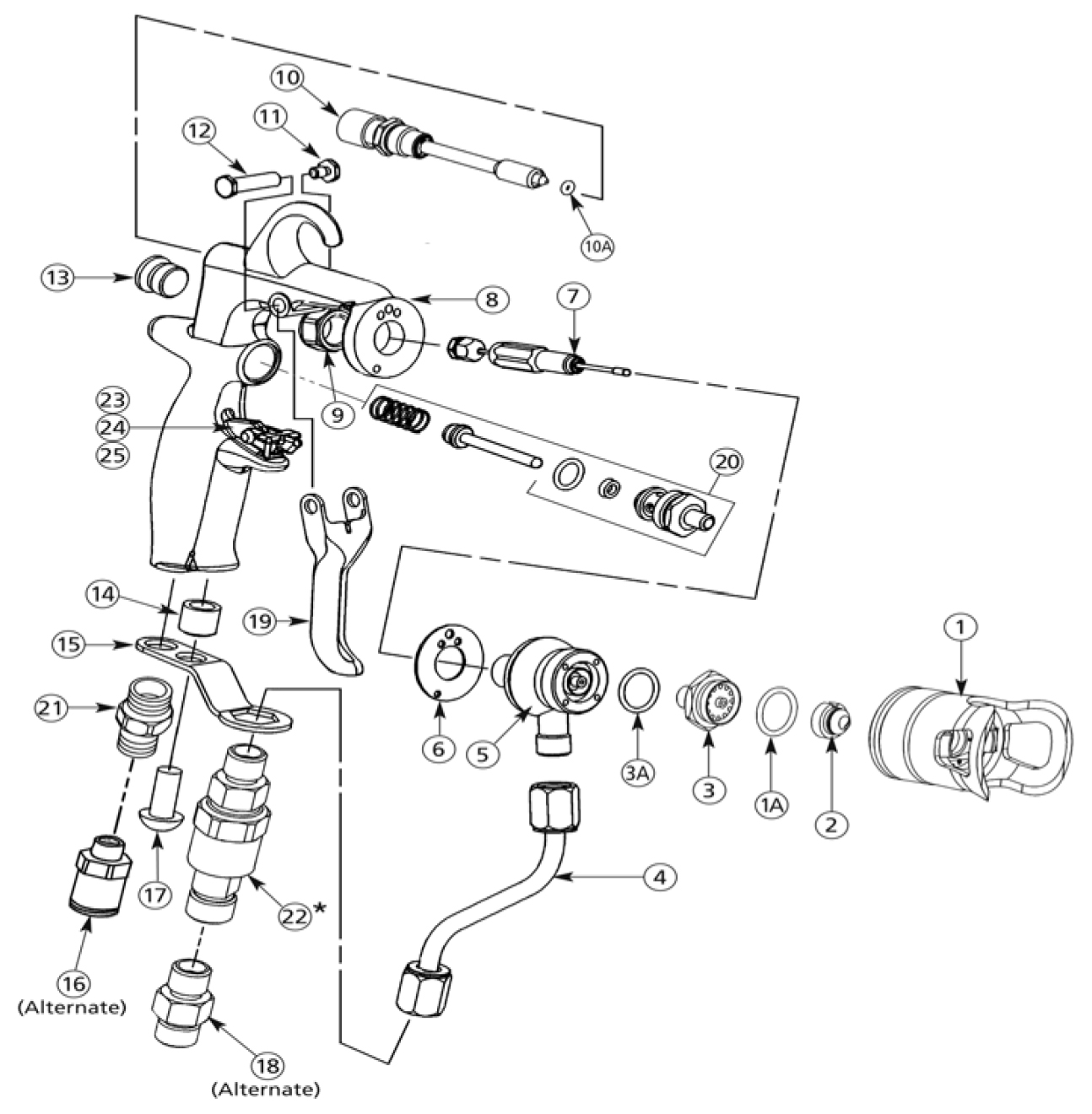

1 54-5345 AA10HP Air Cap/Ring/Guard
1a 20-6784 Fluroelastomer Seal
2 114-0... Premium tip assembly see table
3 54-4960 Fluid seat (tunsten carbide)l

54-4926 Fluid seat UHMW (optional)
3a 20-6037-K10 O-ring (Pack of 10)
4 54-4906 Fluid tube assembly
5 54-4986 Gun head
6 54-4923 Front head gasket
7 54-5447 Needle packing cartridge
8
Gun body
9 54-4925 Fluid inlet nut
10 54-5328 Side port control assembly
10a 20-6785 Fluroelastomer seal
11 54-4939 Trigger screw
12 54-4938 Trigger stud
13
Flat plug
14 54-4947 Fluid tube bracket spacer
15 54-4943 Fluid tube bracket
16 54-4975 Push in Tube Fitting (included in scope of delivery as alternative to Pos. 22)
17
Button head cap screw
18 54-4944 Fluid inlet fitting
Ref. Part no. Description
19 54-4937 Trigger
20 54-4909 Air valve assembly
21 71-28 D.M nipple 1/8” NPT(m) x 1/4” NPS(m)
22 54-4725 Filter assembly 100 mesh
23 54-4910 Trigger lock
24 54-4911 Lock pin
25 54-4912 Safety lock wave spring

Akcesoria


Seal (Pack of 5)

Inline filter housing
71-220-2 H.P. swivel joint with filter housing 1//4˝ NPS
7720-01-K3 Fluid filter insert fine, 127 μ
7720-02 Fluid filter insert coarse, 230 μ
54-4993 Spare kit (Pos. 4, 4a, 7, 8, 10, 21)
54-4994 Cleaning kit
31.05.428 Gun oil (75 ml)

Test pressure gauge AA4

Test pressure gauge AA2

pasek binks

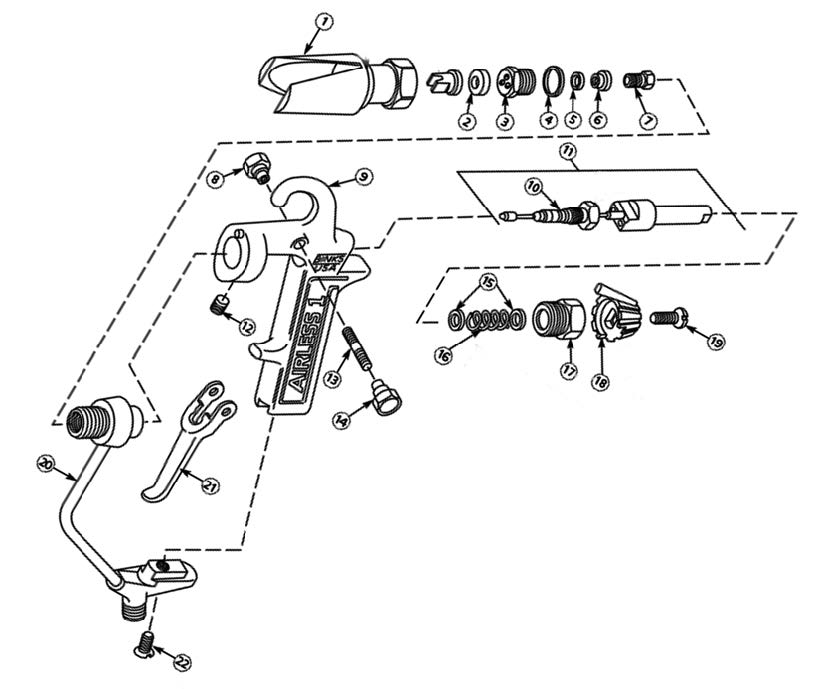

Pistolet lakierniczy automatyczny BINKS Airless 1 (Airless)

części binks

Ref. Part no. Description
1 54-3085 Tip guard assembly
2 54-2229-5 Gasket
3
Diffuser nut
4
Washer
5
Nylon washer (pack of 5)
6 54-3479 Seat
7 54-3481 Screw
8 54-3460 Trigger nut
9
Gun body assembly
10 54-2949 Gland set
11 54-3488 Airless 1 cartridge assembly
12 20-5865 Screw
13 54-3461 Stud
14 54-3460 Trigger nut
15 54-3465 Washer
16 54-2961 Spring
17 54-3466 Guide
18 54-3467 Safety lock
19 20-4965 Screw
20 54-3454 Material body, compl.
21 54-3458 2 finger trigger
22
Screw

Akcesoria

454-3 Tip base
6-236 Repair kit
ZZ-7020 Swivel joint
54-2378 Filter
54-1835 Filter 100 mesh
54-1836 Filter 60 mesh
72-2339 Connection for material circulation

Extension 23 cm*
88-264 Reversing switch
JAC-90-D Cleaning needles (1Pack of 2)

pasek binks
Pistolet lakierniczy ręczny HAP50D BINKS

Ref. Part no. Description
1 0114-013612 Valve seat
2 0114-013825 Gasket
3 0114-014051 Valve needle
4 0114-013759 Insert
5 0114-013823 Seal
6 0114-013615 Packing compl.
7 0114-013770 Packing screw
8 0114-013835 Gasket
9 0114-013771 Nut
10 0114-013764 Gun body assembly
11 0114-013853 Bearing sleeve
12 0114-014190 Threaded pin
13 0114-013775 Pressure plug
14 0114-013774 Guide sleeve
15 0114-013778 Screw set
16 0114-014072 Compression spring
17 0114-014067 Compression spring
18 0114-013762 Locking screw
19 0114-014169 Screw
20 0114-014108 Trigger guard
21 0114-014167 Washer
22 0114-014166 Screw
23 0114-014689 Roller
24 0114-013639 Trigger
Ref. Part no. Description
25 0114-014111 Trigger guard
26 0114-014172 Spring washer
27 0114-014076 Threaded pin
28 0114-014688 Axle, lower
29 0114-013852 Axle, upper
30 0114-013579 Swivel joint 1/4˝
32 0114-013844 Handle
33 0114-013845 Gasket
34 0114-013836 Gasket

Akcesoria

454-5 Tip base
0114-013559 Seal kit (Pos. 2,5,6,8,31,33,34)
0114-013560 Repair kit (Pos. 1,2,3,5,6,8,31,33,34)
00-00-0001320 Filter 200 mesh, red (Pack of 10)
00-00-0001319 Filter 100 mesh, yellow (Pack of 10)
00-00-0001318 Filter 50 mesh, white (Pack of 10)
0114-018490 Tool set

pasek binks

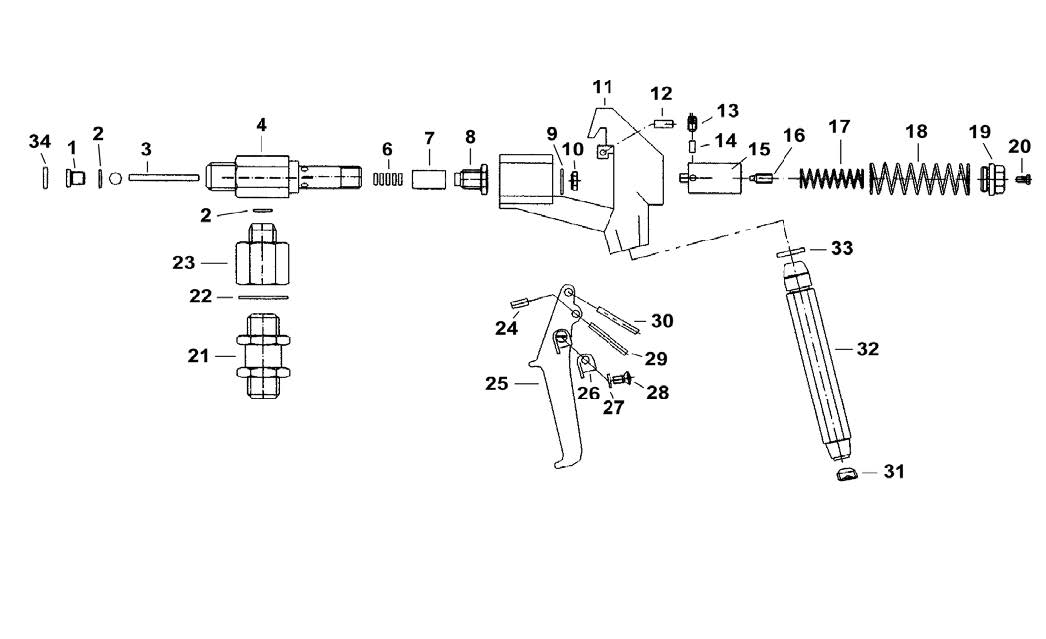

Pistolet lakierniczy ręczny BINKS HAP 50F (Airless)

części binks

Ref. Part no. Description
1 0114-013612 Valve seat
2 0114-013825 Gasket
3 0114-014051 Valve needle
4 0114-013759 Insert
5 0114-013823 Seal
6 0114-013615 Packing compl.
7 0114-013770 Packing screw
8 0114-013835 Gasket
9 0114-013771 Nut
10 0114-013764 Gun body assembly
11 0114-013853 Bearing sleeve
12 0114-014190 Threaded pin
13 0114-013775 Pressure plug
14 0114-013774 Guide sleeve
15 0114-013778 Screw set
16 0114-014072 Compression spring
17 0114-014067 Compression spring
18 0114-013762 Locking screw
19 0114-014169 Screw
20 0114-014108 Trigger guard
21 0114-014167 Washer
22 0114-014166 Screw
23 0114-014689 Roller
24 0114-013639 Trigger
Ref. Part no. Description
25 0114-014111 Trigger guard
26 0114-014172 Spring washer
27 0114-014076 Threaded pin
28 0114-014688 Axle, lower
29 0114-013852 Axle, upper
30 0114-013579 Swivel joint 1/4˝
32 0114-013844 Handle
33 0114-013845 Gasket
34 0114-013836 Gasket

Akcesoria

454-5 Tip base
0114-013560 Repair kit (Pos. 1,2,3,6,9,34)
0114-018490 Tool set

pasek binks

części binks

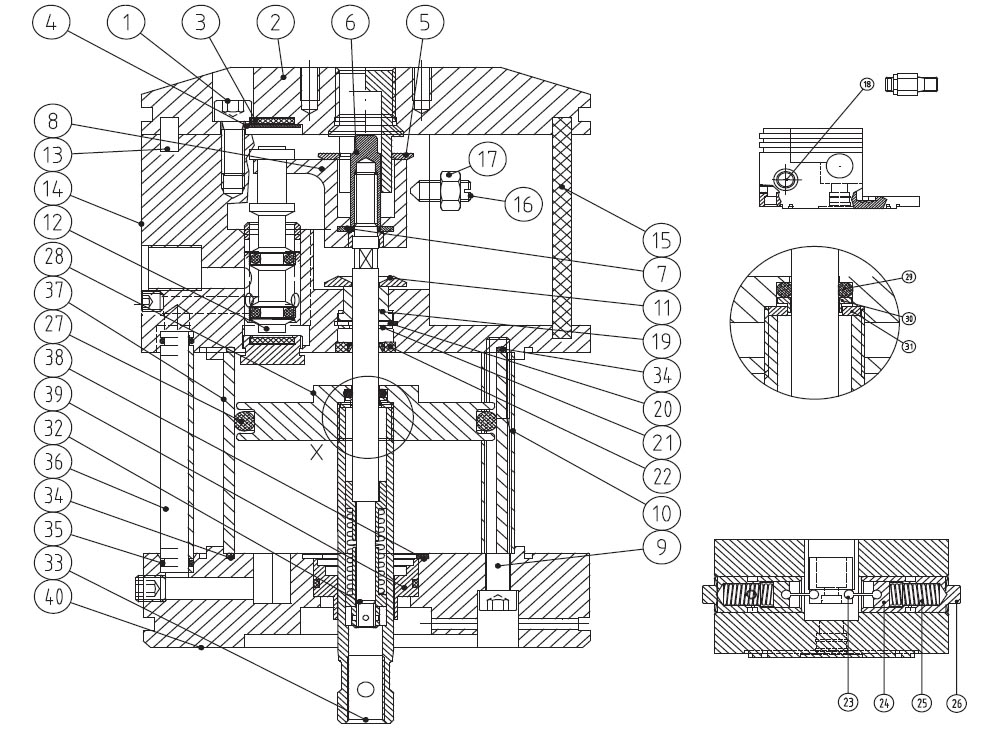

Ref. Part no. Description Qty Kit
1 0114-014182 Screw 4
2 0110-013442 Cover compl. 1
3 0114-014300 Dampening spacer 1 R
4 0114-014345 Serregated washer 1 R
5 0114-014301 Dampening spacer 1 R
6 0114-014298 Bolt 1
7 0114-014295 Spacer 1
8 0114-014341 Carrier ass. V 1
9 0114-014284 Screw 4
10 0114-011584 Spacer holder 4
11 0114-014302 Dampening spacer 1 R
12 0114-014346 Control piston compl. V 1 R
13 0114-014350 Parallel pin 2
14 0114-013443 Cylinder head 1
15 0114-014306 Dampening spacer 1
16 0114-014367 Threaded pin 2
17 0114-014163 Nut 2
18 0114-014774 Safety valve 1
19 0114-014296 Shoulder bushing V 1 R
20 0114-014307 Retaining ring 1 R
21 0114-014409 Spacer 1
22 0114-013956 U-seal V 1 D / R
23 0114-014305 Toggle V 2
24 0114-014340 Toggle bearing V 2
Ref. Part no. Description Qty Kit
25 0114-014032 Compression spring V 2
26 0114-014297 Bearing bush 2
27 0114-013955 O-ring V 1 D / R
28 0114-014764 Piston plate 1
29 0114-013953 O-ring 1 D / R
30 0114-014765 Guide ring 1 R
31 0114-014766 Spacer V 1 R
32 0114-014333 Guide axle compl. V 1 R
33 0114-014291 Motor axle V 1
34 0114-013967 O-ring V 2 D / R
35 0114-014308 O-ring V 4 D / R
36 0114-014293 Air inlet pipe 2
37 0114-014294 Cylinder 1
38 0114-014355 Retaining ring 1 D / R
39 0114-014468 Guide bush compl. V 1
40 0110-013444 Bottom compl. 1

pasek binks

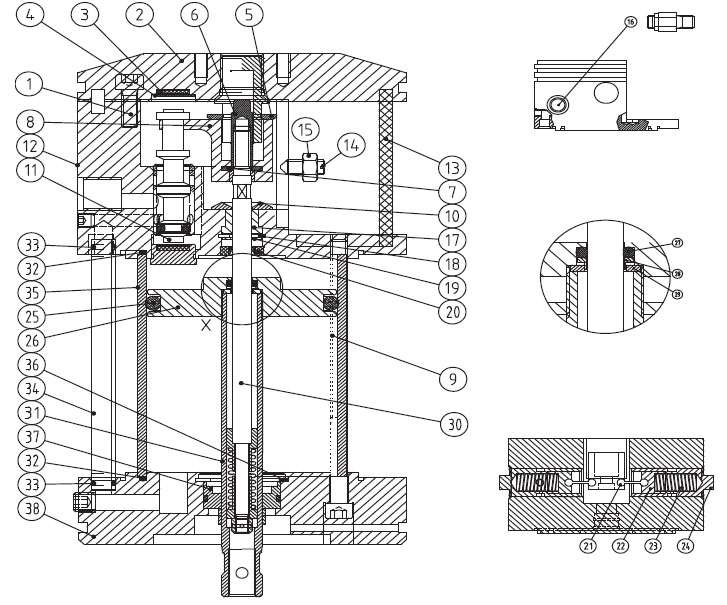

Pompa LM70/75 use with HP 4/20 BINKS

pasek binks

Ref. Part no. Description Qty Kit
1 0114-014182 Screw 4
2 0114-013442 Cover compl. 1
2.1 0114-011586 Guide 1
3 0114-014300 Dampening spacer 1 R
4 0114-014345 Serregated washer 1 R
5 0114-014301 Dampening spacer 1 R
6 0114-014298 Bolt 1
7 0114-014295 Spacer 1
8 0114-014341 Carrier ass. V 1
9 0114-014584 Fillister head screw 4 R
10 0114-014302 Dampening spacer 1 R
11 0114-014346 Control piston compl. V 1 R
12 0114-013443 Cylinder head 1
13 0114-014306 Dampening spacer 1 R
14 0114-014367 Threaded pin 2
15 0114-014163 Nut 2
16 0114-014716 Mini safety valve 5 bar 1
17 0114-014296 Shoulder bushing V 1 R
18 0114-014307 Retaining ring 1 R
19 0114-014409 Spacer 1
20 0114-013956 U-seal V 1 D / R
21 0114-014305 Toggle V 2
22 0114-014340 Toggle bearing V 2
23 0114-014032 Compression spring V 2
24 0114-014297 Bearing bush 2
25 0114-013955 O-ring V 1 D / R
Ref. Part no. Description Qty Kit
26 0114-014764 Piston plate 1
27 0114-013953 O-ring 1 D / R
28 0114-014765 Guide ring 1
29 0114-014766 Spacer 1 R
30 0114-014410 Guide axle compl. V 1 R
31 0114-014412 Motor axle V 1
32 0114-013967 O-ring V 2 D / R
33 0114-014308 O-ring V 4 D / R
34 0114-014413 Air inlet pipe 2
35 0114-019997 Cylinder 1
36 0114-014355 Retaining ring 1 D / R
37 0114-014468 Guide bush compl. V 1 D / R
38 0114-013444 Bottom compl. 1

Zestaw naprawczy

D 0114-018645 Seal kit
R 0114-021210 Repair kit


Wearing part V

pasek binks

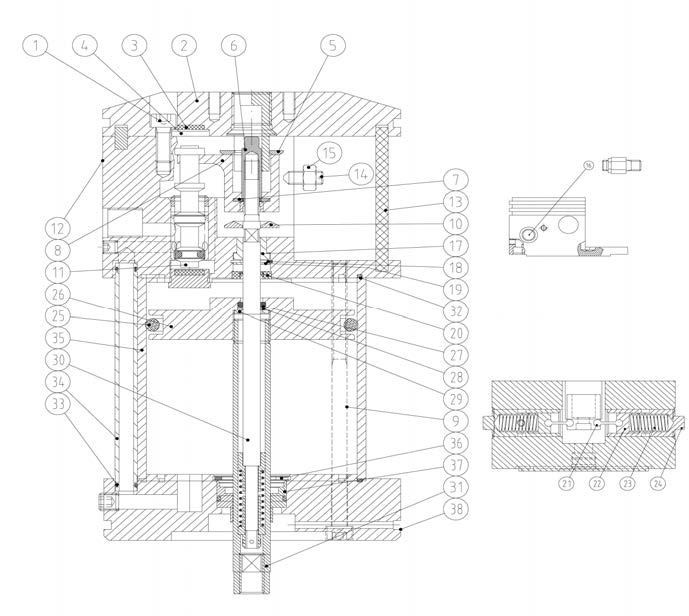

Pompa LM85/75 use with HP 4/32 BINKS

części binks

Ref. Part no. Description Qty Kit
1 0114-014182 Ring 4
2 0114-013442 Cover compl. 1
3 0114-014300 Dampening spacer 1 R
4 0114-014345 Serregated washer 1 R
5 0114-014301 Dampening spacer 1 R
6 0114-014298 Bolt 1
7 0114-014295 Spacer 1
8 0114-014341 Carrier ass. V 1
9 0114-014584 Fillister head screw 4
10 0114-014302 Dampening spacer 1 R
11 0114-014346 Control piston compl. V 1 R
12 0114-013443 Cylinder head 1
13 0114-014306 Dampening spacer 1 R
14 0114-014367 Threaded pin 2
15 0114-014163 Nut 2
16 0114-014774 Safety valve 1
17 0114-014296 Shoulder bushing V 1 R
18 0114-014307 Retaining ring 1 R
19 0114-014409 Spacer 1
20 0114-013956 U-seal V 1 D/R
21 0114-014305 Toggle V 2
22 0114-014340 Toggle bearing V 2
23 0114-014032 Compression spring V 2
Ref. Part no. Description Qty Kit
24 0114-014297 Bearing bush 2
25 0114-014466 O-ring V 1 D/R
26 0114-014767 Piston plate 1
27 0114-013953 O-ring V 1 D/R
28 0114-014765 Guide ring 1 R
29 0114-014766 Spacer 1 R
30 0114-014410 Guide axle compl. V 1 R
31 0114-014412 Motor axle V 1
32 0114-014467 O-ring V 2 D/R
33 0114-014308 O-ring V 4 D/R
34 0114-014413 Air inlet pipe 2
35 0114-014582 Cylinder 1
36 0114-014355 Retaining ring 1 D/R
37 0114-014468 Guide bush compl. V 1 D/R
38 0110-013444 Bottom compl. 1

Zestaw naprawczy

D 0114-014530 Seal kit
R 0114-014734 Repair kit


Wearing part V

pasek binks

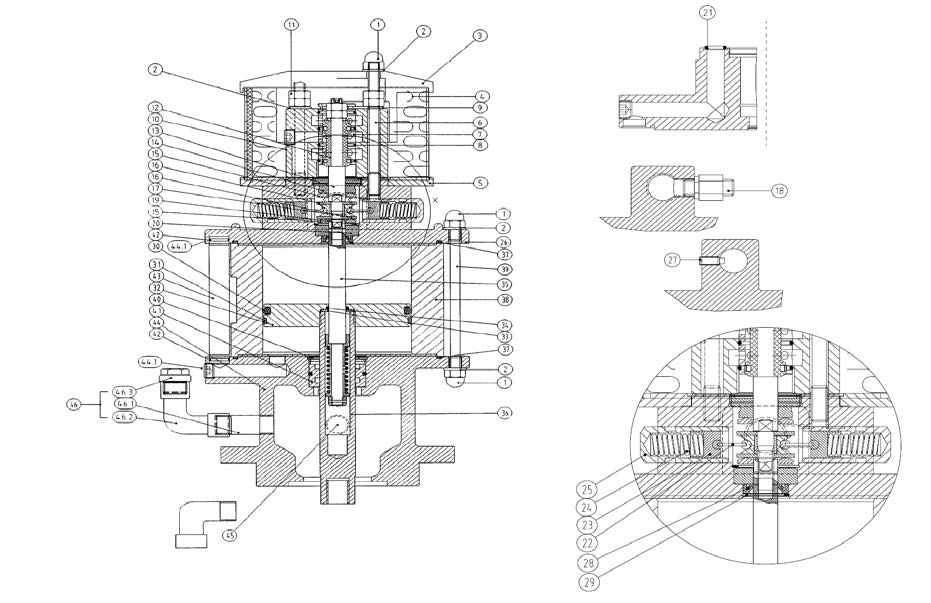

Pompa LM105/75 use with HP 6/34 BINKS

części binks

Ref. Part no. Description Qty Kit
1 0114-014387 Dome nut 11
2 0114-014165 Washer 13
3 0114-014371 Cover 1
4 0114-014673 Air Muffler compl. 1
5 0114-014374 Spacer 1
6 0114-014666 Threaded bolt 3
7 0114-014373 Control cylinder 1
8 0114-013954 O-ring V 4 D / R
9 0114-014372 Safety plate 1
10 0114-014656 Control housing compl. 1
11 0114-014164 Nut 2
12 0114-014388 Check piston compl. V 1 R
13 0114-014376 Alignment insert V 1
14 0114-014379 Centring piece 1
15 0114-014378 Dampening spacer 2 R
16 0114-014628 Spacer 1
17 0114-014438 Carrier ass. V 1
18 0114-014774 Safety valve 8 bar 1
19 0114-014619 Retaining ring 1 R
20 0114-014618 Spacer 1 R
21 0114-014608 O-ring 3 D / R
22 0114-014305 Toggle V 2
23 0114-014340 Toggle bearing V 2
24 0114-014067 Compression spring V 2
25 0114-014381 Bearing bush 2
26 0114-014661 Cylinder head 1
27 0114-014367 Threaded pin 2
28 0114-014380 U-seal V 1 D / R
29 0114-014212 Retaining ring 1 D / R
Ref. Part no. Description Qty Kit
30 0114-013989 O-ring V 1 D / R
31 0114-014392 Guide ring 1 D / R
32 0114-014391 Piston plate 1
33 0114-014384 Spacer 1
34 0114-014421 O-ring V 1 D / R
35 0114-014396 Guide axle compl. V 1
36 0114-014395 Motor axle V 1
37 0114-013993 O-ring V 2 D / R
38 0114-018476 Cylinder 1
39 0114-014386 Threaded bolt 4
40 0114-014359 Retaining ring 1 D / R
41 0114-014464 Guide bush compl. V 1 D / R
42 0114-013957 O-ring V 2 D / R
43 0114-014403 Ventilation pipe 1
44 0114-014660 Lower section compl. new 1
44.1 0114-014657 Closing Screw 2
45 0114-013679 Elbow 1
46 0114-014561 Filler neck, compl. 1
46.1 0114-013520 Nipple 1
46.2 0114-013670 Elbow 1
46.3 0114-013671 Screw plug 1

Zestaw naprawczy

D 0114-018697 Seal kit
R 0114-018698 Repair kit


Wearing part V

pasek binks

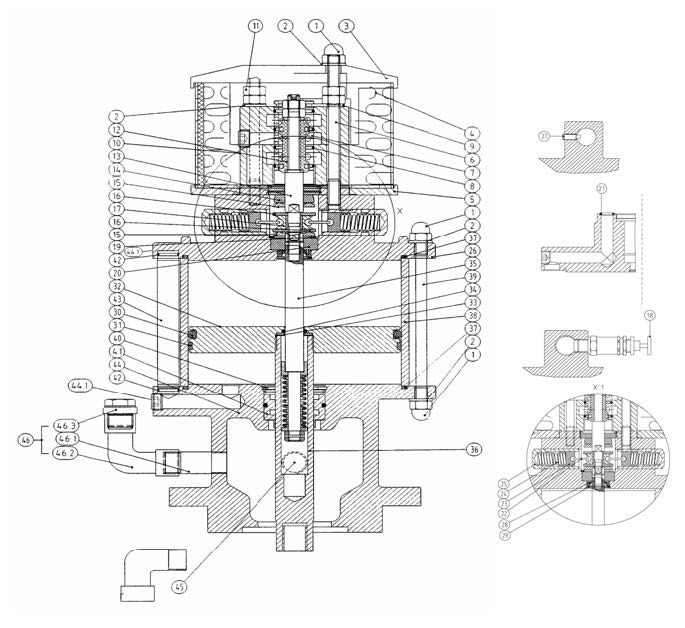

Pompa LM140/75 use with HP 10/32 and HP 6/60 BINKS

części binks

Ref. Part no. Description Qty Kit
1 0114-014387 Dome nut 11
2 0114-014165 Washer 13
3 0114-014371 Cover 1
4 0114-014673 Air Muffler compl. 1
5 0114-014374 Spacer 1
6 0114-014666 Threaded bolt 3
7 0114-014373 Control cylinder 1
8 0114-013954 O-ring V 4 D/R
9 0114-014372 Safety plate 1
10 0114-014656 Control housing compl. 1
11 0114-014164 Nut 8
12 0114-014388 Check piston compl. V 1 R
13 0114-014376 Alignment insert V 1
14 0114-014379 Centring piece 1
15 0114-014378 Dampening spacer 2 R
16 0114-014628 Spacer 1
17 0114-014438 Carrier ass. V 1
18 0114-014715 Safety valve 8 bar (for HP 10/32) 1

0114-014714 Safety valve 6.5 bar (for HP 6/60)

19 0114-014619 Retaining ring 1 R
20 0114-014618 Spacer 1 R
21 0114-014608 O-ring 3 D/R
22 0114-014305 Toggle V 2
23 0114-014340 Toggle bearing V 2
24 0114-014067 Compression spring V 2
25 0114-014381 Bearing bush 2
26 0114-014661 Cylinder head 1
27 0114-014367 Threaded pin 2
Ref. Part no. Description Qty Kit
28 0114-014380 U-seal V 1 D/R
29 0114-014212 Retaining ring 1 D/R
30 0114-013992 O-ring V 1 D/R
31 0114-014383 Guide ring 1 D/R
32 0114-014382 Piston plate 1
33 0114-014384 Spacer 1
34 0114-014421 O-ring V 1 D/R
35 0114-014396 Guide axle compl. V 1
36 0114-014395 Motor axle V 1
37 0114-013993 O-ring 2 D/R
38 0114-014393 Cylinder 1
39 0114-014386 Threaded bolt 3
40 0114-014359 Retaining ring 1 D/R
41 0114-014464 Guide bush compl. V 1 D/R
42 0114-013957 O-ring 2 D/R
43 0114-014403 Air inlet pipe 1
44 0114-014660 Bottom Ass 1
44.1 0114-014657 Closing screw 2
45 0114-013679 Elbow 1
46 0114-014561 Filler neck compl. 1
46.1 0114-013520 Nipple 1
46.2 0114-013670 Elbow 1
46.3 0114-013671 Closing screw 1

Zestaw naprawczy

D 0114-014647 Seal kit
R 0114-014736 Repair kit


Wearing part V

pasek binks

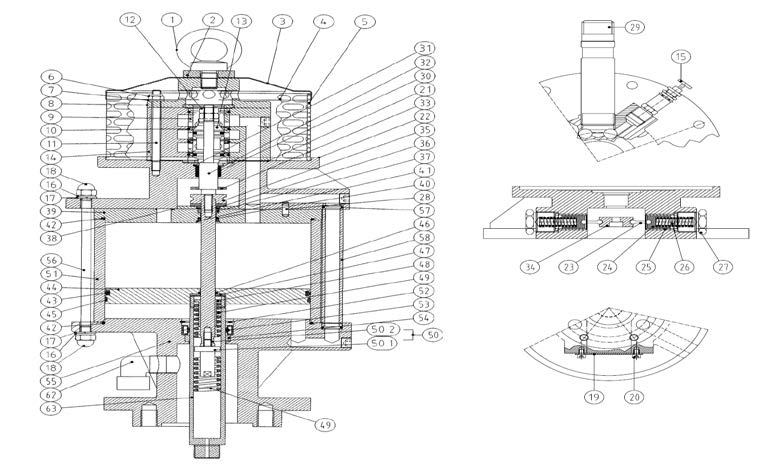

LM200/120 BINKS use with HP 30/32, 25/48 and HP 20/66, HP 25/48, HP 20/66

binks części

Ref. Part no. Description Qty Kit
1 0114-014205 Eyebolt 1
2 0114-013903 Spacer 1
3 0114-013901 Cover 1
4 0114-013899 Perforated plate 1
5 0114-013687 Dampening spacer 1
6 0114-014203 Lock nut 4 D / R
7 0114-014165 Washer 4 D / R
8 0114-013876 Cap 1
9 0114-013872 Control cylinder 1
10 0114-013982 O-ring V 4 D / R
11 0114-013877 Threaded bolt 4
12 0114-014188 Nut 2 R
13 0114-013689 Check piston compl. V 1 R
14 0114-013869 Control housing 1
15 0114-014019 Safety valve 8 bar HP 30/32 and 25/48 1 1

0114-014018 Safety valve 6,5 bar HP 20/66

16 0114-014186 Washer 16
17 0114-014206 Spring ring 16
18 0114-014168 Dome nut 16
19 0114-013667 Cover 1
20 0114-014179 Fillister head screw 2
21 0114-013873 Housing seal 1 D / R
22 0114-013874 Cylinder head 1
23 0114-013695 Toggle V 2
24 0114-013882 Toggle bearing V 2
25 0114-013881 Bearing bush 2
26 0114-014134 Compression spring V 2 R
27 0114-013879 Retaining screw 2
28 0114-014208 Parallel pin 1
29 0114-014449 Elongated nipple 1
30 0114-013875 Sintered bearing V 1 R
31 0114-014210 Retaining ring 1 R
32 0114-013921 Alignment insert V 1
33 0114-014142 Dampening spacer 1 R
34 0114-013878 Carrier ass. V 1
Ref. Part no. Description Qty Kit
35 0114-014263 Dampening spacer 1 R
36 0114-014212 Retaining ring 1
37 0114-013886 Sintered bearing V 1 R
38 0114-013985 O-ring 2 D / R
39 0114-013885 Plate 1
40 0114-013978 U-seal V 1 D / R
41 0114-014212 Retaining ring 1 D / R
42 0114-013995 O-ring V 2 D / R
43 0114-013994 O-ring V 1 D / R
44 0114-013889 Piston plate 1
45 0114-014418 Guide tape 1 D / R
46 0114-013984 O-ring V 1 D / R
47 0114-013890 Spacer 1
48 0114-013893 Stop bush V 1
49 0114-014135 Compression spring V 2 R
50 0114-013685 Guide axle compl. V 1
51 0114-013887 Cylinder 1
52 0114-014204 Retaining ring 1 D / R
53 0114-013962 U-seal V 2 D / R
54 0114-014219 Sintered bearing V 1 R
55 0114-013897 Bottom Ass 1
56 0114-013898 Threaded bolt 8
57 0114-013985 O-ring Viton V 4 D / R
58 0114-013888 Air inlet pipe 2
62 0114-013436 Elbow 1
63 0114-013895 Motor axle V 1

Zestaw naprawczy

D 0114-013569 Seal kit
R 0114-013574 Repair kit


Wearing part V

pasek binks

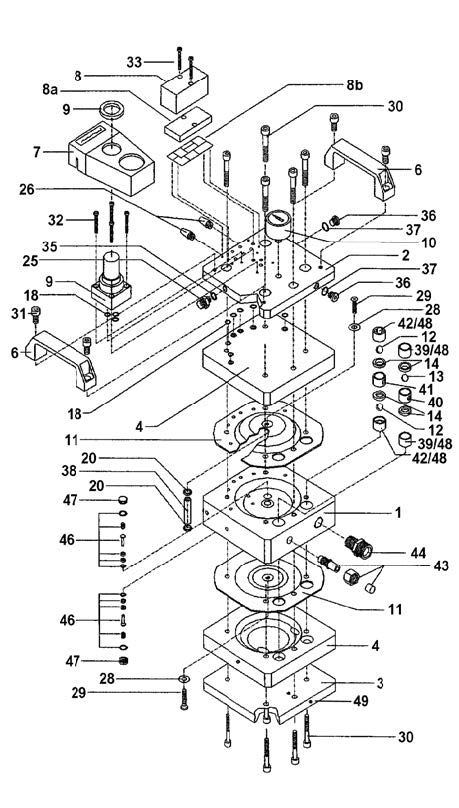

LUX pump BINKS

części binks
Ref. Part no. Description
1 F-CA-008 Housing
2 F-CA-002 Cover upper
3 F-EA-009 Couver lower
4 F-DA-025 Intermediate plate
6 ZZ-1617-D Handle
7 F-DA-006 Cover hood
8 F-GA-042 Directional valve
8a F-GA-027 Adapter plate
8b F-GA-032 Seal
9 F-GA-002 Regulator
10 LUX-31 Pressure gauge
11 F-DA-007 Diaphragm
12 LUX-84 Ball 14 mm PTFE

LUX-85 Ball 14 mm PU
13 ZZ-1618-D Ball 16 mm PTFE

LUX-86 Ball 16 mm PU
14 LUX-76 Valve seat
18 F-IA-004 O-ring
20 F-IA-008 Collar
25 F-GA-011 Air inlet nipple
26 ZZ-2316 Muffler
28 ZZ-1660-D Conical spring washer
Ref. Part no. Description
29 F-HA-003 Clamping screw
30 F-HA-004 Screw
31 SSF-3153-ZN Fillister head screw
32 F-HA-008 Screw
33 F-HA-007 Screw
35 F-HA-009 Gasket
36 F-HA-006 Locking screw
37 F-HA-009 Gasket
38 F-DA-015 Middle pin
39 F-EA-001 Transition bush
40 F-EA-005 Inlet bush
41 F-EA-004 Outlet bush
42 F-EA-003 Stopper bush
43 F-DA-020 Outlet nipple compl. (Removal and installation at factory only)
44 F-DA-010 Intake nipple
46 F-EA-015 Limit switch
47 F-EA-013 Pressure piece
48 F-IA-010 O-ring
49 ZZ-1612-D Earth terminal

Akcesoria

LUX-432 Bypass 3/8" NPS
LUX-434 Euro cover
LUX-438 Return flow pipe
LUX-435 Intake tube

Filter strainer 45 mesh
LUX-80 Filter strainer 90 mesh
LUX-81 Filter strainer 440 mesh

2" container adapter
LUX-436 Intake tube for 200 l container
LUX-439 Wall holder

Return flow hose
LUX-437 Intake hose

Double air pressure regulator fitting
QSA-506-K Air gear agitator

Installation wrench for pressure piece Pos.
F-KA-005 Sleeve for intake strainer
F-GA-028 Adjusting knob

Insertion tool

pasek binks

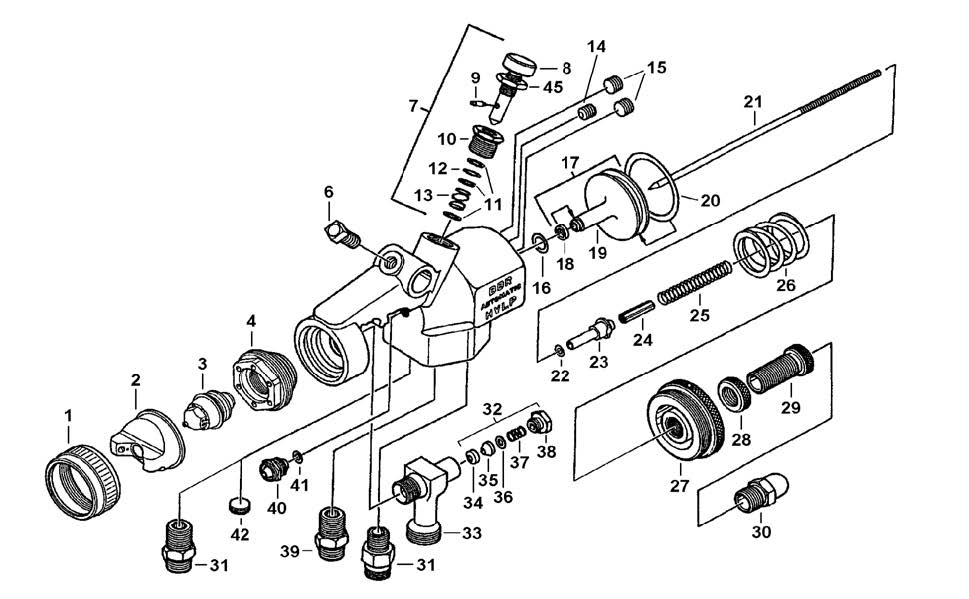

MACH1A pistolet lakierniczy ręczny BINKS

części binks

Ref. Part no. Description
1 54-3531 Retaining ring
2 46-9500 Air cap 95P
3 45-9200 Nozzle 1.2 mm
4 54-3543 Head insert
6 20-1359 Screw
7 54-3720 Jet regulator
8 54-3721 Spindle
9 31-258 Locking pin
10 31-256 Insert
11 31-259 Disc
12 20-3620-5 O-ring
13 31-241 Spring
14 20-5589 Plug
15 20-5692 Plug
16 20-5286 O-ring
17 54-3706 Piston unit
18 54-3729 O-ring
19 54-3722 Piston
20 20-4511 O-ring
21 47-478 Needle
22 20-3515-5 O-ring
23 54-3713 Needle body
24 54-3709 Lock nut
25 54-3719 Spring
26 54-3707 Spring
27 54-3708 End cap
Ref. Part no. Description
28 54-3732 Lock nut
29 54-3731 Control knob
30 54-3715 Needle cap
31 71-28 Air inlet 1/4" NPS
32 54-4261 Packing, compl.
33 54-3533 Material inlet
34 54-4264 Packing
35 54-4265 Needle seal
36 54-4266 Disc
37 54-4267 Spring
38 54-4263 Packing screw
39 57-13 Nipple 1/4" NPS
40 54-3716 Air valve
41 20-3859-5 O-ring
42 20-2287-1 Plug
45 54-4269 Nut

Akcesoria

54-3980 Repair kit
54-3918 Gun spanner
82-469 Cleaning brush
6-428 Gun oil (75 ml)
54-3935 Test air cap
54-380 Gun holder
54-3691 Gun cover (Pack of 20)

pasek binks
MACH1AR pistolet lakierniczy ręczny BINKS

części binks

Ref. Part no. Description
1 54-3531 Retaining ring
2 46-9500 Air cap 95P
3 45-9200 Nozzle 1.2 mm
4 54-3543 Head insert
6 20-1359 Screw
7 54-3720 Jet regulator
8 54-3721 Spindle
9 31-258 Locking pin
10 31-256 Insert
11 31-259 Disc
12 20-3620-5 O-ring
13 31-241 Spring
14 54-4269 Nut
15 20-5589 Plug
16 20-5692 Plug
17 20-5286 O-ring
18 54-3706 Piston unit
19 54-3729 O-ring
20 54-3722 Piston
21 20-4511 O-ring
22 47-478 Needle
23 20-3515-5 O-ring
24 54-3713 Needle body
25 54-3709 Lock nut
26 54-1697-5 Spring
27 54-1876 Spring
28 54-3582 Adjusting unit
29 54-3584 Housing
Ref. Part no. Description
30 20-2183 Ball
31 54-1878 Spring
32 54-1870 Indicator ring
33 54-3583 Screw
34 54-1879 Ratchet
35 54-1984 Adjusting cap
36 71-28 Air inlet 1/4" NPS
37 54-4261 Packing, compl.
38 54-3533 Material inlet
39 54-4264 Packing
40 54-4265 Needle seal
41 54-4266 Disc
42 54-4267 Spring
43 54-4263 Packing screw
44 57-13 Nipple 1/4" NPS
45 54-3716 Air valve
46 20-3859-5 O-ring
47 20-2287-1 Plug

Akcesoria

54-3980 Repair kit
54-3918 Gun spanner
82-469 Cleaning brush
6-428 Gun oil (75 ml)
54-3935 Test air cap
54-380 Gun holder
54-3691 Gun cover (Pack of 20)

pasek binks

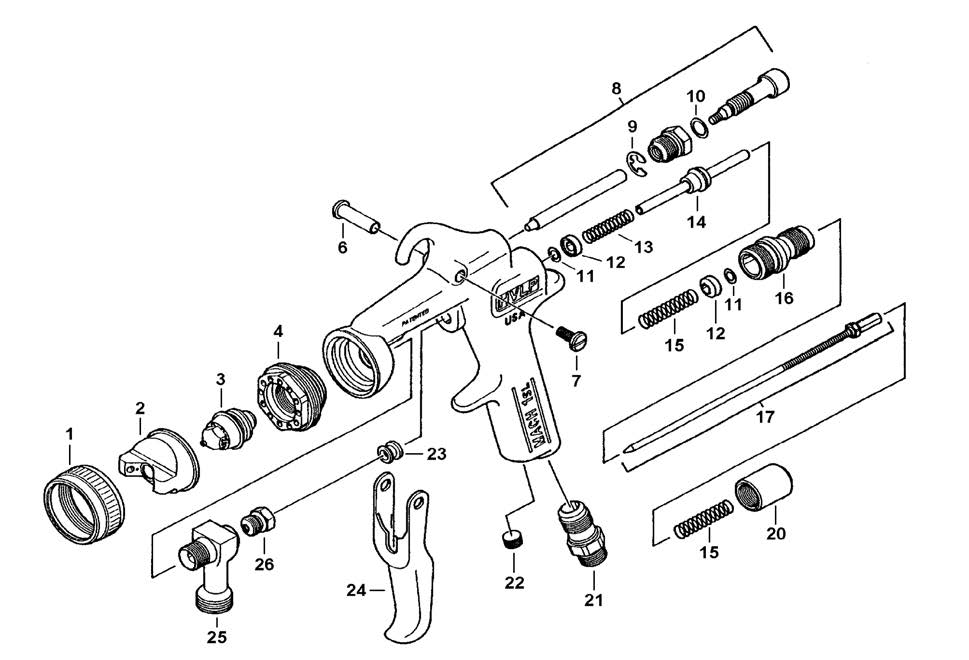

MACH1SL pistolet lakierniczy ręczny BINKS

części binks

Ref. Part no. Description
1 54-4318 Retaining ring
2 46-9300 Air cap 93P
3 45-9100 Nozzle 1.0 mm
4 54-3543 Insert
6 54-4359 Pin
7 82-126 Screw
8 54-4343 Jet regulator
9 54-3511 Retaining ring
10 20-6160 O-ring
11 20-4615-5 O-ring
12 54-3515 Seal retainer housing
13 54-3520 Spring
14 54-3512 Spindle unit
15 54-3518 Spring
16 54-3541 Housing
17 54-4382 Needle
20 54-4297 Adjusting screw
21 54-768 Air connection 1/4"
22 20-2287-1 Plug
23 54-3513 Valve cap
24 54-4360 Trigger
25 54-3742 Material inlet 3/8"
26 54-4370 Packing screw

Akcesoria

54-4440 Jet regulator pencil/fan jet
54-4278 Repair kit
54-4356 Test air cap
54-4133 Cleaning paintbrush
82-469 Cleaning brush
54-3918 Gun spanner


pasek binks

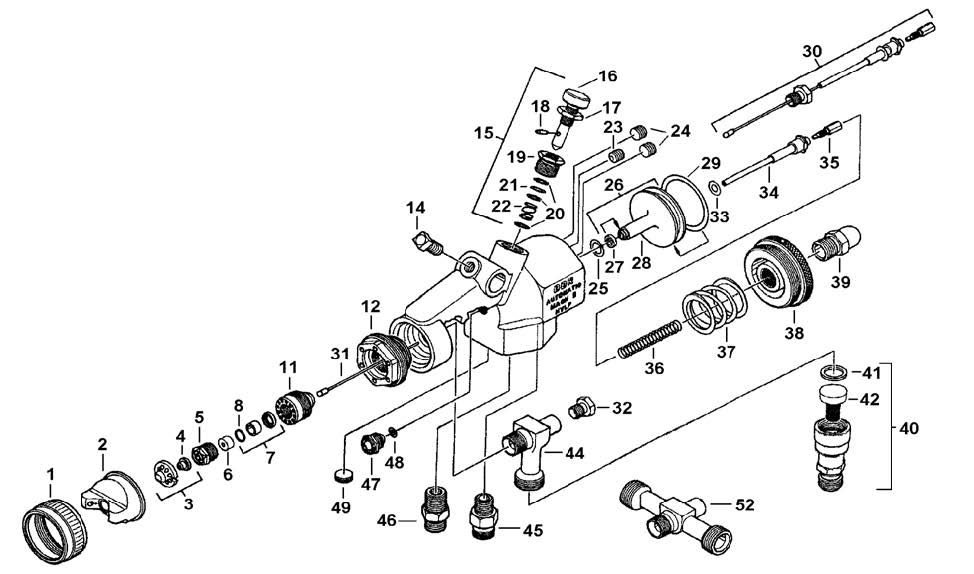

MACH2A pistolet lakierniczy ręczny BINKS

części binks

Ref. Part no. Description
1 54-3531 Retaining ring
2 46-9509 Air cap 95HA
3 110-1314 Nozzle* (standard)
4 54-3745-5 Nozzle seal (Pack of 5)
5 54-3779 Seat holder
6 54-3733 Seat
7 54-3780 Seal kit
8 54-3791 O-ring
11 54-3778 Nozzle body
12 54-3543 Body insert
14 20-1359 Screw
15 54-3720 Jet regulating valve compl.
16 54-3721 Spindle
17 54-4269 Nut
18 31-258 Retaining ring
19 31-256 Valve guide
20 31-259 Disc
21 20-3620-5 O-ring
22 31-241 Valve spring
23 54-3987 Plug
24 54-3988 Plug
25 20-5286 O-ring
26 54-3706 Piston
27 54-3729 Seal
28 54-3722 Piston
29 20-4511 O-ring
30 54-4410 Needle unit compl.
31 54-3640 Needle
Ref. Part no. Description
32 54-3635 Packing screw
33 20-3515-5 O-ring
34 54-3734 Needle body
35 54-3524 Clamping piece
36 54-3719 Spring
37 54-3707 Spring
38 54-3708 End cap
39 54-3715 Cap
40 54-3646 Filter, compl.
41 54-3648 Seal
42 54-1836 Filter 60 mesh

54-1835 Filter 100 mesh
44 54-3743 Material inlet
45 71-28 Double nipple
46 57-13 Double nipple
47 54-3716 Air valve
48 20-3859-5 O-ring
49 20-2287-1 Plug
52 54-4407 Material inlet forcirculation (option)

Akcesoria

54-4405 Repair kit
54-3918 Gun spanner
82-469 Cleaning brush
54-4270 Needle guard

pasek binks

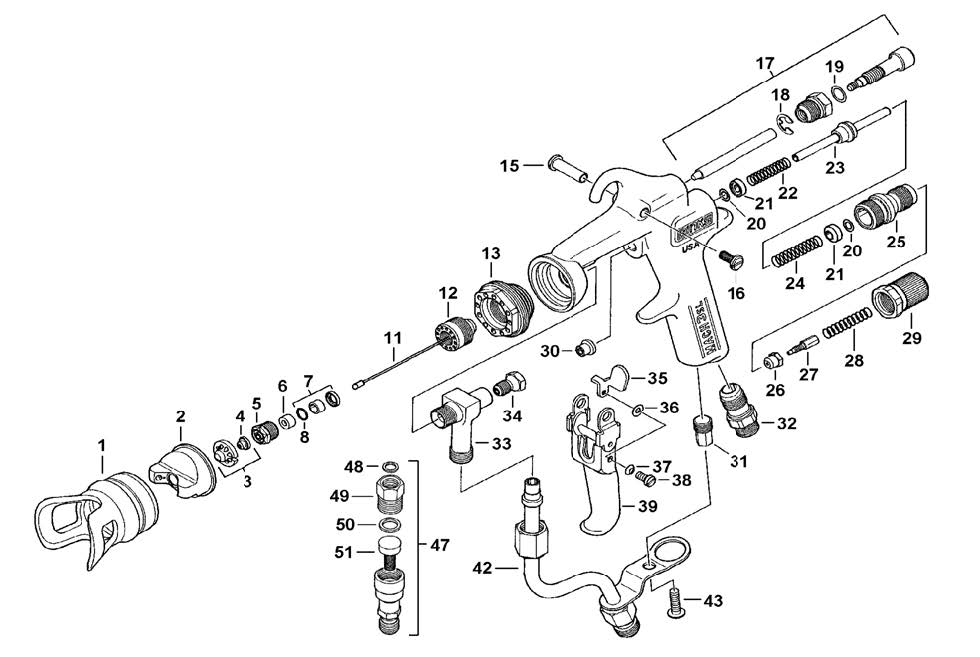

MACH3SL pistolet lakierniczy ręczny BINKS

części binks

Ref. Part no. Description
1 54-3753 Protective cap unit
2 46-9509 Air cap 95HA
3 110-1314 Nozzle (standard)
4 54-3745-5 Nozzle seal (Pack of 5)
5 54-3779 Seat holder
6 54-3733 Seat
7 54-3780 Seal kit
8 54-3791 O-ring
11 54-3640 Needle
12 54-3778 Nozzle body
13 54-3543 Insert
15 54-4359 Pin
16 82-126 Screw
17 54-3628 Jet regulator
18 54-3511 Retaining ring
19 20-6160 O-ring
20 20-4615-5 O-ring
21 54-3515 Seal retainer housing
22 54-3520 Spring (yellow)
23 54-3512 Spindle unit
24 54-3518 Spring (blue)
25 54-3541 Housing
26 54-3523 Safety clamp
27 54-3524 Clamping pin
28 54-3639 Spring (red)
Ref. Part no. Description
29 54-3542 Adjusting screw
30 54-3769 Cap
31 54-3737 Plug
32 54-768 Air connection
33 54-3744 Material inlet
34 54-3635 Packing cartridge
35 54-3552 Securing lever
36 54-3560 Disc
37 54-3553 Spring disc
38 20-5928 Screw
39 54-3765 Trigger
42 54-3642 Material riser
43 20-6606 Screw

Akcesoria

47 54-3643 Filter, compl. 100 mesh
48 54-3644 Filter seal
49 72-54 Adapter
50 54-3648 Gasket
51 54-1836 Filter insert 60 mesh

54-1835 Filter insert 100 mesh

54-3645 Repair kit

54-3918 Gun spanner

82-469 Cleaning brush

pasek

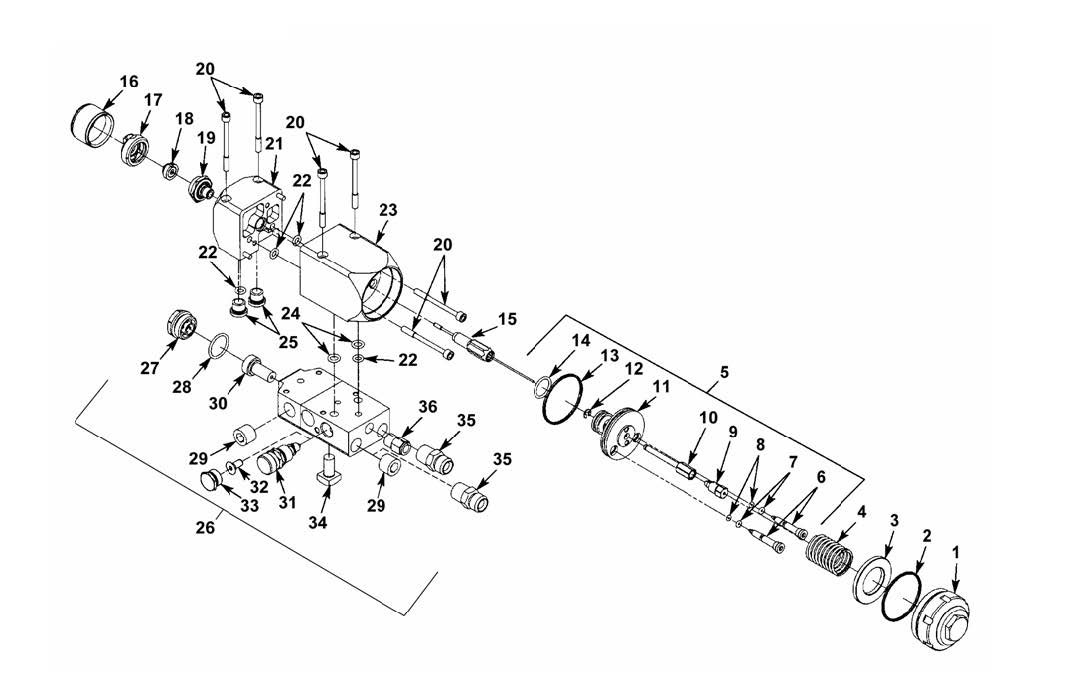

MAG AA(AAA) pistolet lakierniczy automatyczny BINKS

części kremlin

Ref. Part no. Description
1 54-5330 End cap
2 20-6783 O-ring Viton
3 54-5331 Piston impact ring
4 54-5332 Piston, return spring
5 54-5315 Piston assembly
6 54-5318 Atomizing air valve
7 20-6785 O-ring Viton
8 20-6786 O-ring Viton
9 54-5316 Collet, lock nut
10 54-5317 Wire collet
11 54-5320 Piston body
12 20-6757 Retenting ring
13 20-6783 O-ring Viton, same as Pos. 2
14 20-6784 O-ring Viton
15 54-5310 Fluid cartridge assembly
15a 54-5312 Wire-Ball Assembly
15b 54-4962 Rear Packing Assembly
16 54-4955 Air nozzle, retaining ring
17 54-5345 Air cap AA10HP (standard)

54-4980 Air cap AA2

54-4978 Air cap AA4
18 Nozzle Table
19 54-4926 Needle seat compl. (UHMW)optional (54-4960) hard metal
19a 20-6037-K10 O-ring PTFE
20 54-5333-6 Retaining screw
Ref. Part no. Description
21 54-5325 Gun head compl.
22 20-4615-5 O-ring, PTFE
23 54-5324 Automatic piston housing
24 20-3467 O-ring, PTFE
25 54-5326 Material distributor, outlet screw
26 54-5335 Air/material inlet adapter compl.
27 54-5340 Filter holder compl.
28 20-5921 O-ring, PTFE
29 20-6131 Hexagon plug 1/4˝ NPT
30 54-1835 Filter compl., 100 Mesh
31 54-3720 Side port control assembly
32 20-6748 Screw
33 102-2839 Plug, side outlet
34 20-1359-1 Screw
35a 57-13 Nipple 1/4˝ NPS x 1/4˝ NPT
35b 57-13 Optional structure (same as Pos. 35 a)
36 54-4945-10 Pipe nipple 1/8˝ NPT x 1/4
37 20-6782 Allen Skt HD 8-32 x 1-3/4 Lg

pasek binks

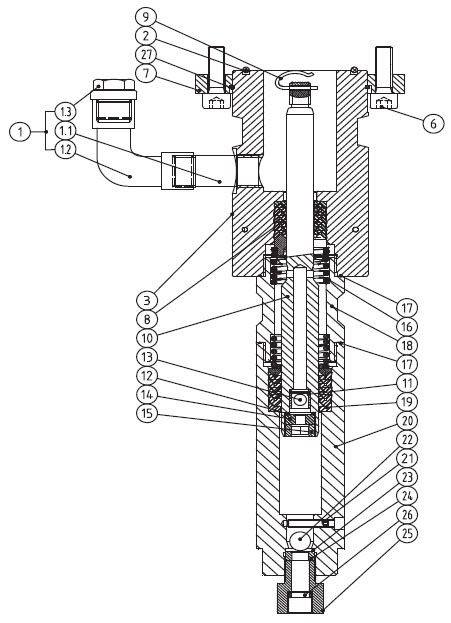

POMPA BINKS MP11/42 (Use with HP 3/28)

części binks

Ref. Part no. Description Qty Kit
1 0114-014561 Filler neck compl.

1 0114-016102 O-ring 1
2 0114-014006 O-ring 1 D / R
3 0114-014509 High-pressure head 1
4 0114-014750 Check valve compl. 1
5 0114-013952 Seal 1 D / R
6 0114-014199 Screw 4
7 0114-014314 Locking ring 1
8 0114-014491 Packing, upper, PTFE/Leather V 1 R
opt. 0114-016003 Packing, upper, PTFE V 1 R
opt. 0114-016281 Packing, upper, PTFE (glassfilled/graphite)/Leather V 1 R
opt. 0114-016277 Packing, upper, PTFE (glassfilled/graphite) V 1
9 0114-014161 Stop spring 1 R
10 0114-014344 Double piston V 1
11 0114-014508 Ball stop 1 R
12 0114-014527 Seal 1 D / R
13 0114-014745 Ball 6mm V 1 R
14 0114-014034 Valve plate V 1
15 0114-013863 Screw 1
16 0114-014480 Compression spring 2
17 0114-011284 O-ring 2 D / R
18 0114-011581 Spring housing 1
19 0114-014493 Packing, upper, PTFE/Leather V 1 R
Ref. Part no. Description Qty Kit
opt. 0114-016004 Packing, upper, PTFE V 1 R
opt. 0114-016282 Packing, upper, PTFE (glassfilled/graphite)/Leather V 1
opt. 0114-016280 Packing, upper, PTFE (glassfilled/graphite) V 1
20 0114-011582 Pressure cylinder 1
21 0114-014594 Threaded pin 1
22 0114-014022 Ball 10 mm V 1 R
23 0114-014527 Seal 1 D / R
24 0114-014035 Valve plate V 1
25 0114-014525 Screw 1
26 0114-014463 Seal 1 D / R
27 0114-014364 Snap ring 1 R

Zestaw naprawczy

D 0114-018675 Seal kit
R 0114-018674 Repair kit (mixed packing)
R 0114-016005 Repair kit(packing PTFE)Wearing part V

pasek binks

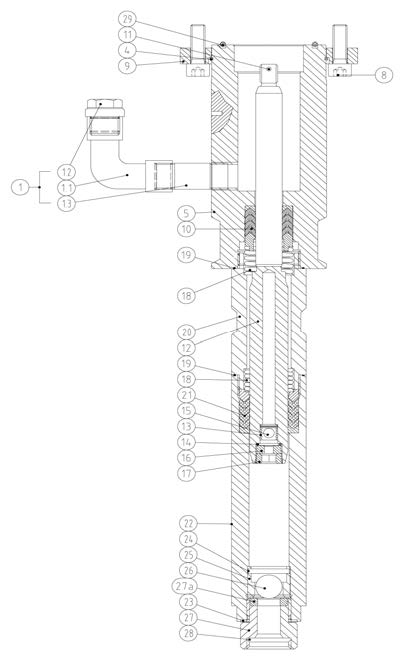

Pompa MP27/75 BINKS Use with HP 4/20 and HP 4/32

części binks

Ref. Part no. Description Qty Kit
1 0114-014561 Filler neck compl. 1
1,1 0114-013670 Elbow 1
1,2 0114-013671 Closing screw 1
1,3 0114-013520 Elongated nipple 1
4 0114-014364 Retaining ring 1 R
5 0114-011281 High-pressure head 1
6 0114-014751 Check valve compl. 1
7 0114-013952 Seal 1 D/R
8 0114-014199 Screw 4
9 0114-014314 Locking ring 1
10 0114-014513 Packing, upper, PTFE/Leather V 1 R
opt. 0114-014559 Packing, upper, PTFE V 1 R
opt. 0114-016272 Packing, upper, PTFE (glassfilled/graphite)/Leather V 1
opt. 0114-016262 Packing, upper, PTFE (glassfilled/graphite) V 1
11 0114-014161 Stop spring 1 R
12 0114-014605 Double piston V 1
13 0114-014508 Ball stop compl. 1 R
14 0114-014527 Seal 1 D/R
15 0114-014745 Ball V 1 R
16 0114-014034 Valve plate V 1
17 0114-013863 Screw 1
18 0114-014480 Compression spring 2
Ref. Part no. Description Qty Kit
19 0114-011284 O-ring 2
20 0114-011282 Spring housing 1
21 0114-014512 Packing, upper, PTFE/Leather V 1 R
opt. 0114-014558 Packing, upper, PTFE V 1 R
opt. 0114-016273 Packing, upper, PTFE (glassfilled/graphite)/Leather V 1
opt. 0114-016263 Packing, upper, PTFE (glassfilled/graphite) V 1
22 0114-011283 Pressure cylinder 1
23 0114-014739 Seal 1 D/R
24 0114-014450 Cylindrical pin 1 R
25 0114-014738 Ball guide 1
26 0114-014237 Ball V 1 R
27 0114-014741 Bottom valve compl. 1
28 0114-013834 Seal 1 D/R
29 0114-014006 O-ring 1 D/R

Zestraw naprawczy

D 0114-018597 Seal kit
R 0114-013448 Repair kit (mixed packing)
R 0114-016006 Repair kit (packing PTFE)


Wearing part V

pasek

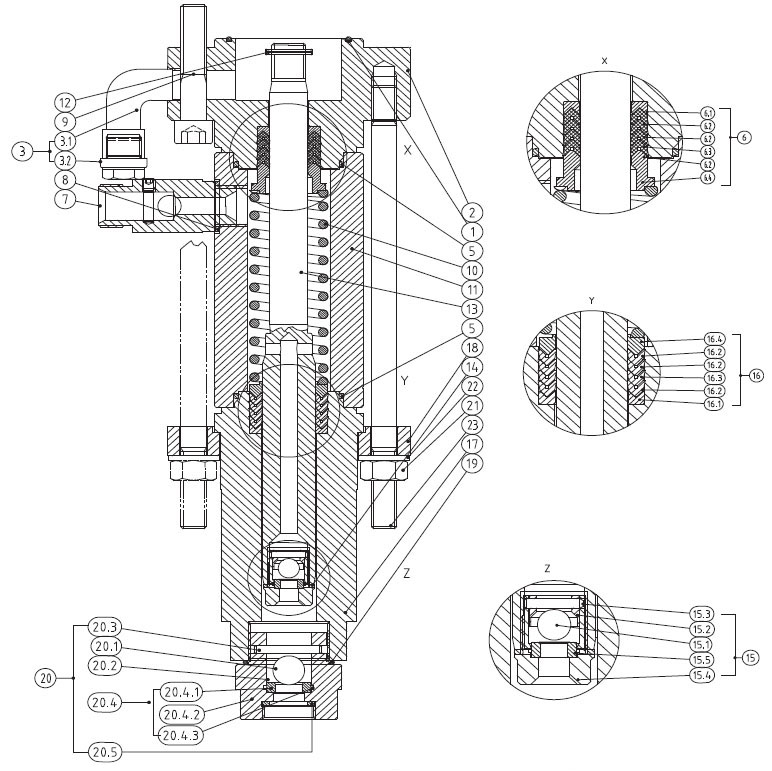

Pompa MP38/75 Use with HP 6/34 and HP 6/60 BINKS

części binks

Ref. Part no. Description Qty Kit
1 0114-013987 O-ring 1 D / R
2 0114-014587 High-pressure head 1
3 0114-019093 Drain valve compl. 1
3,1 0114-013679 Elbow 1
3,2 0114-013671 Locking screw 1
5 0114-014269 Gasket 1 D / R
6 0114-014477 Packing, upper, PTFE/Leather V 1 R
opt. 0114-018924 Packing, upper, PTFE V 1 R
opt. 0114-016285 Packing, upper, PTFE (glassfilled/graphite)/Leather V 1
opt. 0114-016283 Packing, upper, PTFE (glassfilled/graphite) V 1
7 0114-013555 Check valve compl. 1
8 0114-014202 Seal 1 D / R
9 0114-014370 Screw 3
10 0114-014047 Compression spring V 1
11 0114-014585 Spring housing 1
12 0114-014159 Clamping sleeve 1
13 0114-014459 Double piston V 1
14 0114-014012 Seal 1 D / R
15 0114-014627 Piston valve compl. 1
15,1 0114-014022 Ball V 1 R
15,2 0114-014755 Ball guide 1
15,3 0114-014159 Clamping sleeve 1 R
15,4 0114-013783 Valve housing compl. V 1
16 0114-014476 Packing, upper, PTFE/Leather V 1 R
opt. 0114-018925 Packing, upper, PTFE V 1 R
Ref. Part no. Description Qty Kit
opt. 0114-016286 Packing, upper, PTFE (glassfilled/graphite)/Leather V 1
opt. 0114-016284 Packing, upper, PTFE (glassfilled/graphite) V 1
17 0114-014586 Pressure cylinder 1
18 0114-014460 Locking ring 1
19 0114-013946 O-ring 1 D / R
20 0114-014727 Bottom valve compl. 1
20,1 0114-014237 Ball V 1 R
20,2 0114-014753 Ball guide 1
20,3 0114-014568 Cylindrical pin 1 R
20,4 0114-014625 Bottom valve housing V 1
20,5 0114-013834 Seal 1 D / R
21 0114-014415 Nut 3
22 0114-014422 Washer 3
23 0114-014570 Stud bolt 3

Zestaw Naprawczy

D 0114-014648 Seal kit
R 0114-014754 Repair kit (mixed packing)
R 0114-016007 Repair kit (Packing PTFE)


Wearing part V

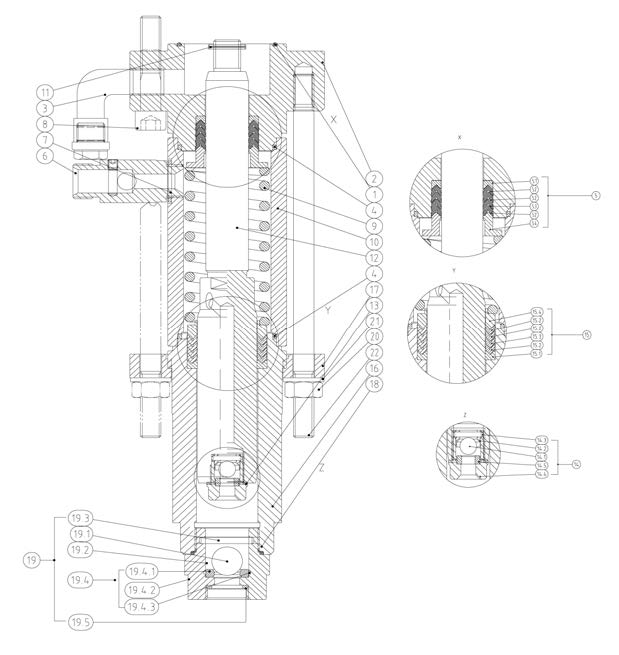

binks części

części binks

Ref. Part no. Description Qty Kit
1 0114-013987 O-ring 1 D/R
2 0114-014502 High-pressure head 1
3 0114-019093 Drain valve compl. 1
4 0114-014567 Gasket 2 D/R
5 0114-014505 Packing, upper, PTFE/Leather V 1 R
opt. 0114-016000 Packing, upper, PTFE V 1 R
opt. 0114-016274 Packing, upper, PTFE (glassfilled/graphite)/Leather V 1
opt. 0114-016264 Packing, upper, PTFE (glassfilled/graphite) V 1
6 0114-013555 Check valve compl. 1
7 0114-014202 Seal 1 D/R
8 0114-014370 Screw 3
9 0114-014083 Compression spring V 1
10 0114-014499 Spring housing 1
11 0114-014159 Clamping sleeve 1 R
12 0114-014579 Double piston V 1
13 0114-014012 Seal 1 D/R
14 0114-014627 Piston valve compl. 1
14,1 0114-014022 Ball V 1 R
14,2 0114-014755 Ball guide 1
14,3 0114-014159 Clamping sleeve 1
14,4 0114-013783 Valve housing compl. V 1
Ref. Part no. Description Qty Kit
15 0114-014498 Packing, upper, PTFE/Leather V 1 R
opt. 0114-016001 Packing, upper, PTFE V 1 R
opt. 0114-016275 Packing, upper, PTFE (glassfilled/ graphite)/Leather V 1
opt. 0114-016265 Packing, upper, PTFE (glassfilled/graphite) V 1
18 0114-013946 O-ring 1 D/R
19 0114-014726 Bottom valve compl. 1
19,1 0114-014025 Ball V 1 R
19,2 0114-014749 Ball guide 1
19,3 0114-014568 Cylindrical pin 1 R
19,4 0114-014622 Bottom valve housing compl. V 1
19,5 0114-013834 Seal 1 D/R
20 0114-014415 Nut 3
21 0114-014201 Washer 3
22 0114-014570 Stud bolt 3

Zestaw naprawczy

D 0114-014649 Seal kit
R 0114-014730 Repair kit (mixed packing)
R 0114-016002 Repair kit (Packing PTFE)


Wearing part V

pasek

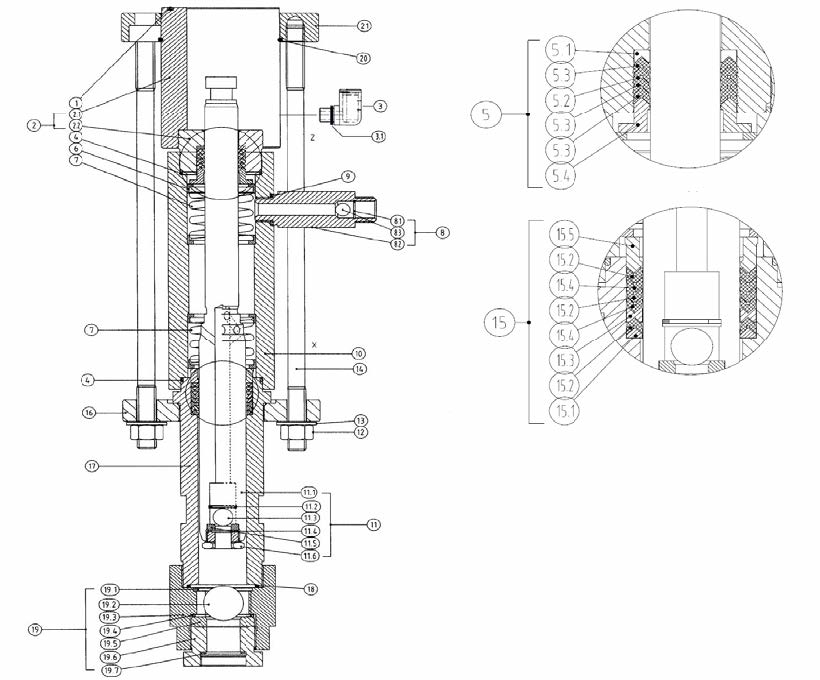

Pompa MP115/120 Use with HP 20/66

binks części

Ref. Part no. Description Qty Kit
1 0114-014005 O-ring 1 D / R
2 0114-013918 Intermediate structure, compl. 1
3 0114-016101 Sight glass with lid 1
3,1 0114-016102 O-ring 1
4 0114-013828 Seal 2 D / R
5 0114-013680 Packing, upper, PTFE/Leather V 1 R
opt. 0114-016008 Packing, upper, PTFE V 1 R
opt. 0114-016291 Packing, upper, PTFE (glassfilled/graphite)/Leather V 1
opt. 0114-016077 Packing, upper, PTFE (glassfilled/graphite) V 1
6 0114-013915 Sleeve 4
7 0114-014030 Compression spring 2
8 0114-013536 Check valve compl. 1
9 0114-014202 Cu-Seal 1 D / R
10 0114-013914 Spring housing 1
11 0114-013909 Double piston compl. 1
11,1 0114-013908 Double piston V 1
11,2 0114-014144 Ball stop 1
11,3 0114-014237 Ball 15mm V 1 R
11,4 0114-013910 Cu-Seal 1 D / R
11,5 0114-014146 Valve plate V 1
11,6 0114-013913 Screw 1
12 0114-014207 Nut 4
13 0114-014158 Washer 4
14 0114-013907 Stud bolt 4
15 0114-013677 Packing, upper, PTFE/Leather V 1 R
opt. 0114-016009 Packing, upper, PTFE V 1 R
Ref. Part no. Description Qty Kit
opt. 0114-016292 Packing, upper, PTFE (glassfilled/graphite)/Leather V 1
opt. 0114-016078 Packing, upper, PTFE (glassfilled/graphite) V 1
16 0114-014233 Flange 1
17 0114-014234 Pressure cylinder 1
18 0114-013843 Seal 1 D / R
19 0014-013592 Foot valve compl. 1
19,1 0114-013676 Ball stop 1
19,2 0114-014079 Ball 30 mm V 1 R
19,3 0114-013911 Valve housing 1 D / R
19,4 0114-013912 Seal 1 D / R
19,5 0114-014143 Valve plate V 1
19,6 0114-013904 Screw 1
19,7 0114-013838 Seal 1
20 0114-020015 Round wire snap ring 1
21 0114-019936 Flange 1

Zestaw naprawczy

D 0114-013570 Seal kit
R 0114-013575 Repair kit (mixed packing)
R 0114-016010 Repair kit (Packing PTFE)


Wearing part V

pasek

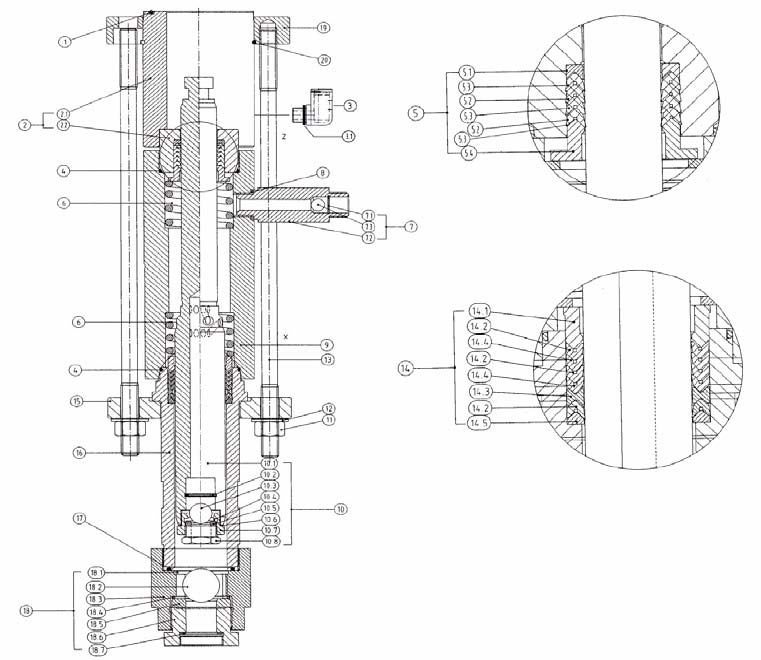

Pompa MP150/120 Use with HP 25/48

części binks

Ref. Part no. Description Qty Kit
1 0114-014005 O-ring 1 D / R
2 0114-013922 Intermediate structure, compl. 1
3 0114-016101 Sight glass with lid 1
3,1 0114-016102 O-ring 1
4 0114-013929 Seal 2 D / R
5 0114-013692 Packing, upper, PTFE/Leather V 1 R
opt. 0114-016011 Packing, upper, PTFE V 1 R
opt. 0114-016295 Packing, upper, PTFE (glassfilled/graphite)/Leather V 1
opt. 0114-016293 Packing, upper, PTFE (glassfilled/graphite) V 1
6 0114-014147 Compression spring V 2
7 0114-013536 Check valve compl. V 1
8 0114-014202 Cu-Seal 1 D / R
9 0114-013693 Spring housing 1
10 0114-020351 Double piston compl. V 1
10,1 0114-013931 Double piston 1
10,2 0114-014148 Ball stop 1
10,3 0114-014025 Ball 1 R
10,4 0114-013935 Seal 1 D / R
10,5 0114-014077 Valve plate 1
10,6 0114-013827 Cu-Seal 1 D / R
10,7 0114-013932 Valve housing-Piston 1
10,8 0114-013933 Screw 1
11 0114-014207 Nut 4
12 0114-014158 Washer 4
13 0114-013907 Stud bolt old 4
Ref. Part no. Description Qty Kit
13,1 0114-013907-1 Stud bolt new 4
14 0114-013694 Packing, upper, PTFE/Leather V 1 R
opt. 0114-016012 Packing, upper, PTFE V 1 R
opt. 0114-016296 Packing, upper, PTFE (glassfilled/graphite)/Leather V 1
opt. 0114-016294 Packing, upper, PTFE (glassfilled/graphite) V 1
15 0114-014233 Locking ring 1
16 0114-013930 Pressure cylinder 1
17 0114-013843 Seal 1 D / R
18 0014-013592 Foot valve compl. V 1
18,1 0114-013676 Ball stop 1
18,2 0114-014079 Ball 1 R
18,3 0114-013911 Valve housing 1
18,4 0114-013838 Seal 1 D / R
18,5 0114-014143 Valve plate 1
18,6 0114-013904 Screw 1
18,7 0114-013838 Seal 1 D / R
19 0114-019936 Flange 1
20 0114-020015 Round wire snap ring 1





pistolety ręczne BINKS pistolety automatyczne BINKS Akcesoria BINKS

BINKS AA4400M BINKS AA4400A FILTRY KARTONOWE ECO BINKS
BINKS A3500 i 7500 PITBULL BINKS MAG AA - AirCombi FILTRY KARTONOWE SPRAYBOOTH BINKS
BINKS Airless A75 BINKS 460 Zbiorniki ciśnieniowe BINKS
BINKS AA4000 AirCombi BINKS 550 ZESTAWY BINKS
AIRLESS 1 BINKS AG 363 series BINKS Akcesoria i produkty BHP
BINKS HAP 50 Airless   Siłowniki i Wyciskarki BINKS
BINKS MACH-1PCX   Elektroniczy system mieszający 2K - BINKS
BINKS-2001VT   Wyposażenie do systemów cyrkulacji farb BINKS
BINKS-2100VT   Pompy SMART BINKS
    Pompy transferowe BINKS
    Akcesoria do pomp MX BINKS

  Pompy Maple BINKS
  części do urządzeń BINKS

Dystrybucja urządzeń lakierniczych firmy BINKS



binks logo fb-carlisle
