BINKS SuperEfficiency Spraybooth Filter


filtr kartonowy szary

Binks SuperEfficiency Spraybooth Filter

filtr kartonowy do ściany lakierniczej
Filtry kartonowe BINKS, ATRAKCYJNE ceny, DETAL i HURT

+48 500 515 930
Filtry kartonowe do lakierni

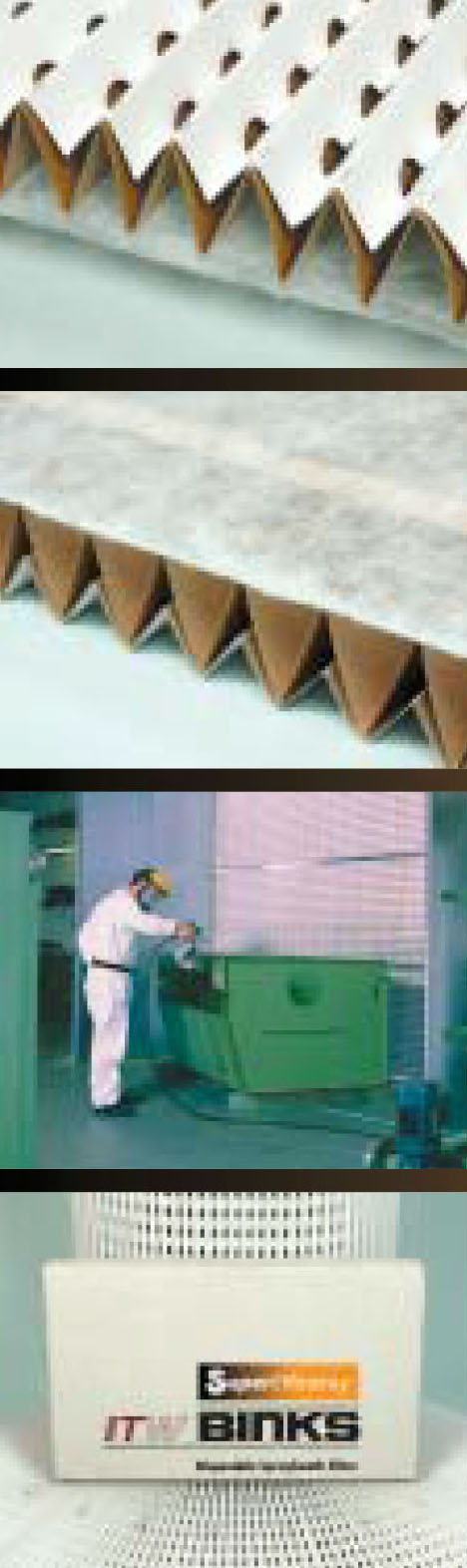

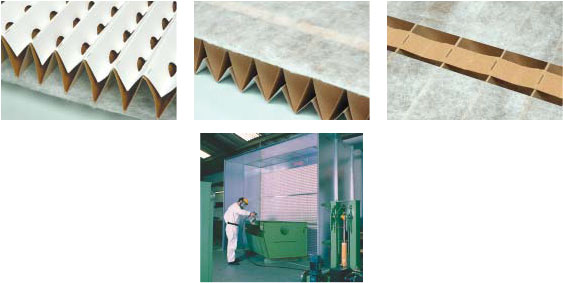

Binks have been producing the Best Spray Booth Filters for over 30 years in our own factory in Scotland. Now, following exhaustive field trials and evaluations we are proud to introduce our NEW SUPER FILTER. Binks Super Filter is constructed from two sheets of heavy duty card board paper and formed into double “accordion” type folds, stapled, glued and backed with a high efficiency polyester media, which dramatically increases the filter efficiency and “loading capacity”.

filtry-kartonowe-szare Super Filter – outlasts other filters
Four Face Filter Technique PLUS additional “Final Stage” polyester filter
Superior Construction – Glued & Stapled
Over 99% filtration efficiency – super filter removes very fine overspray particles
High Loading Capacity – Longer Working Life – low pressure drop
Fits ALL types of dry filter Spray Booths
Expansion strapping – ensures correct spacing of filter corrugations
Moisture resistant and Self Supporting
Concertina design – reduces storage and transportation costs.

HIGH VOLUME FLOW RATES
The large air openings in the filter allow high volumes of air to be exhausted without loss of efficiency as the media ‘loads’, resulting in a much longer life than other filter systems.

filtr szary kartonowy

SUPERIOR UNIQUE DESIGN
Binks super efficiency spraybooth filters are gluedand stapled together during the manufacturing process and an expansion strap on the rear is provided to ensure correct spacing of 8 corrugations to every running foot (30.4cm). This guarantees optimum and superior filtering performance.

Part No Surface Area Filter Size Per Box Weight Per Box
20 72 29 SEF 5.4 SQ MTRS H90 X L600CM 8.05 KG (INC. BOX)
20 79 02 SEF 8 SQ MTRS H100 X L800CM 10.26 KG (INC. BOX)

TECHNICAL SPECIFICATION

Filter Construction SELF SUPPORTING, 2 PLY HIGH STRENGTH CARDBOARD PAPER,  BRIGHT WHITE FINISH
Air Flow Rates 0.5-1.0 METRES PER SECOND (100-200 FEET PER MINUTE) NORMAL 0.7 M/S (140 FPM)
Pressure Differential INITIAL @ 0.75 M/S = 30 PA (0.12” SWG) MAXIMUM 130-250 PA (0.52”-1.0” SWG)
Temperature Range MAXIMUM 100ºC
Expansion Limiter EXPANSION LIMITING STRAPS ENSURE CORRECT PLEAT
(Guarantees optimum performance) DENSITY OF 8 CORRUGATIONS PER RUNNING FOOT (30.4CM)
