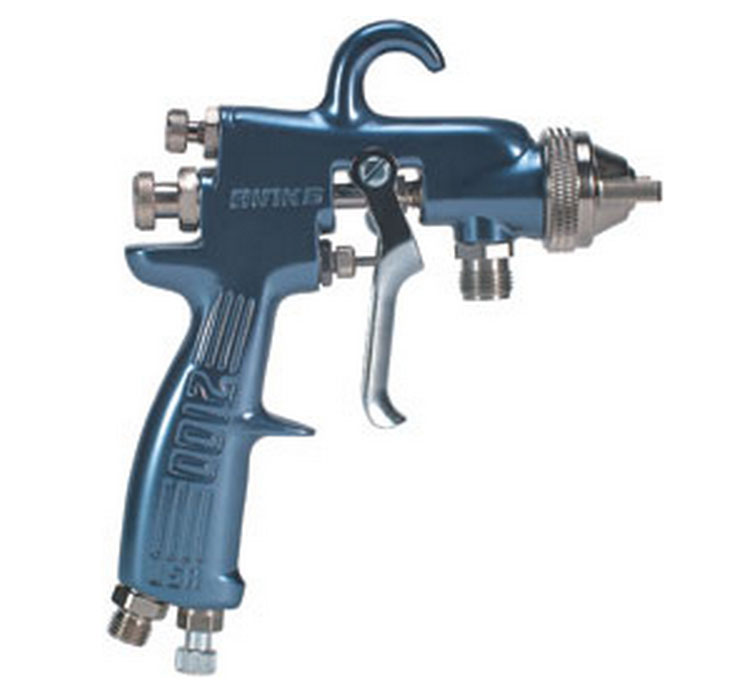

BINKS Pistolet ręczny Binks 2100VT


binks vt pistolet binks

Your new Binks spray gun is exceptionally rugged in construction, and is built to stand
up under hard, continuous use. However, like any other fine precision instrument, its most efficient operation depends on a knowledge of its construction, operation, and maintenance. Properly handled and cared for, it will produce beautiful, uniform finishing results long after other spray guns have worn out.

pasek

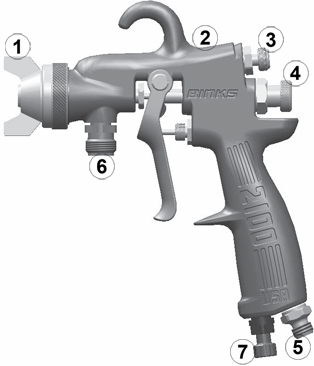

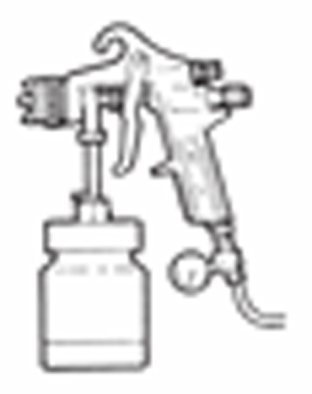

2100-vt-binks 1. Air Nozzle Assembly
2. Gun Body
3. Side Port Control
4. Fluid Control Knob
5. Air Connection 1/4" NPS (m)
6. Fluid Connection 3/8" NPS (m)
7. Air Adjusting Valve


TYPES OF INSTALLATION


2100VT - instalacja

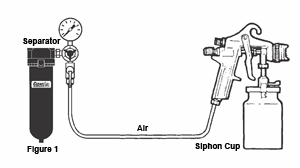

SIPHON FEED CUP HOOKUP
Air pressure for atomization is regulated at
extractor. The amount of fluid is adjusted by
fluid control screw on gun, viscosity of paint,
and air pressure (see figure 1).

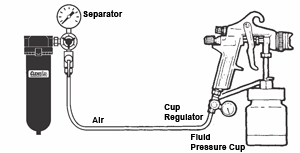

2100VT - instalacja   PRESSURE FEED CUP HOOKUP
For fine finishing with limited spraying. Air pressure for atomization is regulated at extractor; fluid pressure at cup regulator. For heavy fluids and internal mix nozzle spraying, fluid adjusted by control screw on gun. Pressure cup also available less regulator (see figure 2).

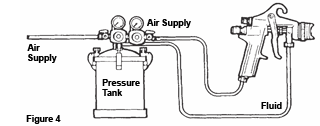

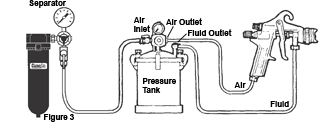

2100VT - instalacja   PRESSURE FEED TANK HOOKUP
For medium production spraying (single regulator). Air pressure for atomization is regulated at extractor, fluid pressure at tank regulator (see figure 3).
2100VT - instalacja   PRESSURE FEED TANK HOOKUP
For portable painting operations (double regulator). Air pressure for atomization and fluid supply is regulated by two individual air regulators on tank (see figure 4).

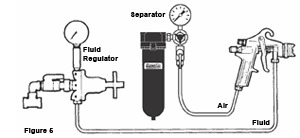

2100VT - instalacja   PRESSURE FEED CIRCULATING HOOKUP
For heavy production spraying. Air pressure atomization regulated at extractor. Fluid pressure regulated at fluid regulator (see figure 5).

pasek

warning-binks-instruction-2100VT

warning binks READ THE MANUAL Before operating finishingequipment, read and understand all safety, operation and maintenance information provided in the operation manual. binks warning INSPECT THE EQUIPMENT DAILY Inspect the equipment for worn or broken partson a daily basis. Do not operate the equipment if you are uncertain about its condition.
warning Binks WEAR SAFETY GLASSES Failure to wear safety glasses with side shields could result in serious eye injury or blindness. binks warning NEVER MODIFY THE EQUIPMENT Do not modify the equipment unless the manufacturer provides written approval.
warning binks DE-ENERGIZE, DEPRESSURIZE, DISCONNECT AND LOCK OUT ALL POWER SOURCES DURING MAINTENANCE Failure to De-energize, disconnect and lock out all power supplies before performing equipment maintenance could cause serious injury or death. binks warning

KNOW WHERE AND HOW TO SHUT OFF THE EQUIPMENT IN CASE OF AN EMERGENCY

warning binks OPERATOR TRAINING All personnel must be trained before operating finishing equipment. binks warning PRESSURE RELIEF PROCEDURE Always follow the pressure relief procedure in the equipment instruction manual.
binks warning EQUIPMENT MISUSE HAZARD Equipment misuse can cause the equipment to rupture, malfunction, or start unexpectedly and result in serious injury. binks warning NOISE HAZARD You may be injured by loud noise. Hearing protection may be required when using this equipment.
warning Binks KEEP EQUIPMENT GUARDS IN PLACE Do not operate the equipment if the safety devices have been removed. binks warning STATIC CHARGE Fluid may develop a static charge that must be dissipated through proper grounding of the equipment, objects to be sprayed and all other electrically conductive objects in the dispensing area. Improper grounding or sparks can cause a hazardous condition and result in fire, explosion or electric shock and other serious injury.
binks warning PROJECTILE HAZARD You may be injured by venting liquids or gases that are released under pressure, or flying debris. binks warning FIRE AND EXPLOSION HAZARD Never use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or fluids containing such solvents in equipment with aluminum wetted parts. Such use could result in a serious chemical reaction, with the possibility of explosion. Consult your fluid suppliers to ensure that the fluids being used are compatible with aluminum parts.
binks warning PINCH POINT HAZARD Moving parts can crush and cut. Pinch points are basically any areas where there are moving parts. binks warning TOXIC FLUID & FUMES Hazardous fluid or toxic fumes can cause serious injury or death if splashed in the eyes or on the skin, inhaled, injected or swallowed. LEARN and KNOW the specific hazards of the fluids you are using.
warning binks AUTOMATIC EQUIPMENT Automatic equipment may start suddenly without warning. binks warning WEAR RESPIRATOR Toxic fumes can cause serious injury or death if inhaled. Wear a respirator as recommended by the fluid and solvent manufacturer’s Material Safety Data Sheet.

AIR PRESSURE
Atomizing pressure must be set properly to allow for the drop in air pressure between the regulator and the spray gun.

With 60 psi applied at air supply
Cross section view showing comparison of inside hose diameters (actual size). 60 lbs. regulated pressure
wąż binks5/16” wąż binks1/4”


binks-vt Only 34 PSI at gun inlet 25 feet of 1/4” I.D. hose causes a drop of 26 PSI between the air supply and the gun.(NOT RECOMMENDED)
binks-vt 48 PSI at gun inlet 25 feet of 5/16” I.D. hose causes a drop of 12 PSI between the air supply and the gun. For this reason Binks recommends the use of 5/16” hose.(RECOMMENDED)

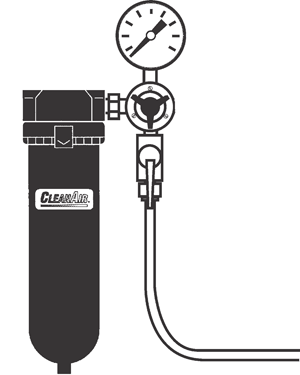

Devilbiss OIL and WATER separator is important
Achieving a fine spray finish without the use of a good oil and water extractor is virtually impossible. A DeVilbiss regulator / separator serves a double purpose. It eliminates blistering and spotting by keeping air free of oil and water, and it gives precise air pressure control at the gun. Binks recommends using Model HFRL-508 Oil and Water Separator / Regulator. See your local distributor for other models. regulator-2100vt

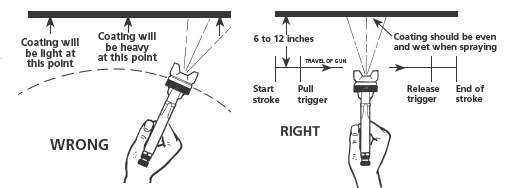

Gun Handling

2100vt-binks-gun-handling

NOTE
To reduce overspray and obtain maximum efficiency, always spray with the lowest possible atomizing air pressure.

The first requirement for a good resultant finish is the proper handling of the gun. The gun should be held perpendicular to the surface being covered and moved parallel with it. The stroke should be started before the trigger is pulled and the trigger should be released before the stroke is ended. This gives accurate control of the gun and material. The distance between gun and surface should be 6 to 12 inches depending on material and atomizing pressure. The material deposited should always be even and wet. Lap each stroke over the preceding stroke to obtain a uniform finish.

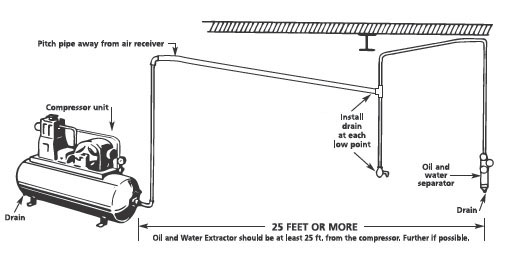

Air Supply
Air Flow CFM Length of Pipe (feet)
  50 100 150 200
10 1/2" 3/4" 3/4"
20 3/4" 3/4" 3/4" 3/4"
30 3/4" 3/4" 1" 1"
40 1" 1" 1" 1"
50 1" 1" 1" 1"
70 1" 1" 1-1/4" 1-1/4"

It is extremely poor practice to mount the oil and water extractor on or even near the compressor unit. The temperature of the air is greatly increased as it passes through the compressor and this compressed air must be cooled before the moisture in it will condense. If the air from the compressor is still warm when it passes through the oil and water extractor, moisture will not be effectively removed, but will remain in suspension. Then, when the air cools in the hose beyond the extractor, the moisture will condense into drops of water and cause trouble. Air lines must be properly drained Pitch all air lines back towards the compressor so that condensed moisture will flow back into the air receiver where it can be removed by opening a drain. Every low point on an air line acts as a water trap. Such points should be fitted with an easily accessible drain. See diagram.

2100VT install

2100VT-głowica

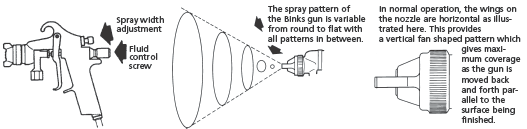

Spray width adjustment: Turn clockwise for round, counterclockwise for fan. Fluid control screw: Turn clockwise to decrease flow, counterclockwise to increase flow. As width of spray is increased, more material must be allowed to pass through the gun to obtain the same coverage on the increased area.

SIPHON SPRAYING Set atomization pressure at approximately 50 PSI for lacquer and 60 PSI for enamel. Test spray. If the spray is too fine, reduce the air pressure or open fluid control screw. If the spray is too coarse, close the fluid control screw. Adjust the pattern width and repeat adjustment of spray if necessary.

PRESSURE SPRAYING After selecting correct size fluid orifice, set fluid pressure for desired flow. Open atomization air and test spray. If spray is too fine, reduce air pressure. If spray is too coarse, raise air pressure. Adjust pattern width and repeat adjustment of spray. Keeping fluid control screw in open position will reduce fluid needle wear.


Faulty patterns and How to corect them

PATTERN CAUSE CORRECTION
pattern-2100VT Dried material in side-port “A” restricts passage of air. Greater flow of air from cleaner side-port “B” forces fan pattern in direction of clogged side. głowica 2100VT Dissolve material in side-ports with thinner, then blow gun clean. Do not poke into openings with metal instruments.
pattern-2100VT Dried material around the outside of the fluid nozzle tip at position “C” restricts the passage of atomizing air at one point through the center opening of air nozzle and results in pattern shown. This pattern can also be caused by a loose air nozzle. głowica 2100VT Remove air nozzle and wipe off fluid tip using rag wet with thinner. Tighten air nozzle.
pattern-2100VT A split spray or one that is heavy on each end of a fan pattern and weak in the middle is usually caused by:
(1) Too high an atomization air pressure
(2) Attempting to get too wide a spray pattern with thin material.
Reducing air pressure will correct cause (1). To correct cause
(2), open material control to full position by turning to left. At the same time, turn spray width adjustment to right. This will reduce width of spray, but will correct split spray pattern.
pattern-2100VT (1) Dried out packing around material needle valve permits air to get into fluid passageway. This results in spitting.
(2) Dirt between fluid nozzle seat and body or loosely installed fluid nozzle will make gun spit.
(3) A loose or defective swivel nut on siphon cup or material hose can cause spitting.

głowica 2100VT

To correct cause (1) back up knurled nut (E), place two drops of machine oil on packing, replace nut and tighten with fingers only. In aggravated cases, replace packing. To correct cause (2), remove fluid nozzle (F), clean back of nozzle and nozzle seat in gun body using rag wet with thinner, replace
nozzle and draw up tightly against body.
To correct cause (3), tighten or replace
swivel nut.

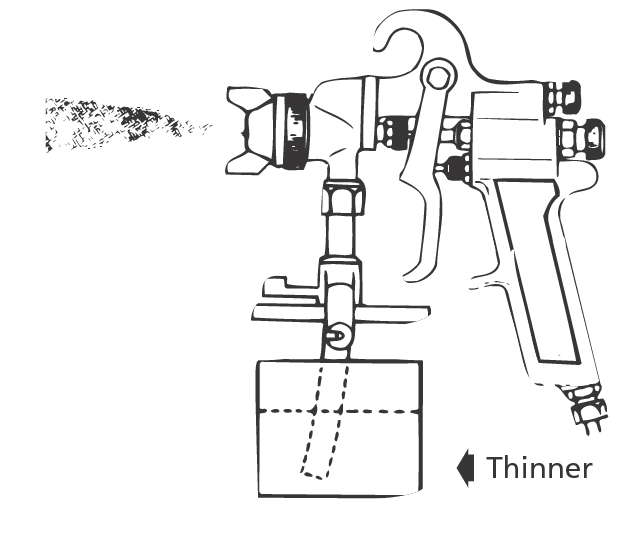

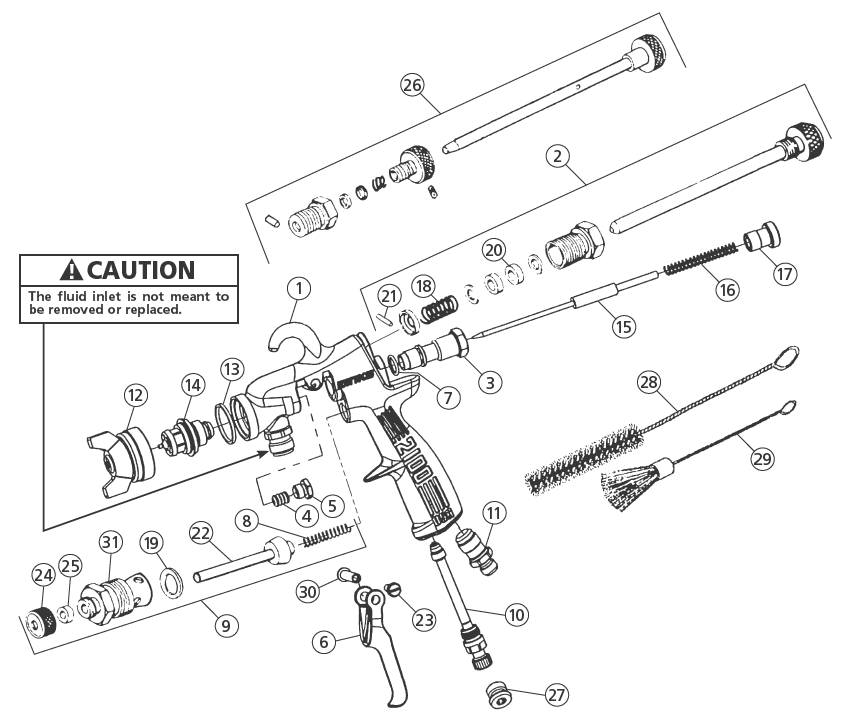

Binks Model 2100 SIPHON Spray Gun – Pointers on Cleaning

2100-siphon-model


When used with a cup, thinner or suitable solvent should be siphoned through gun by inserting tube in open container of that liquid. Move trigger constantly to thoroughly flush passageway and to clean tip of needle.

Cleaning Gun Used With Presure Tank

Shut off the air supply to the tank and release the pressure on the tank. Open vent and loosen air nozzle. Hold a piece of cloth, wadded in the hand over the air nozzle and pull the trigger, the air will back up through the fluid nozzle, and force the fluid out of the hose into the tank. Next put enough thinner into the tank to wash the hose and gun thoroughly and spray this through the gun until it is clean. Then blow out the fluid hose to dry it and remove all traces of materials by attaching it to the air line.

Thiner

Keep thinner level below packing. It is extremely poor practice to place an entire gun in thinner. When this is done, the solvent dissolves the oil in the leather packing and causes the gun to spit. It is good practice to place the nozzle and fluid connection in thinner. Vessel used should be shallow enough to prevent thinner from reaching packing.

Lubrication

Daily oil fluid needle packing, air valve packing, and trigger bearing screw. Occasionally coat needle valve spring with petroleum jelly. OIL ALL WORKING PARTS EVERY DAY.

CONTROLLING THE FAN SPRAY:

The fan spray for an external mix nozzle setup is easily controlled by means of the side port control (2). Turning this control to the right, or clockwise, until it is closed will give a round spray; turning it to the left, or counter-clockwise, will widen the spray into a fan shape of any width desired. The direction of the fan spray, either horizontal or vertical, is obtained by turning the air nozzle to the desired position, then tightening the retainer ring.

CONTROLLING THE FLUID

If a fluid pressure tank is used, the amount of fluid can be controlled by regulating the pressure on the tank. The amount of fluid can also be controlled by means of the fluid control screw (17). Turning this screw to the right, or clockwise, reduces the amount of fluid; to the left, or counter-clockwise, increases the amount of fluid.

FAULTY SPRAY

A faulty spray is caused by improper cleaning or dried material around the fluid nozzle tip or in the air nozzle. Soak these parts in a solvent that will soften the dried material and remove with a brush or cloth. If either the air nozzle or fluid nozzle is damaged, the part must be replaced before a perfect spray can be obtained.


TO REPLACE THE FLUID PACKING

Remove the fluid control screw (17), spring (16) and needle. Then remove the fluid packing nut (5) and take out the old packings with a small stiff wire. Replace with new packings (4) oiled lightly and assemble in reverse order. To set packing, insert needle, tighten nut until the needle begins to be too stiff for the spring to move the needle. Then loosen nut 1/2 to 3/4 turn.


CORRECTING AIR LEAK THROUGH GUN

Air leaking through the gun is caused by the valve stem assembly (22), not seating properly against the valve body (31). Remove the valve body (31) and valve stem assembly (22). Thoroughly clean parts and inspect for damage. Replace worn or damaged parts and assemble in reverse order.


CORRECTING AIR LEAK AROUND AIR VALVE STEM

Air leaking around the air valve stem (22) may be caused by worn packings (25) or damaged air valve stem (22). Remove trigger (6), packing nut (24) and packings (25). Clean extended portion of air valve stem (22) and inspect for damage; if stem is damaged, replace same as above, insert new packings and assemble in reverse order.

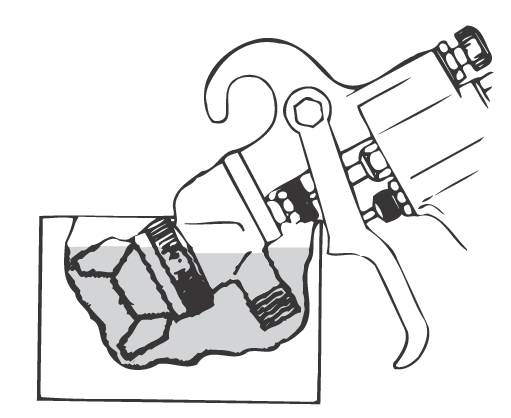

2100VT-pojemnik-z-wodą
Keep thinner level below packing

Caution
Never use metal instruments to clean the air or fluid nozzles. These parts are carefully machined and any damage to them will cause a faulty spray.

Binks Model 2100 Spray Gun – General Maintenance


SPRAY GUN
1. Immerse only the front end of the gun until solvent just covers the fluid connection.
2. Use a bristle brush and solvent to wash off accumulated paint.
3. Do not submerge the entire spray gun in solvent because: a. the lubricant on the packings will dissolve and the packings will dry out.
b. the lubricant at wear surfaces will dissolve causing harder operation and faster wear.
c. residue from dirty solvent may clog the narrow air passages in the gun.
4. Wipe down the outside of the gun with solvent-dampened rag.
5. Lubricate gun daily. Use a light machine oil on:
a. fluid needle packing.
b. air valve packing.
c. side port control packing.
d. trigger pivot point.
Coat the fluid control spring with vaseline.

AIR NOZZLE, FLUID NOZZLE, FLUID NEEDLE
1. All nozzles and needles are precision made. They should be handled with care.
2. Do not make any alterations in the gun. To do so could cause finishing difficulties.
3. To clean nozzles, soak them in solvent to dissolve any dried material, then blow them clean with air.
4. Do not probe any of the holes in the nozzles with metal instruments. If probing is necessary, use only a tool that is softer than brass.


Caution
Never use lubricants contaning silicone. This material may cause finish defects.

NOTE
All parts on a spray gun should be screwed in hand tight at first; this will avoid the possibility of cross threading the parts. If the parts can not be turned by hand easily, make sure you have the correct parts, unscrew, realign, and try again. NEVER use undue force in mating parts.

Caution

AIR NOZZLE, FLUID NOZZLE, FLUID NEEDLE
1. All nozzles and needles are precision made. They should be handled with care.
2. Do not make any alterations in the gun. To do so could cause finishing difficulties.
3. To clean nozzles, soak them in solvent to dissolve any dried material, then blow them clean with air.
4. Do not probe any of the holes in the nozzles with metal instruments. If probing is necessary, use only a tool that is softer than brass.


Nozzle Selection

A. Material to Be Sprayed Select the type of fluid you want to spray or a fluid which has the same characteristics as one of those listed.
B. Method of Feeding Material to the Gun Fluid Nozzle-Consider the speed of application and the viscosity of the fluid to be sprayed. Referring to the Fluid Nozzle Orifice Size Chart, those fluid nozzles which can be changed within an air nozzle are indicated. Air Nozzle-Choice is determined by the type of fluid to be sprayed and the volume of air available for the gun.
-External Mix Nozzles, which are generally used, accomplish atomization outside the nozzle. Spray patterns are adjustable from round to fan with all intermediate patterns. (Designated by the letter “E”). Siphon Type External Mix Nozzles, designated by the letter “S”, will siphon the material from a cup. Used generally for refinishing and touch-up work which does not require large quantities of paint. Pressure Type External Mix Nozzles, designated by the letter “P”, require pressure to feed the material to the nozzle. A pressure cup, pressure tank or pump is necessary. Used for production work and where large quantities of fluid are handled. This type of nozzle has a greater range of fluid flow and does not limit the size of the paint container.
-Internal Mix Nozzles mix the air and fluid within the air nozzle. The spray pattern is determined by the shape of the nozzle and cannot be changed. Internal mix nozzles require less air and produce slightly less fog.
Pressure equipment must be used with this type of nozzle. Recommended for maintenance spraying of heavy materials where a fine finish is not required. (Designated by the letter “I”).
C. Volume of Air (CFM required) The cubic feet per minute (CFM) listed at 30, 50 and 70 PSI is the actual air used by the air nozzle. Increase of pressure subsequently increases volume of air required by air nozzle, or vice versa. Assume that a compressor will produce 3-5 CFM per horsepower.



NOTE

The greater the air consumption, the faster the fluid may be applied or the finer a given amount of fluid can be atomized.

Nozzle Selection Chart

TYPE OF FLUID FLUID AIR TYPE CFM AT     MAX PAT INCHES FLUID Needle No.★
TO BE SPRAYED NOZZLE NOZZLE * 30 PSI 50 PSI 70 PSI AT 8 in
VERY THIN  63SS  63P  PE  4.5  7.5  10.0  5.0  563
14–16 Sec.—No. 2 Zahn  63ASS  63P  PE  5.1  8.7  12.2  11.0  563A
Wash Primers, Dyes, Stains,  63BSS  63PB  PE  9.0  14.3  20.0  14.0  563A
Solvents, Water, Inks  66SS  66S  SE  3.4  5.0    9.0  565
   66SS  66SD  SE  7.9  12.1    10.5  565
   66SS  66SK  SE  11.0  15.2  19.5  13.0  565
   63BSS  200  PI  3.1  5.2  6.4  12.0  563A
VERY THIN TO MEDIUM  66SS  21MD-1  SE  12.0  17.3  23.0  11.0  565
14–30 Secs. — No. 2 Zahn  66SS  21MD-2  SE  15.2  22.2  29.6  11.0  565
NoTE: 21MD-1 AND 21MD-2 AIR CAPS CAN  67SS  21MD-2  SE  12.5  18.3  24.4  13.0  567
SPRAY WITH PRESSURE SET-UPS PRoDUCING  63BSS  21MD-3  PE  11.6  16.6  22.2  16.0  563A
SPRAY PATTERS APPRoX. 12” WIDE.
THIN  63ASS  63P  PE  5.1  8.7  12.2  11.0  563A
16–20 Secs. — No. 2 Zahn  66SS  66SK  SE  11.0  15.2  19.5  13.0  565
Sealers, Primers,  63BSS  200  PI  3.1  5.2  6.4  12.0  563A
Lacquers, Inks, Lubricants  63CSS    PI  3.9  5.5  7.4  9.0  563A
Zinc Chromates, Acrylics
MEDIUM  63BSS  63PB  PE  9.0  14.3  20.0  14.0  563A
19–30 Secs. — No. 2 Zahn  63CSS  63PR  PE  9.5  15.5  19.5  18.0  563A
Lacquers, Syn. Enamels  66SS  66SD  SE  7.9  12.0    11.0  565
Varnishes, Shellacs, Fillers,  66SS  66SK  SE  11.0  15.2  19.5  13.0  565
Primers, Epoxies, Urethanes  63CSS  200  PI  3.1  5.2  6.4  12.0  563A
Lubricants, Wax Emulsions  66SS    PI  3.9  5.5  7.4  9.0  565
HIGH SOLIDS
Enamels  65SS  63PR  PE  9.5  15.5  19.5  18.0  565
HEAVy (CREAM-LIKE)
over 28 Secs. — No. 4 Ford  67SS  67PB  PE  9.5  14.9  19.5  12.0  567
House Paint, Wall Paint (oil, Latex),  68SS  68PB  PE  9.5  14.1  19.1  12.0  568
Block Sealers, Mill Whites,  67SS  206  PI  6.0  9.5  13.0  15.0  567
Vinyls, Acrylics, Epoxies, Gel Coats  68SS  201  PI  4.6  6.8  9.1  11.0  568
VERY HEAVY  68SS  68PB  PE  9.5  14.1  19.1  12.0  568
Unaggregated, Block Fillers,  68SS  206  PI  6.2  9.8  13.2  15.0  568
Textured Coatings, Fire Retardants,  59ASS  242  PI  4.1  6.0  8.2  6.0  559
Road Marking Paint, Bitumastics,  59ASS  244  PI  7.8  11.5  15.2  12.0  559
Cellular Plastisols, Underbody,  59BSS  250  PI  7.3  11.0  14.7  RD  559
Roof Coatings  59BSS  252  PI  7.8  11.5  15.2  6.0  559
   59CSS  262  PI  7.3  11.0  14.7  6.0  559
ADHESIVES  63CSS  63PB  PE  9.0  14.3  20.0  14.0  563A
Waterbase  66SS  63PR  PE  9.5  15.5  19.5  15.0  565
White Vinyl Glue  67SS  67PB  PE  9.5  14.1  19.1  12.0  567
Solvent Base  63SS  66SD-3  PE  10.4  15.4  20.4  9.0  563
Neoprenes  63ASS  66SD-3  PE  10.4  15.4  20.4  9.0  563A
(Contact Cements)  63BSS  66SD-3  PE  10.4  15.4  20.4  9.0  563A
   66SS  66SD-3  PE  9.5  15.4  20.4  9.0  565
   66SS  66SDJG  PE  10.4      8.0-9.0  565
   66SS  66R  PE/SE    4.2    RD  565
   66SS  66SDJG  PE  10.4      8.0-9.0  565
   L6SS  63PH-1  PE  9.5  14.2  19.0  18.0  565
   L3BSS  63PH-1  PE  9.5  14.2  19.0  18.0  563A
CERAMICS & SIMILAR  63CVT  66PH  PE  11.5  16.4  22.0  13.0  573CVT
ABRASIVE MATERIALS  64VT  64PA  PE  12.1  15.0  21.0  13.0  574VT
Glazes, Engobes  67VT  67PD  PE  10.0  15.0  20.0  15.0  577VT
Porcelain Enamel  68VT  68PB  PE  9.5  14.1  19.1  12.0  578VT
CONCRETE CURING  66SS  200  PI  3.1  5.2  6.4  15.0  565
COMPOUNDS  67SS  206  PI  6.0  9.5  13.0  18.0  567
   68SS  206  PI  6.2  9.8  13.2  20.0  568
MULTICOLORPAINTS  66SS  200  PI  3.1  5.2    12.0  565
   67SS  206  PI  6.0  9.5    15.0  567
PTFE  63ASS  63PB  PE  9.0  14.3  20.0  10.0  563A
   63BSS  63PR  PE  9.5  15.5  19.5  15.0  563A
   66SS  66SD  SE  7.9  12.1    7.0  565
HAMMERS  63CSS  63PB  PE  9.0  14.3    14.0  563A
   66SS  63PB  PE  9.0  14.3    14.0  565
   66SS  66SD  SE  7.9  12.1    7.0  565
WRINKLE ENAMELS  63CSS  63PB  PE  9.0  14.3  20.0  10.0  563A
   66SS  63PB  PE  9.0  14.3  20.0  10.0  565
ZINC RICH COATINGS  67VT  67PB  PE  9.5  14.1  19.1  12.0  577VT

FLUID NOZZLE ORIFICE SIZES

 59ASS  59BSS  59CSS  63SS  63ASS  63BSS  63CSS  63CVT  64VT  65SS  66SS  67SS  67VT  68SS  68VT  794
 .171  .218  .281  .028  .040  .046  .052  .052  .064  .059  .070  .086  .086  .110  .110  .040


color blue = +

All air nozzles shown in combination with these (+) fluid nozzles can also be used in combination with any other fluid nozzle marked (+)
*See text Section B, page 6, for type code. ★All standard needles listed are stainless steel.


Binks Model 2100 SIPHON Spray Gun

2100VT-siphon

Parts List
When ordering, please specify Part No.

Item NO PART NO DESCRIPTION QTY.
1 2100 gun body 1
2 54-3347 side port control asembly 1
3 54-1013 material body 1
4 2-28-5❍+★ teflon packing 1
5 56-164 packing nut 1
6 54-5458 2100 triger 1
7 20-5285-5❍+ o-ring viton 1
8 54-750-5❍+ spring 1
9 54-1236 air valve asembly 1
10 SGK-457 air adjustment valve 1
11 54-768 air connection 1
12 *se footnote air nozzle 1
13 54-918-5❍+ gasket 1
14 *se footnote fluid nozzle 1
15 54-1347-5❍+  nedle 1
16 54-1347-5❍+ spring 1
17 54-1007 control screw 1
18 54-304-5❍+ spring 1
19 20-3757+ o-ring 1
20 54-738-5❍+ packing 1
21 54-1014-5❍+ pin 1
22 54-1025+ valve stem asembly 1
23 82-126-5❍ screw 1
24 82-135-5❍ nut 1
25 82-158-5❍+ packing 1
26 54-1780• quick change sideport control (optional) 1
27 jga-132• plug ( optional) 1
28 82-469 round brush 1
29 omx-88 flat flat brush 1
30 54-1020 STUD 1
31 54-1010 VALVE BODY 1

❍ Available only as 5-Pack.
+ Indicates parts in 6-229 Repair Kit.
★ Alternate needle packing (optional) 54-747-5.
• Accessory item.
* Be sure to specify number stamped on air nozzle and fluid nozzle, or see Nozzle
Selection Chart.

FLUID NOzzLE DESIGNATION # PART NUMBER FOR FLUID ORIFICE INCHES ORIFICE MM MODEL 2100 GUN NEEDLE DESIGNATION NEEDLE PART NUMBER
 63SS  45-6301  0.028  0.8  563  47-56300
 63ASS  45-6311  0.040  1.1  563A  47-56310
 63BSS  45-6321  0.046  1.2  563A  47-56310
 L3BSS  45-6329  0.046  1.2  563A  47-56310
 63CSS  45-6331  0.052  1.3  563A  47-56310
 63CVT  45-6332  0.052  1.3  573CVT  47-56302
 64VT  45-6402  0.064  1.6  574VT  47-56302
 65SS  45-6501  0.059  1.6  565  47-56500
 66SS  45-6601  0.070  1.8  565  47-56500
 66XSS (Extrusion)  45-6608  0.040  1.1  565  47-56500
 L6SS  45-6605  0.070  1.8  565  47-56500
 67SS  45-6701  0.086  2.2  567  47-56700
 67VT  45-6702  0.086  2.2  577VT  47-56702
 68SS  45-6801  0.110  2.8  568  47-56800
 68VT  45-6802  0.110  2.8  578VT  47-56802
 59ASS  45-5911  0.171  4.3  559  47-55900
 59BSS  45-5912  0.218  5.5  559  47-55900
 59CSS  45-5913  0.218  7.1  559  47-55900

AIR NOzzLE (AIR CAP) DESIGNATION # PART NUMBER
 21MD-1  46-21MD-1
 21MD-2  46-21MD-2
 21MD-3  46-21MD-3
 63P  46-6000
 63PB  46-6002
 63PH-1  46-6061
 63PR  46-6079
 63PW  46-6091
 64PA  46-6007
 66PD  46-6013
 66PE  46-6014
 66PH  46-6016
 66R  46-6041
 66S  46-6018
 66SD  46-6020
 66SK  46-6082
 66SD-3  46-6092
 66SDJG  46-6103
 67PB  46-6026
 67PD  46-6028
 68PB  46-6032

2100 Gun Asembly Ordering Information

 2100-0000-0  2100 GUN ASSEMBLY
 2100-2500-0  2100 GUN 63ASS-L / AIR NoZZLE
 2100-2800-0  2100 GUN 63BSS-L / AIR NoZZLE
 2100-2800-7  2100 GUN 63BSS-63PB (P)
 2100-2808-2  2100 GUN 63BSS-66D-3
 2100-2821-3  2100 GUN 63BSS-21MD-3 (P)
 2100-3100-0  2100 GUN 63CSS-L / AIR NoZZLE
 2100-3300-0  2100 GUN 63SS-L / AIR NoZZLE
 2100-3600-0  2100 GUN 64VT-L / AIR NoZZLE
 2100-4100-0  2100 GUN 6XSS-EXTRUSIoN
 2100-4300-0  2100 GUN 66SS-L / AIR NoZZLE
 2100-4307-5  2100 GUN 66SS-66S (S)
 2100-4307-9  2100 GUN 66SS-66SD (S)
 2100-4308-2  2100 GUN 66SS-66SD-3
 2100-4308-8  2100 GUN 66SS-66SK (S)
 2100-4314-9  2100 GUN 66SS-200 AIR CAP
 2100-4321-1  2100 GUN 66SS-21MD-1 (S)
 2100-4321-2  2100 GUN 66SS-21MD-2 (S)
 2100-4800-0  2100 GUN 67SS-L / AIR NoZZLE
 2100-4900-0  2100 GUN 67VT-L / AIR NoZZLE
 2100-4909-5  2100 GUN 67VT-67PB (P)
 2100-5100-0  2100 GUN 68SS-L / AIR NoZZLE
 2100-5111-5  2100 GUN 68SS-68PB (P)
 2100-5200-0  2100 GUN 68VT-L / AIR NoZZLE
 2100-8000-0  2100 GUN 59ASS-L / AIR NoZZLE
 2100-8100-0  2100 GUN 59BSS-L / AIR NoZZLE
 2100-8200-0  2100 GUN 59CSS-L / AIR NoZZLE
 2100-9300-0  2100 GUN L3BSS-L / AIR NoZZLE





pistolety ręczne BINKS pistolety automatyczne BINKS Akcesoria BINKS

BINKS AA4400M BINKS AA4400A FILTRY KARTONOWE ECO BINKS
BINKS A3500 i 7500 PITBULL BINKS MAG AA - AirCombi FILTRY KARTONOWE SPRAYBOOTH BINKS
BINKS Airless A75 BINKS 460 Zbiorniki ciśnieniowe BINKS
BINKS AA4000 AirCombi BINKS 550 ZESTAWY BINKS
AIRLESS 1 BINKS AG 363 series BINKS Akcesoria i produkty BHP
BINKS HAP 50 Airless   Siłowniki i Wyciskarki BINKS
BINKS MACH-1PCX   Elektroniczy system mieszający 2K - BINKS
BINKS-2001VT   Wyposażenie do systemów cyrkulacji farb BINKS
BINKS-2100VT   Pompy SMART BINKS
    Pompy transferowe BINKS
    Akcesoria do pomp MX BINKS

  Pompy Maple BINKS
  części do urządzeń BINKS

Dystrybucja urządzeń lakierniczych firmy BINKS



binks logo fb-carlisle
